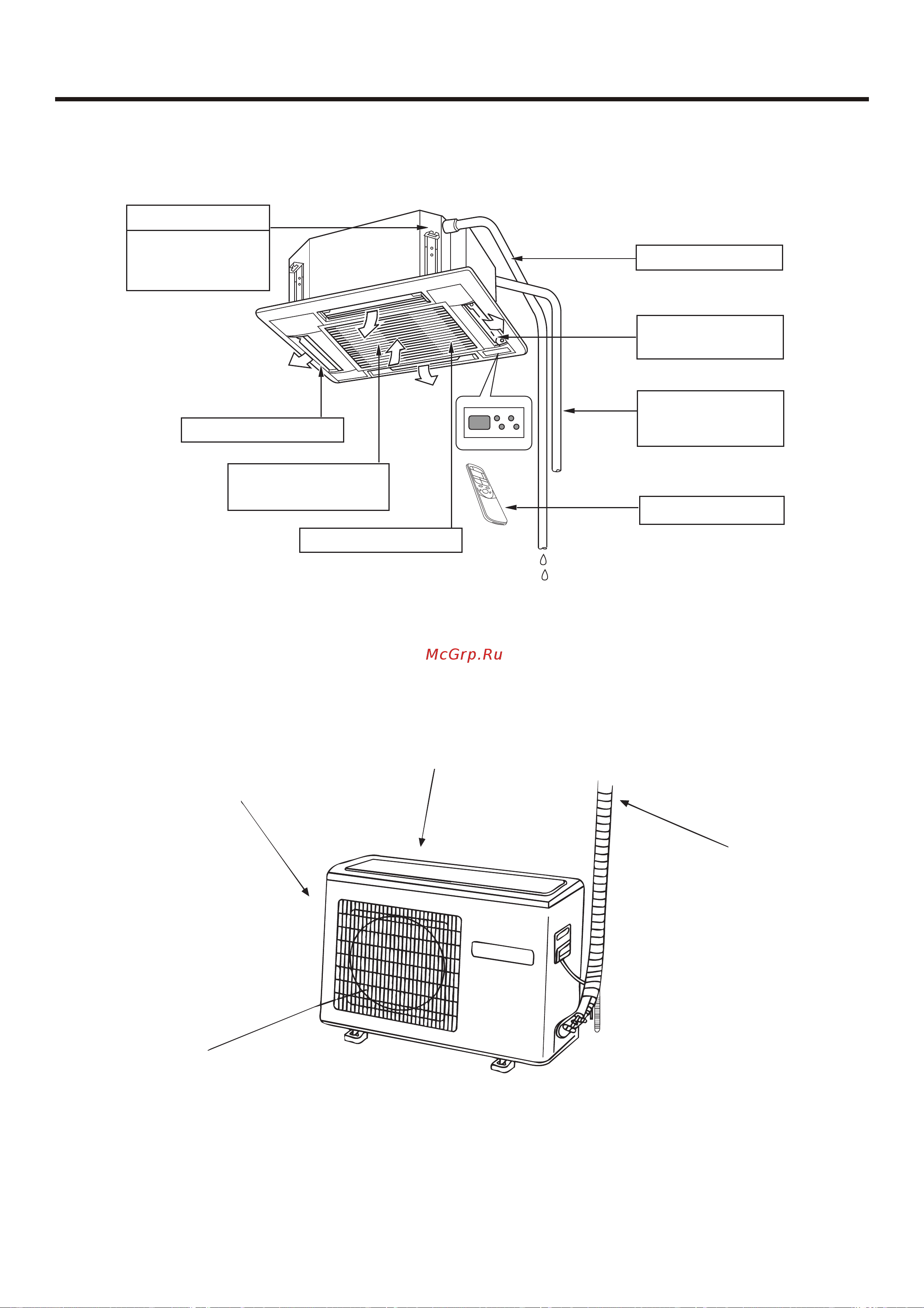

Drain Hose
Swing fender
Refrigerant pipe
Cable line
Earthing line
Air filter
Outlet
Suction grill
(located in the suction grill)
In cooling operation,to
discharge the water
from inside the room.
Discharge unit (built in)
(located in the outlet)
Remote Controller
Air Outlet
(blow out hot air when cooling
and cool air when heating)
Air Inlet (back)
Conneting pipe and
electrical wiring
Air Inlet (side)
Outdoor unit
24,28,36,42 series
14 series
- 30 -
PARTS AND FUNCTIONS
