![Yamaha F115Y [10/82] Fig 2 cylinder crankcase 1 cylindre carter 1](/img/pdf.png)
Yamaha F115Y [10/82] Fig 2 cylinder crankcase 1 cylindre carter 1
![Yamaha F115Y [10/82] Fig 2 cylinder crankcase 1 cylindre carter 1](/views2/1241090/page10/bga.png)
4

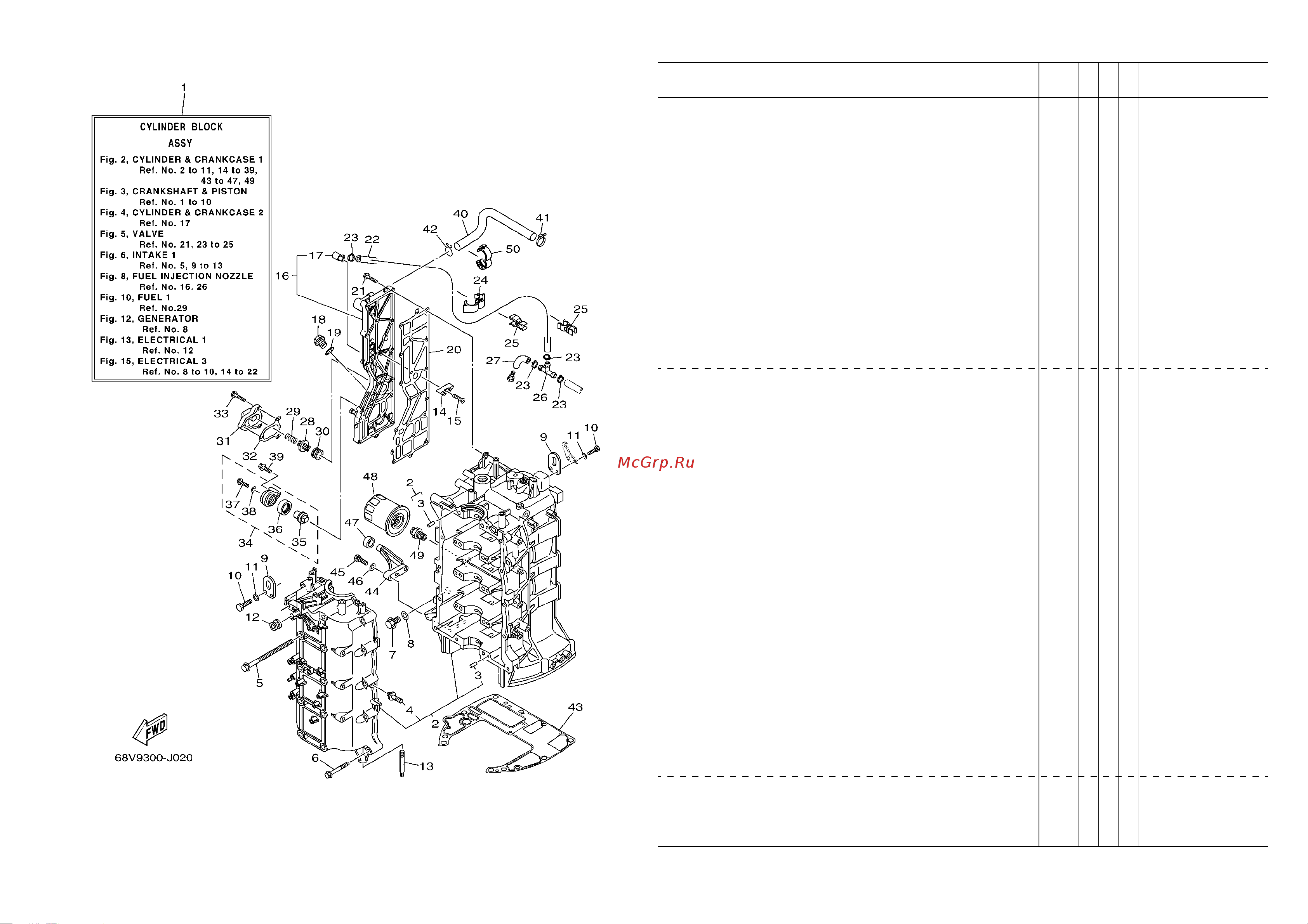

FIG. 2 CYLINDER & CRANKCASE 1 CYLINDRE & CARTER 1
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
68V9
68W9
REMARKS
REMARQUES
28
6G5–12416–00
VALVE, PRESSURE CONTROL
SOUPAPE DE CONTROLEUR PRESS
11
29
90501–16M11
SPRING, COMPRESSION
RESSORT, COMPRESSION
11
30
90480–20M05
GROMMET
PASSE-FIL
11
31
67F–1246A–01–9S
COVER 1
COUVERCLE 1
11
32
67F–12435–A0
GASKET
JOINT
11
33
90119–06MA2
BOLT, WITH WASHER
BOULON, AVEC RONDELLE
33
34
69J–11301–00
ANODE COVER ASSY
COUVERCLE ANODE (ENS.)
11
35
67F–11325–01
.ANODE
.ANODE
11
36
67F–11328–00
.GROMMET, ANODE
.PASSE-FIL
11
37
90105–06M07
.BOLT, FLANGE
.BOULON
11
38
90430–06M03
.GASKET
.JOINT
11
39
97575–08540
BOLT, WITH WASHER
VIS HEXAGONAL AVC RONDELLE
11
40
67F–1243A–00
HOSE 1
DURITE 1
11
41
90465–11M10
CLAMP
BRIDE
11
42
90467–20M15
CLIP
JONC
11
43
68V–11351–00
GASKET, CYLINDER
JOINT, D'EMBASE
11
44
67F–42761–01–94
STOPPER
PLAQUETTE
22
45
97095–06025
BOLT
BOULON
44
46
92995–06600
WASHER
RONDELLE
44
47
68F–44533–01
DAMPER, UPPER MOUNT RUBBER
COUVERCLE, SUSPENSION INFERIEU
22
48
5GH–13440–00
ELEMENT ASSY, OIL CLEANER
ELEMENT, FILTRE A HUILE
11
49
90401–20007
BOLT, UNION
BOULON, RACCORD
11
50
90464–16001
CLAMP
BRIDE
11
