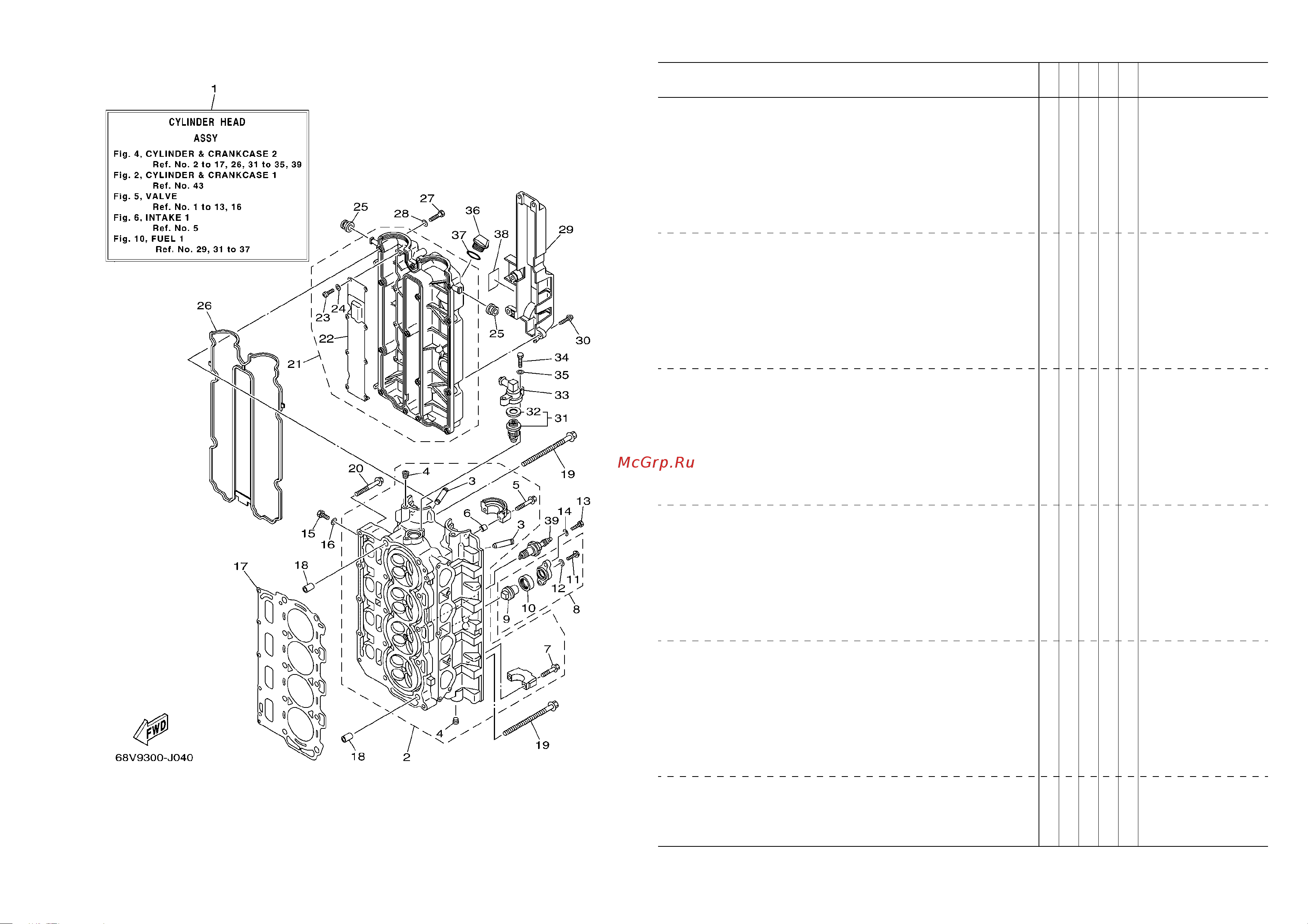

FIG. 4 CYLINDER & CRANKCASE 2 CYLINDRE & CARTER 2
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
68V9
68W9
REMARKS
REMARQUES
1
68V–W009A–05–9S
CYLINDER HEAD ASSY
CULASSE (ENS.)
11
2
68V–11110–03–9S
CYLINDER HEAD ASSY
JEU DE CULASSE
11
3
67F–11133–10
.GUIDE, VALVE 1
.GUIDE, SOUPAPE 1
16 16
4
90344–51019
.PLUG, TAPER SCREW
.PLOT, FILETE CONIQUE
44
5
90119–07235
.BOLT/WASHER-CAM CAPS
.BOULON, AVEC RONDELLE
44
6
91809–08006
.PIN, DOWEL
.GOUJON, D'ASSEMBLAGE
44
7
90119–07234
.BOLT, WITH WASHER
.BOULON, AVEC RONDELLE
16 16
8
67F–11301–00
ANODE COVER ASSY
COUVERCLE ANODE (ENS.)
22
9
67F–11325–01
.ANODE
.ANODE
11
10
67F–11328–00
.GROMMET, ANODE
.PASSE-FIL
11
11
90105–06M07
.BOLT, FLANGE
.BOULON
11
12
90430–06M03
.GASKET
.JOINT
11
13
97075–08025
BOLT
BOULON
44
14
92995–08600
WASHER
RONDELLE
44
15
97095–08014
BOLT
BOULON
44
16
90430–08143
GASKET
JOINT
44
17
67F–11181–03
GASKET, CYLINDER HEAD 1
JOINT, DE CULASSE 1
11
18
90387–10M08
COLLAR
COLLERETTE
22
19
90105–10M89
BOLT, FLANGE
BOULON
10 10
20
90119–08M91
BOLT, WITH WASHER
BOULON, AVEC RONDELLE
55
21
68V–11191–00–9S
COVER, CYLINDER HEAD 1
COUVERCLE, CULASSE 1
11
22
67F–11168–00
.COVER, BREATHER
.COUVERCLE, RENIFLARD
11
23
98507–04008
.SCREW, PAN HEAD
.VIS, TETE TRONCONIQUE
88
24
92907–04600
.WASHER
.RONDELLE
88
25
90480–12072
GROMMET
PASSE-FIL
22
26
6D8–11356–01
SEAL, CYLINDER 2
JOINT, SPY CYLINDRE
11
27
97095–06030
BOLT
BOULON
14 14
