Bomann TSG 707 [13/25] Plate racks of basket
![Bomann TSG 707 [13/25] Plate racks of basket](/views2/1080998/page13/bgd.png)
11

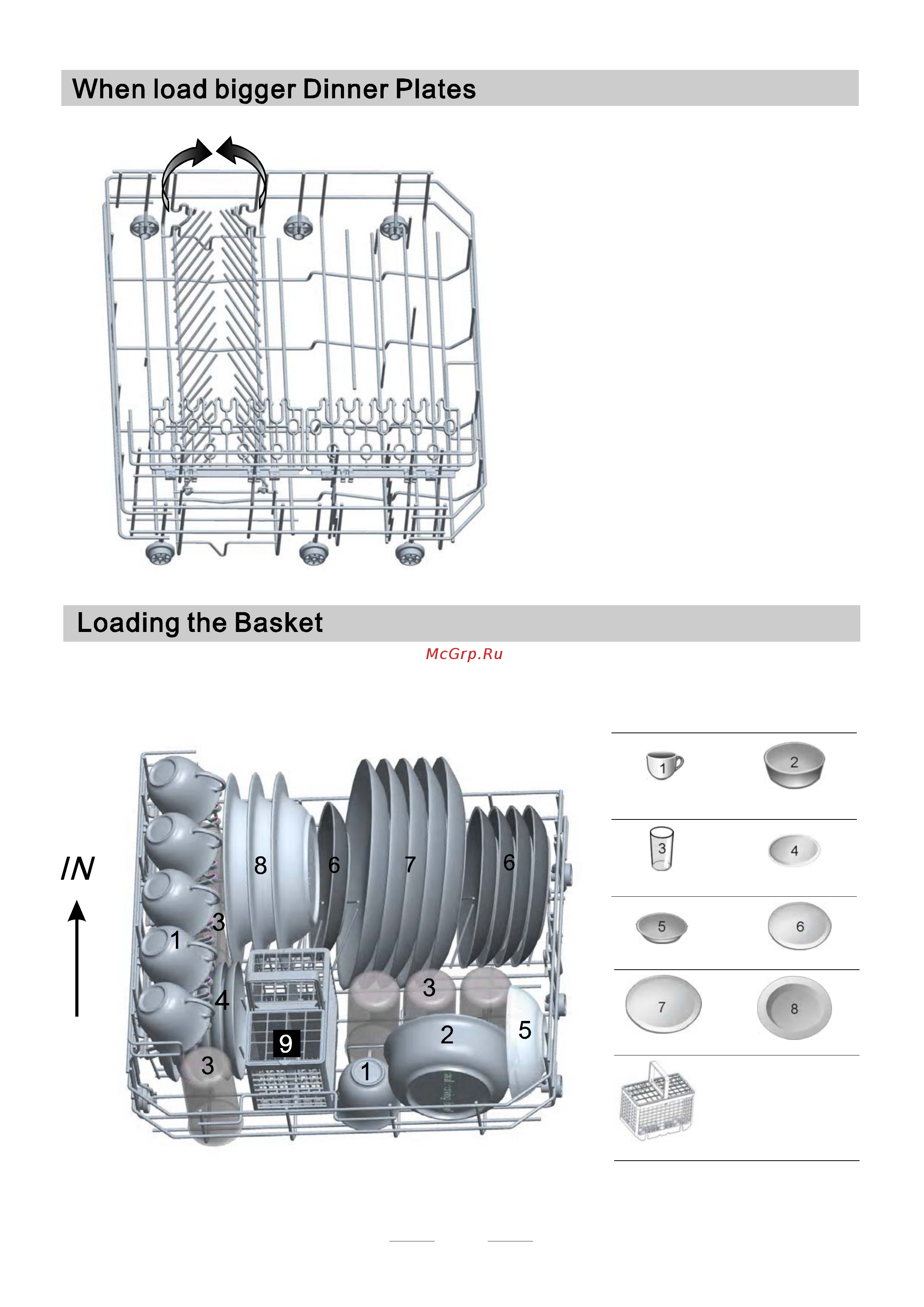

Plate racks of Basket
Whe n load bigger Dinner plates,
plea se fold t he rac k to lef t pictu re
showed loca tion.
The maximum plate can b e loade d
is 270mm(10 inches) diameter.
Posit ion the dishe s an d co okware so that they w il l n ot g et m oved by the sp ray o f water.
Saucers
Lar ge servi ng bow l
Glasses
Cups
Dinn er pla tes
So up p lates
Dessert dishe s
9
Dish
Cu tl er y ba ske t
