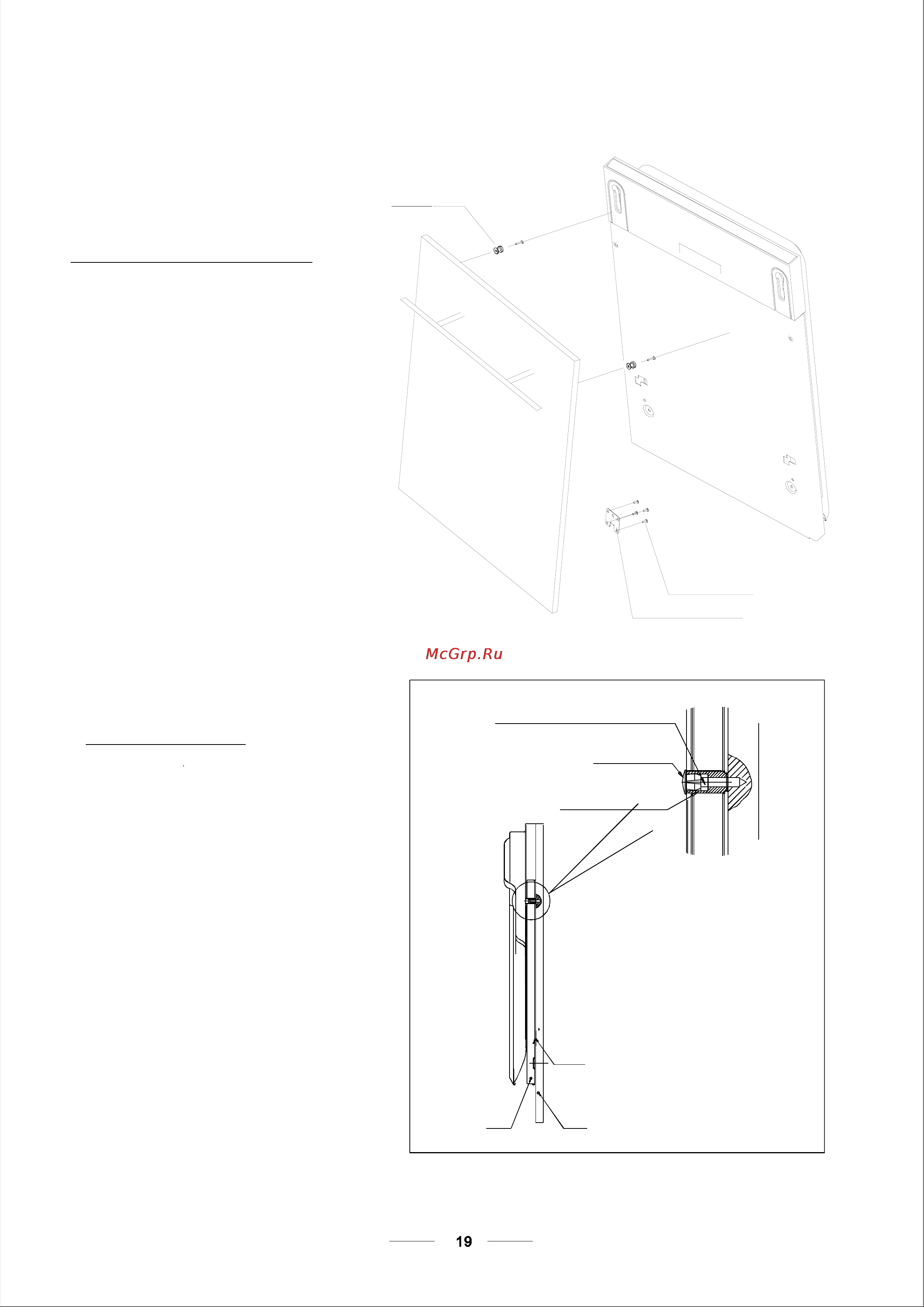

Installationof aesthetic panel

【】Figure 4a

2 Install the hookon the aesthetic wooden panel and put the hook into the slot of the

outer door of dishwasher(see figure 4a).After positioning of the panel , fix the panel

onto the outer door by screwsandbolts(See figure 4b).

Installation of aesthetic

wooden panel

【】Figure4b

. Takeaway the cover

.Pinupthescrew

. Get back the cover

Hophook

St 4 c ou n t e r s u nk

headscrew

Low er hook

Furniture door

Hook for aesthetic door

Outerdoorof

dishwasher

Spacer for furniture door

Cover

4X18 screw
