20

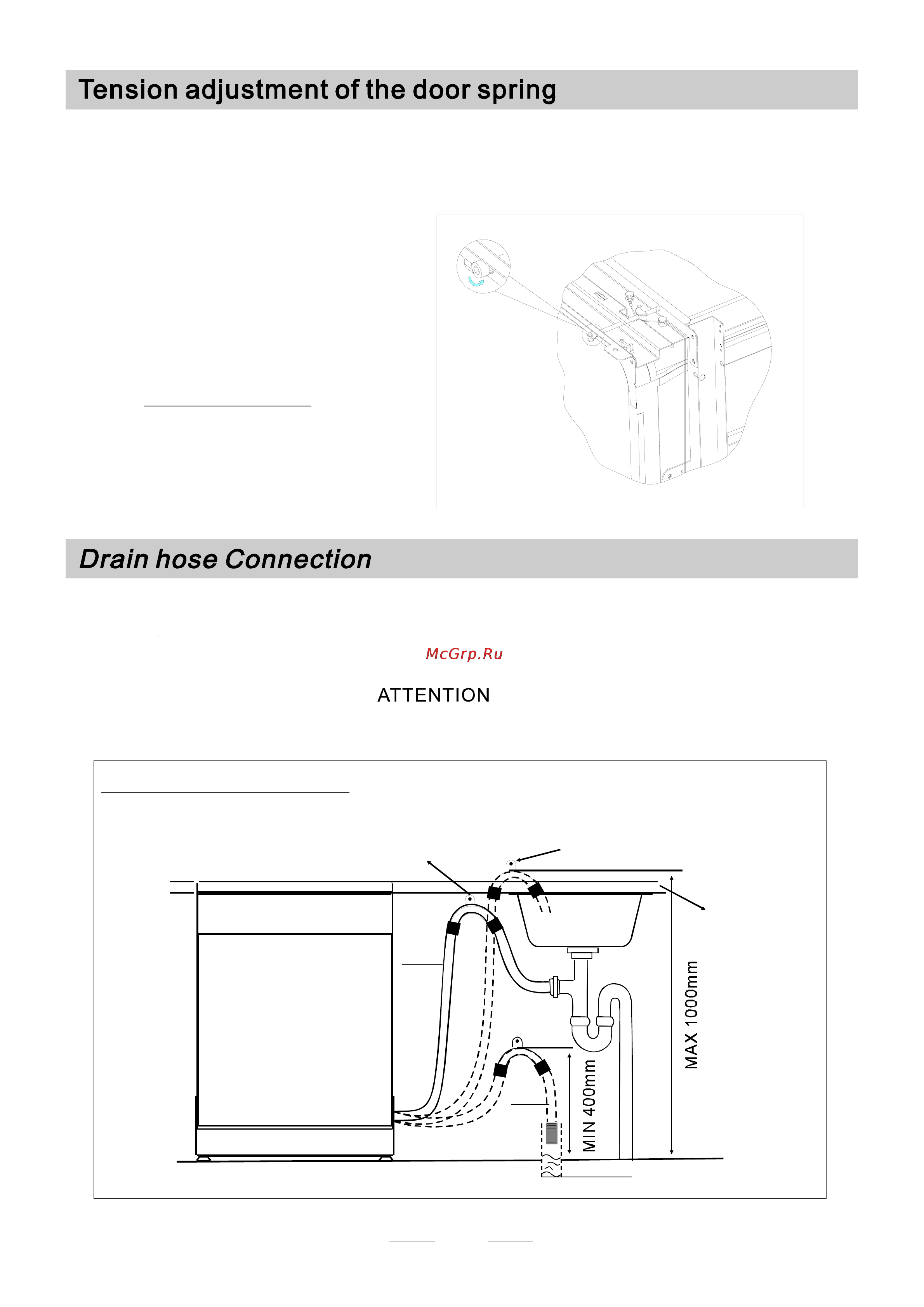

Tension adjustment
of thedoor spring
【】
Figure5
The door springs are set at the factoryto the proper tension for the outer door.
If ae sth etic woo den pa nel a re i nstal le d, yo u wi ll ha ve t o ad jus t the do or spr ing
tension. Rotate the adjusting screw to drive the adjustorto strain or relax the
steelcable(see figure5).
relax
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
runintothesink,makingsuretoavoidbendingorcrimpingit.Usethespeical
plastic support that comes with the appliance (figure 6).
to avoid the back flow ofit. : The special plastic hose support must be
solidly fastened to the wall to prevent the drain hose frommoving and allowing water
to spill outside thedrain.
Thetop of the hosemust be at
a height between 40 and100cm. The freeend of the hose must not be immersed in
water
Drainpipe connection
【】
Figure6
φ 40mm
A
B
C
Counte r
Front
Drain pipe
Drain hose hook
Close the drain hose hook to the counte r
NOTE
The top of the hose
must be at a height
bet ween
40 and 100cm.
The free end of the
hos e must not be
immers ed in water.
Adjust the door spring
tension until the door
remains balance in the
fully-opened position.
