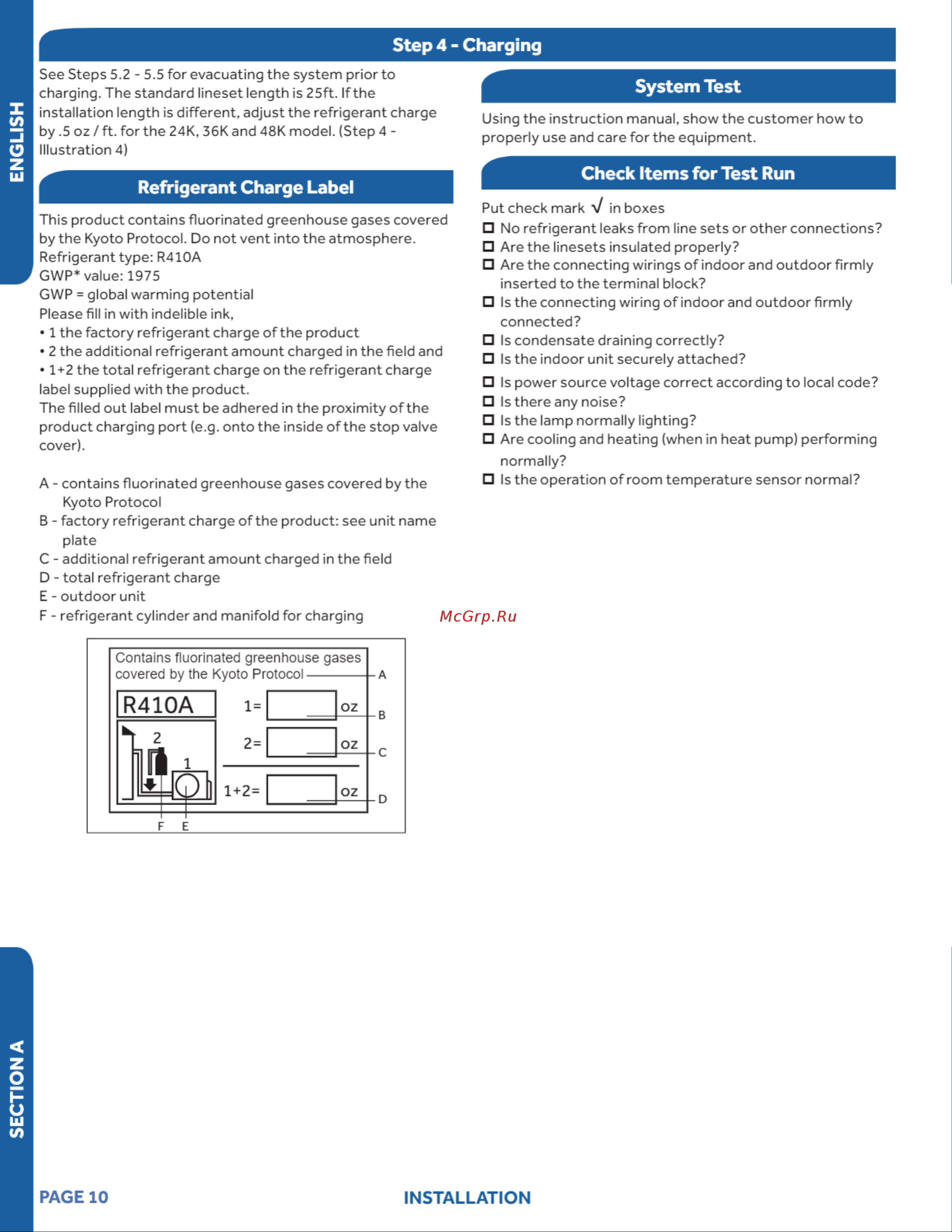

Step 4 Charging See Steps 5 2 5 5 for evacuating the system prior to charging The standard lineset length is 25ft If the installation length is different adjust the refrigerant charge by 5 oz ft for the 24K 36K and 48K model Step 4 Illustration 4 System Test Using the instruction manual show the customer how to properly use and care for the equipment Check Items for Test Run Refrigerant Charge Label This product contains fluorinated greenhouse gases covered by the Kyoto Protocol Do not vent into the atmosphere Refrigerant type R410A GWP value 1975 GWP global warming potential Please fill in with indelible ink 1 the factory refrigerant charge of the product 2 the additional refrigerant amount charged in the field and 1 2 the total refrigerant charge on the refrigerant charge label supplied with the product The filled out label must be adhered in the proximity of the product charging port e g onto the inside of the stop valve cover A contains fluorinated greenhouse gases covered by the Kyoto Protocol B factory refrigerant charge of the product see unit name plate C additional refrigerant amount charged in the field D total refrigerant charge E outdoor unit F refrigerant cylinder and manifold for charging Put check mark v inboxes No refrigerant leaks from line sets or other connections Are the linesets insulated properly Are the connecting wirings of indoor and outdoor firmly inserted to the terminal block Is the connecting wiring of indoor and outdoorfirmly connected Is condensate draining correctly Is the indoor unit securely attached Is power source voltage correct according to local code Is there any noise Is the lamp normally lighting Are cooling and heating when in heat pump performing normally Is the operation of room temperature sensor normal U LU W PAGE 10 INSTALLATION
