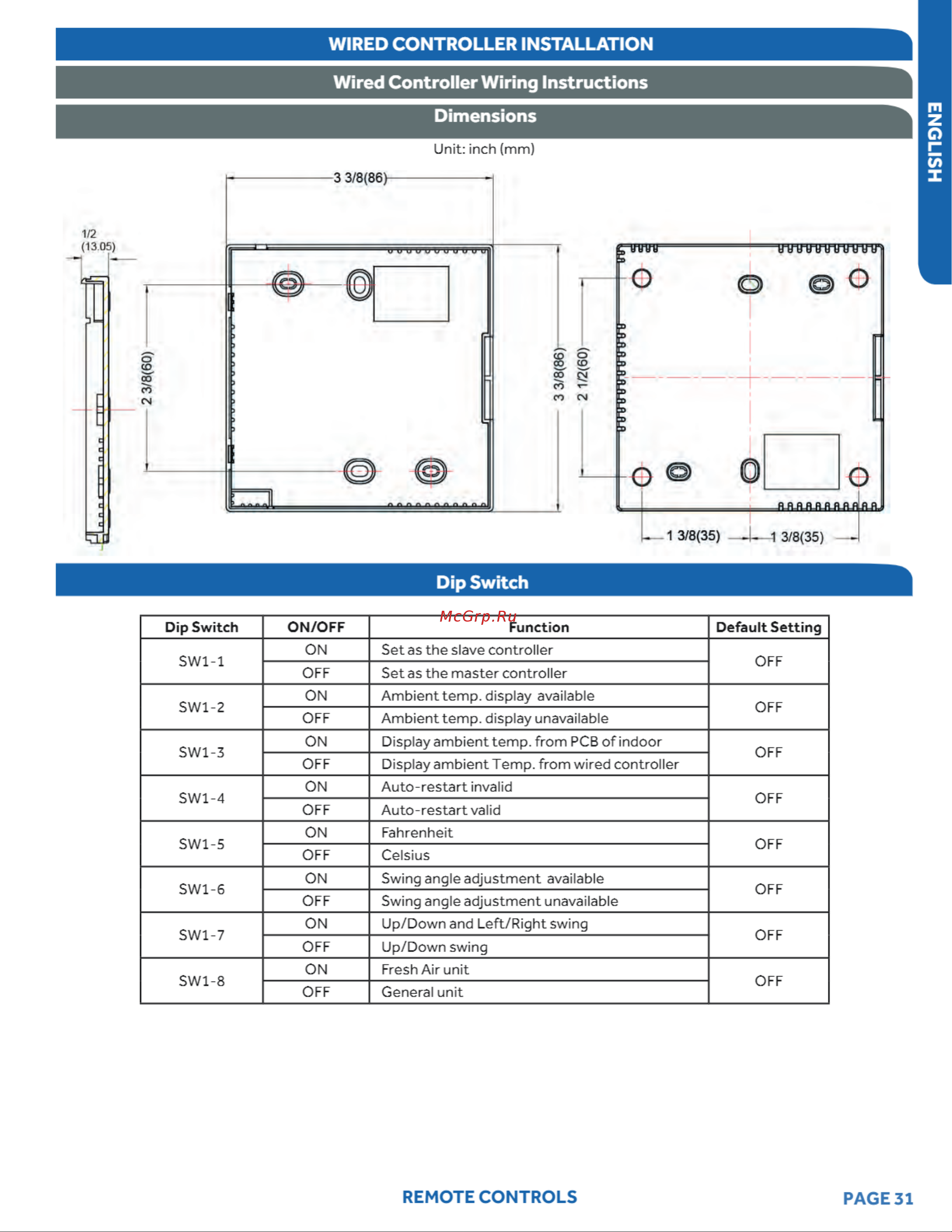

ENGLISH Unit inch mm Dip Switch SW1 1 SW1 2 SW1 3 SW1 4 SW1 5 SW1 6 SW1 7 SW1 8 ON OFF Function ON Set as the slave controller OFF Set as the master controller ON Ambient temp display available OFF Ambient temp display unavailable ON Display ambient temp from PCB of indoor OFF Display ambient Temp from wired controller ON Auto restart invalid OFF Auto restart valid ON Fahrenheit OFF Celsius ON Swing angle adjustment available OFF Swing angle adjustment unavailable ON Up Down and Left Right swing OFF Up Down swing ON Fresh Air unit OFF General unit REMOTE CONTROLS Default Setting OFF OFF OFF OFF OFF OFF OFF OFF PAGE 31
