5.3 Installation

■ Drawing of Overall Dimension

■ Reference Position of Base

1. The bearing capacity of base is designed as per the weight of unit during operation.

2. The base may be of U-steel (designed by users as per overall dimensions of the unit) or concrete structure

and shall have at surface.

3. A 10-20 mm rubber shock pad shall be placed between the unit and the base.

4. The unit and the base may be fastened with ø16 or ø18 anchor bolts.

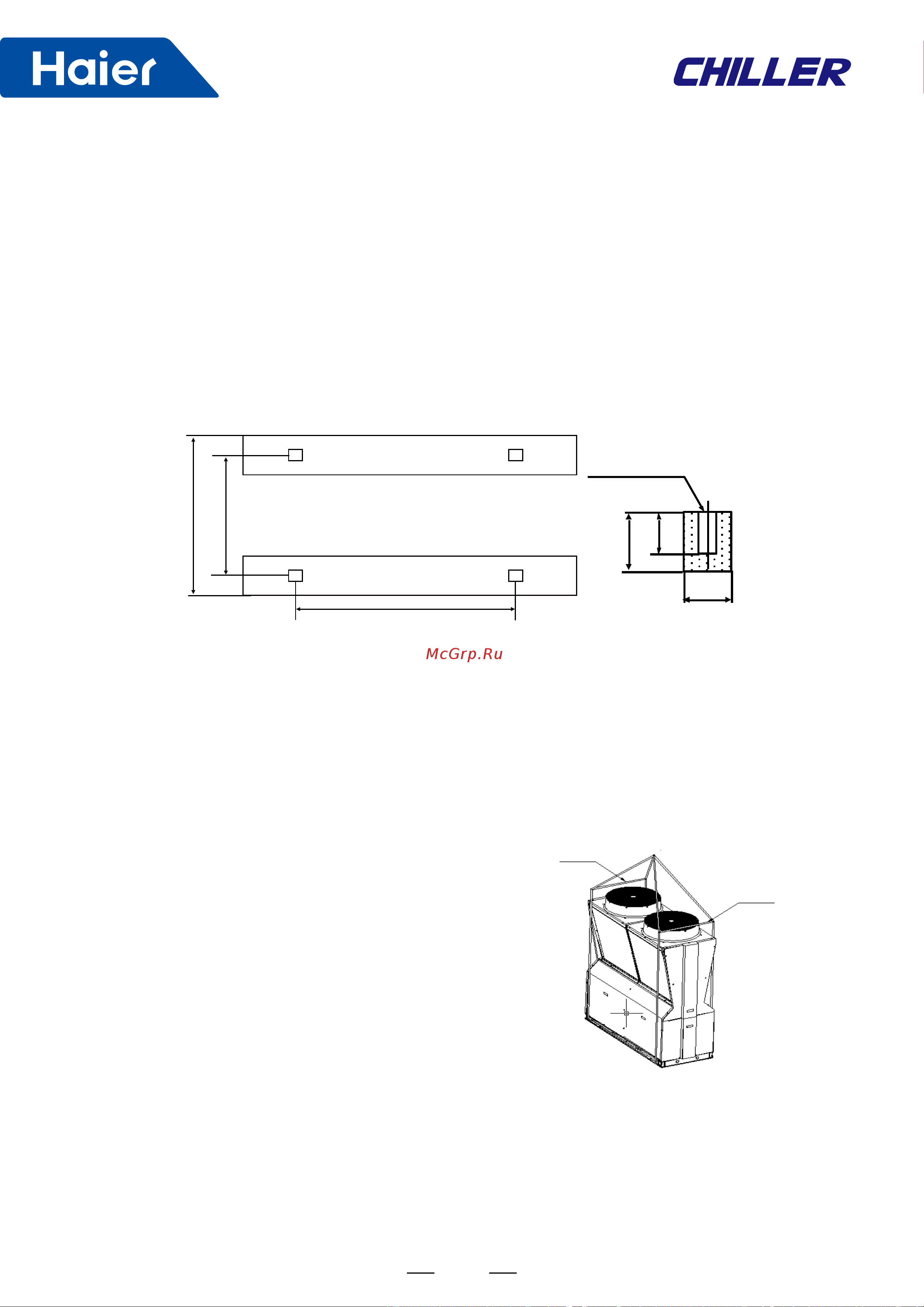

■ Unit Base Diagram

1000

1316

I-I Cutaway view

Presetting hole

100X100

1320

725

200

350

250

■ Pre-installation Preparation

■ Cargo inspection

All units are rmly bolted on wood trays, subject to ex-factory inspection and lled with accurate amount of

R410a refrigerant and refrigeration oil for the unit operation. Upon the receipt, you shall carefully inspect cargoes

for any damage during transport and conrm all ordered parts and accessories are delivered.

You shall inform delivery man of any damage immediately. And you shall inform problem to us other than

appearance damage immediately.

■ Handling

You shall handle the unit by a forklift or crane. If a crane

is used, the top and side panel of the unit shall be protected

by appropriate spacers (as shown in the gure). During the

handling, the unit shall be kept horizontal and not be inclined

for more than 30°, and the unit damage due to violations shall

be avoided.

■ Disassembly

Place the unit at a desired position, cut binding tapes, remove

the external crate, unscrew bolts and remove the wood base

from the unit bottom.

Spacer

<30°, Lifting rope

(two pieces)

unit: mm
