Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T
HWR12XC5 ESA3105 ESA3125
12

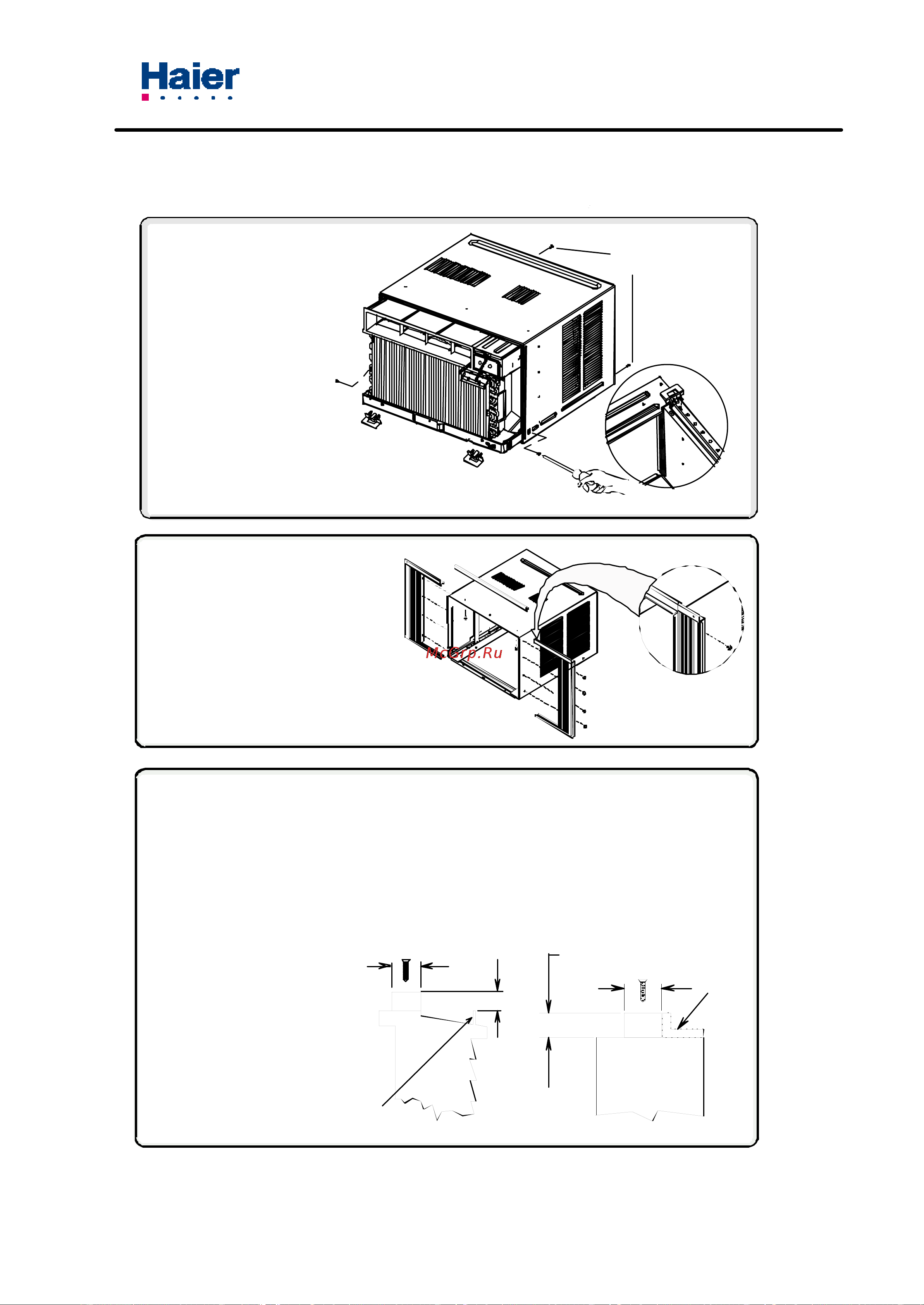

Installation and Accessory Parts
1. Remove the screws which fasten
the cabinet at both sides and at
the back.
2. Slide the unit from the cabinet
by gripping the base pan handle
and pulling forward while bracing
the cabinet.
3. Insert the Frame Guide into the
bottom of the cabinet.
Caution: Never expose plastic
front or grille to extreme
temperatures.
PREPARE UNIT
FOR
INSTALLATION-2
2
Shipping
Screws
Install top rail with three 13/32"screws.
Slide left-hand curtain assembly
into left end of top and bottom
rails. Repeat for right-hand curtain
assembly. Fasten curtain retainer
strips to sides of outer case with
eight 13/32" screws.
ASSEMBLE
CURTAINS/TOP
RAIL
3
Inspect window track, sash, and sill
for its ability to support the weight of
air conditioner.
Measure width between window
moldings to ensure Instant Mount
will fit window frame. Instant Mount
models are designed for windows
wide (the detail see page 15)
Instant Mount kit supplied with unit
is designed for mounting in most
double-hung windows without
storm windows. For installation in
window frame with storm window,
modify sill by adding wood strips (not
included) to inner and outer sills. This
raises unit and eliminates
interference of storm window frame.
Mobile home window installation
Add wood strip (at least 11/2" wide)
along entire width ofwindow sill.
Thicknessofwood strip should match
height offront lip onwindow frame.
Fasten wood strip to sill with a
minimum ofthree countersunkwood
screws (not supplied with kit).This
provides a smooth surface for
mountingair conditioner.
Storm window installation
If stormwindow frame does not allow
adequate clearancebelow sill (1/2"
required), removestorm window
frame or create clearance by adding a
wood strip (at least 11/2" wide) along
entire width ofsill. Fasten wood strip
tosill with at least three countersunk
wood screws (not supplied with kit).
This provides a smoothsurface for
mounting air conditioner.
SILL
Wood
Strip
1/2"
Minimum
O
U
T
D
O
O
R
StormWindow
Frame
1 1/2"
Minimum
I
N
D
O
O
R
1 1/2"
Minimum
Wood
Strip
I
N
D
O
O
R
O
U
T
D
O
O
R
Window
Frame
Must be a minimum
of 1/2" to clear
bottom rail on unit
PREPARE
WINDOW FOR
INSTALLTION
4
