Installation and Accessory Parts
8
Find someone to help you
replace chassis in outer case.
Replace front panel, and grille.
(Don't forget to install the attachment
screws before replacing grille)
Caution:
For security purpose, reinstall
screws at cabinet's sides.
Important:
Because window
sash helps keep unit in window,
make certain window sash contacts
outer case before reinstalling chassis.
RETURN
CHASSIS TO
OUTER CASE

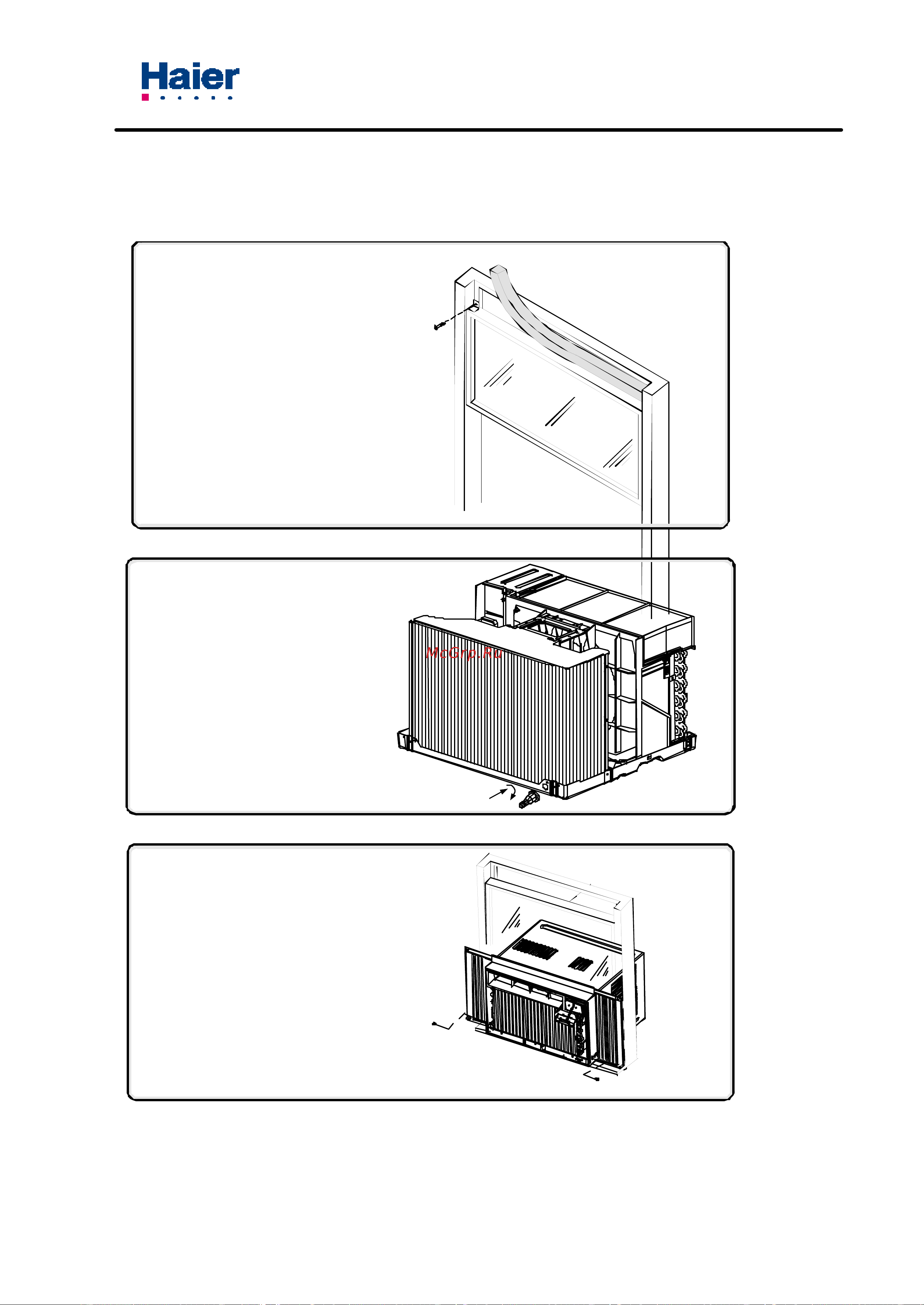

Install sash bracket on top of indoor window sash
with one wood screw 31/32" to prevent raising of
window from the outside. Screw anchor directly into
side of window frame. For hard wood or metal window
frames, drill a pilot hole to start screw.
Important:Be careful not to drill pilot hole too deep.
Add a piece of tape to the drill bit as a depth gauge.
Also stay clear of glass. Be careful not to damage the
function of the window.
Cut window seal gasket to width of window. Stuff window
seal strip between outdoor window glass and top of
indoor sash. This will stop air leakage which reduces
efficiency.
6
INSTALL SASH BRACKET
& SEAL GASKET
INSTALL
DRAIN TUBE
7
The base pan may overflow due to high humidity.
You must install the drain tube before using the
unit. Adjust the direction of the drain tube
to make it be in line with the hole in the rear of
unit; Insert the drain tube into the hole and twist
90°. To drain the excess water to indicated
position, connect a drainpipe to the drain tube.
When pressing the drain tube or drainpipe into
place, apply force in the direction away from the
fins to avoid injuring yourself.
