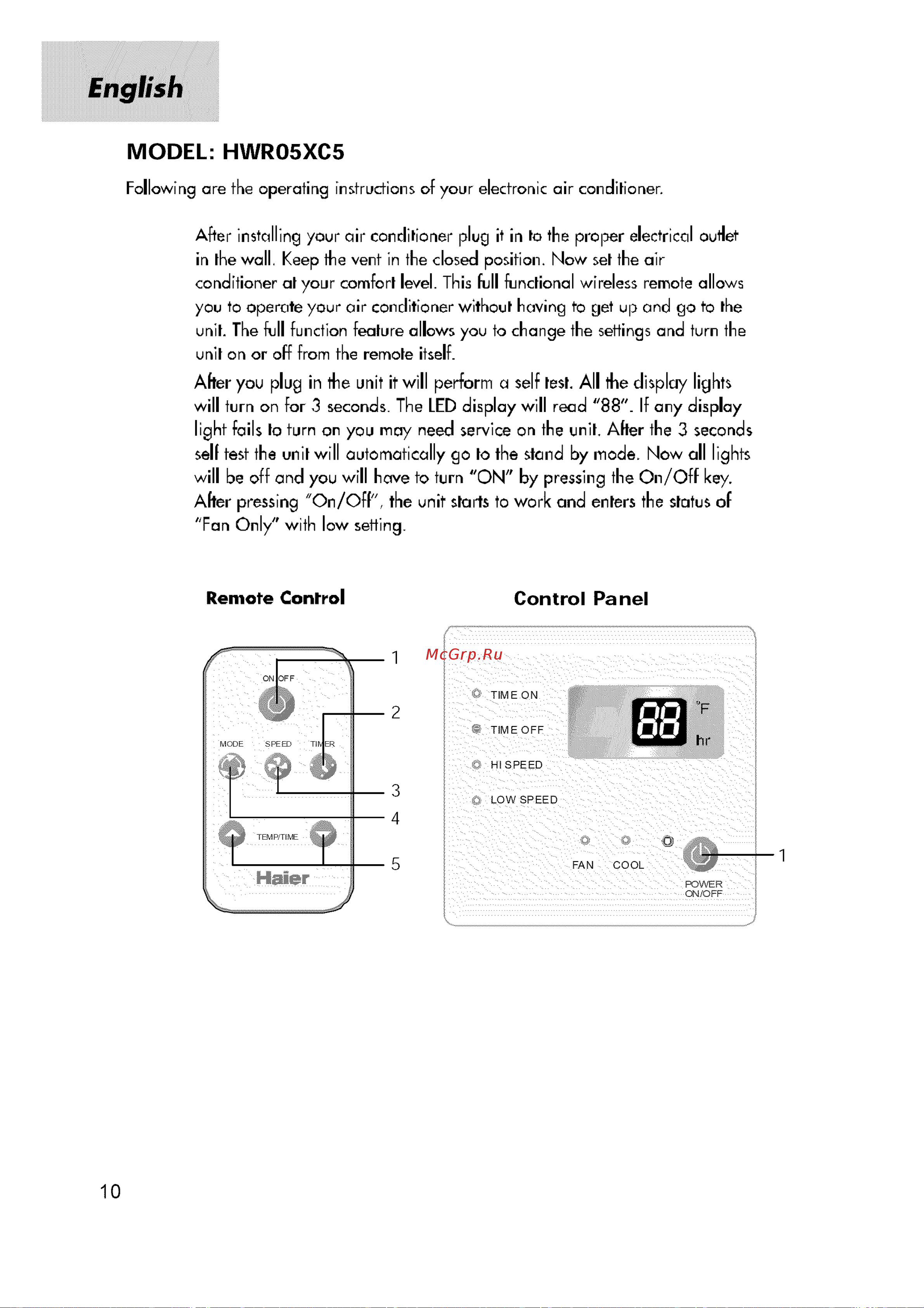

MODEL: HWR05XC5
Followingare the operating insfrudions of your electronic air conditioner.
After installing your air conditioner plug it in to the proper electrical outer
in the wall, Keep the vent in the closed posifio,_. Now set the air
conditioner at your comfort level. This DII funclional wireless remote allows
you to operate your air conditioner without having to get up and go to the
unit. The full function feature allows you to change the settings and turn the
unit on or off from the remote itself.
Alter you plug in the unit it will perform c_self test. All the display lights
will turn on for 3 seconds. The LED display will read "88". If any display
light fails to turn on you may need service on the uniL Alter the 3 seconds
sell test the unit will automatically go to the stand by mode. Now all lights
will be off and you will have to turn "ON" by pressing the On/Off key.
Alter pressing "On/Off", the unit starts to work and enters the status of
"Fan Only" with low setting.
