Acquaer Ltd. H-4900, Fehérgyarmat, Szatmári út 11.
repellent and check for leakage.
7.
When the protector trips frequently during operation, shut off the
pump to check and restart the pump.
8.
Carry out repairs or maintenance when pump is shut down and that
only can be done by professional.
General lntroduction
This deep well submersible pump is produced according to the China
national standard, which consists of YQ series submersible motor and
XR series multi-stage pump. Owing to its high lift and flow rate, efficient,
simple structure and easy to use & maintain. Therefore, it is widely
applied to water pumping project in river, dam and canal etc. It is mainly
use for farm irrigation, water supply for human being and animals with
drinking water in plateau or mountain areas as well as drainage in city,
factory, railway, mines and construction site.
Conditions of Use
Electricity Supply:
• Single-phase: 110V±5%, 220V±5%, 50Hz±1%,60Hz±1%
• Three-phase:380V±5%, 50Hz±1%
Water Property
• The water temperature should not be over 35℃;
• The Maximum solid particles should not be over 2mm and the content of
the impurities should not be over 0.02% by weight.
• The acid-balance of the water should be between 6.5 and
8.5 PH. T
he
c
on
t
en
t
o
f
H
2
S s
hould
no
t m
ore
t
han
1
.
5mg
/
l
;
• The content of chloridion should not more than 400mg/l;
It needs to install guiding cover for high-power and high flow rate
deep well submersible pump which is used for pool, large diameter well
or conditions alike. Pump should ideally be installed vertically, with a
maximum of 30 degrees from vertical if necessary. Horizontal
installation is strictly prohibited.
The deep well submersible must be submerged completely to
function properly. Allowing it to run while not under water can damage
the unit.
Descriptions of Model, specification and performance

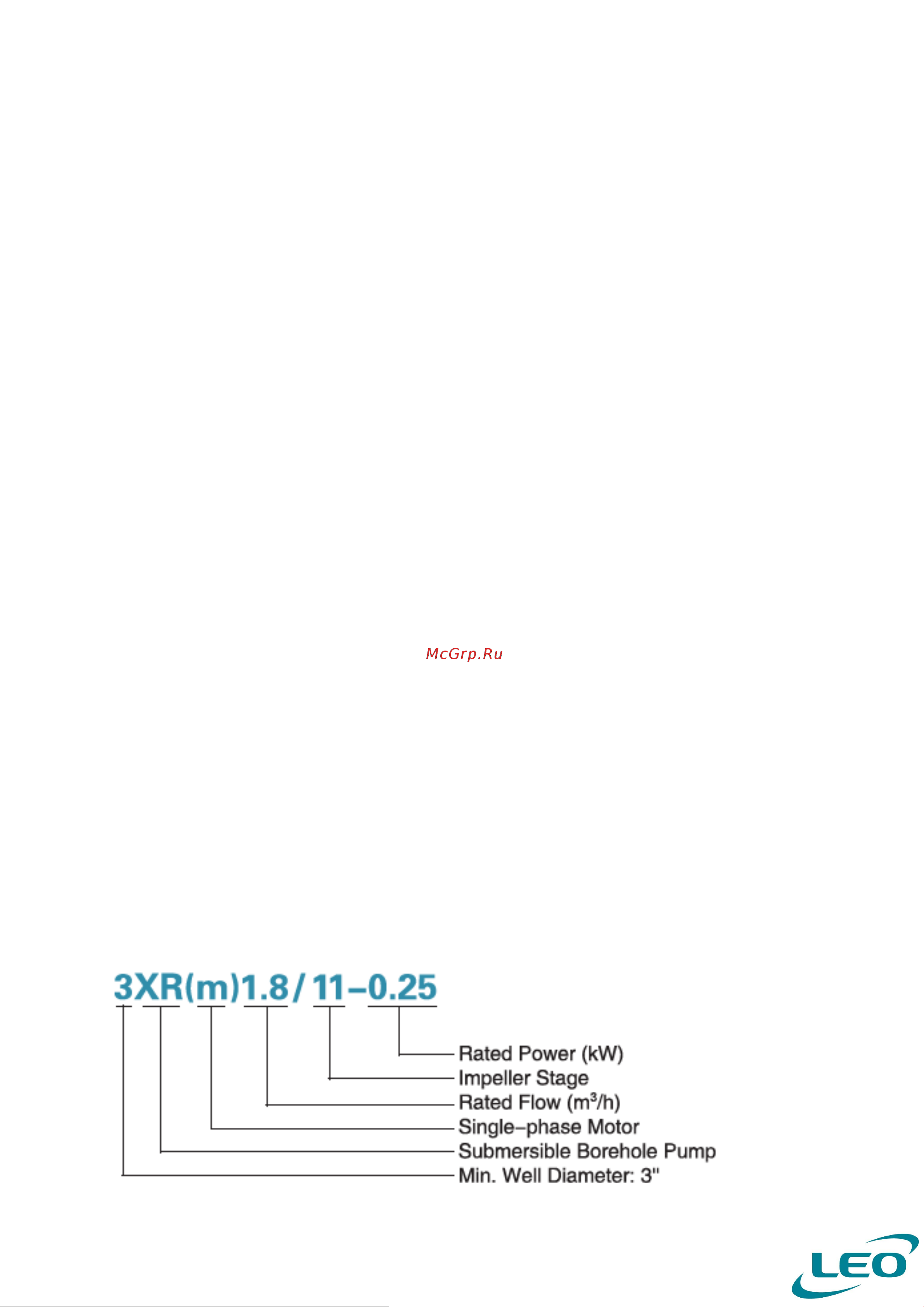

Model Meaning
