Structure Description
This deep well submersible pump consists of pump working part, pump power part
(submersible motor), pipe part, gate valve and control box etc. Connecting pump with

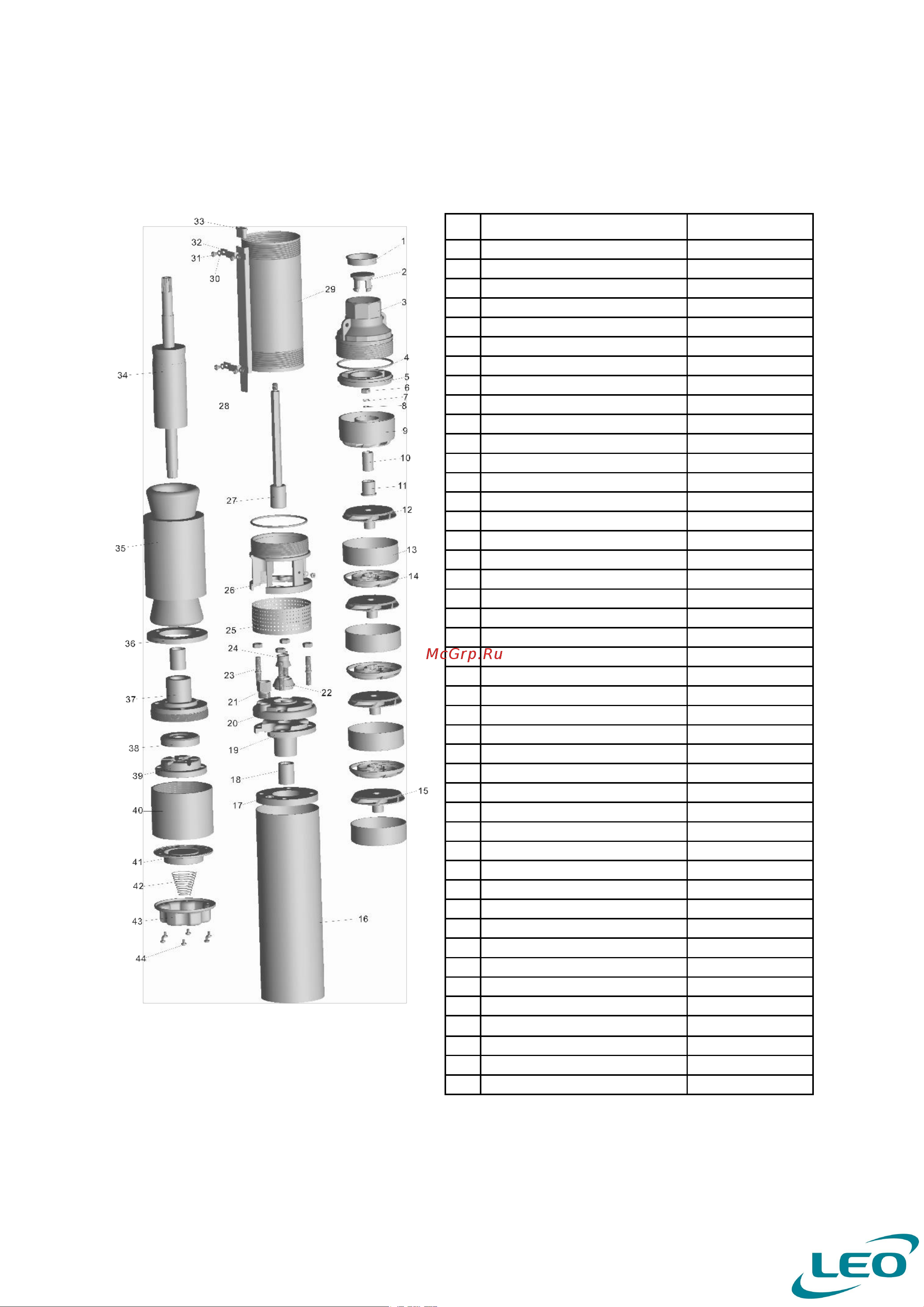

motor with the shaft coupling to work under water. See the figure below for its structure.
No.
Part
Material
1
Dust cover
PE
2
Check valve
ABS
3
Outlet joint
AISI304
4
O-ring
NBR
5
Locating sleeve
PPO-GF30
6
Nut M8
AISI304
7
Spring washer 8
AISI304
8
Plain washer 8
AISI304
9
Fixed bracket
PPO-GF30
10
Bushing
AISI304
11
Rubber bearing
NBR
12
Impeller
POM-GF20
13
Pump casing
AISI304
14
Guide vane
PPO-GF30
15
Primary impeller
POM-GF20
16
Motor barrel
AISI301
17
Top dead mouth
HT200
18
Bearing
Ceramic
19
Upper bearing seal part
HT200
20
Cover
AISI301
21
Nut
3Cr13
22
Sand protecting ring
304
23
Double-screw bolt
AISI301
24
Water thrower
NBR
25
Screen
AISI301
26
Inlet joint
AISI304
27
Pump shaft part
AISI304
28
Cable guard plate
AISI301
29
Pump barrel
AISI301
30
Plain washer 5
AISI301
31
Cross-head screw
AISI301
32
Cable guard plate clip
AISI301
33
Cable jacket
NBR
34
Rotator part
35
Stator part
36
Bottom dead mouth
HT200
37
Lower bearing seal part
HT200
38
Thrust plate
3Cr13
39
Thrust bearing
Babbitt
40
Pump base
HT200
41
Extension part
NBR
42
Spring
2Cr13
43
Footing
304
44
Cross-head Screw M5X16
304
