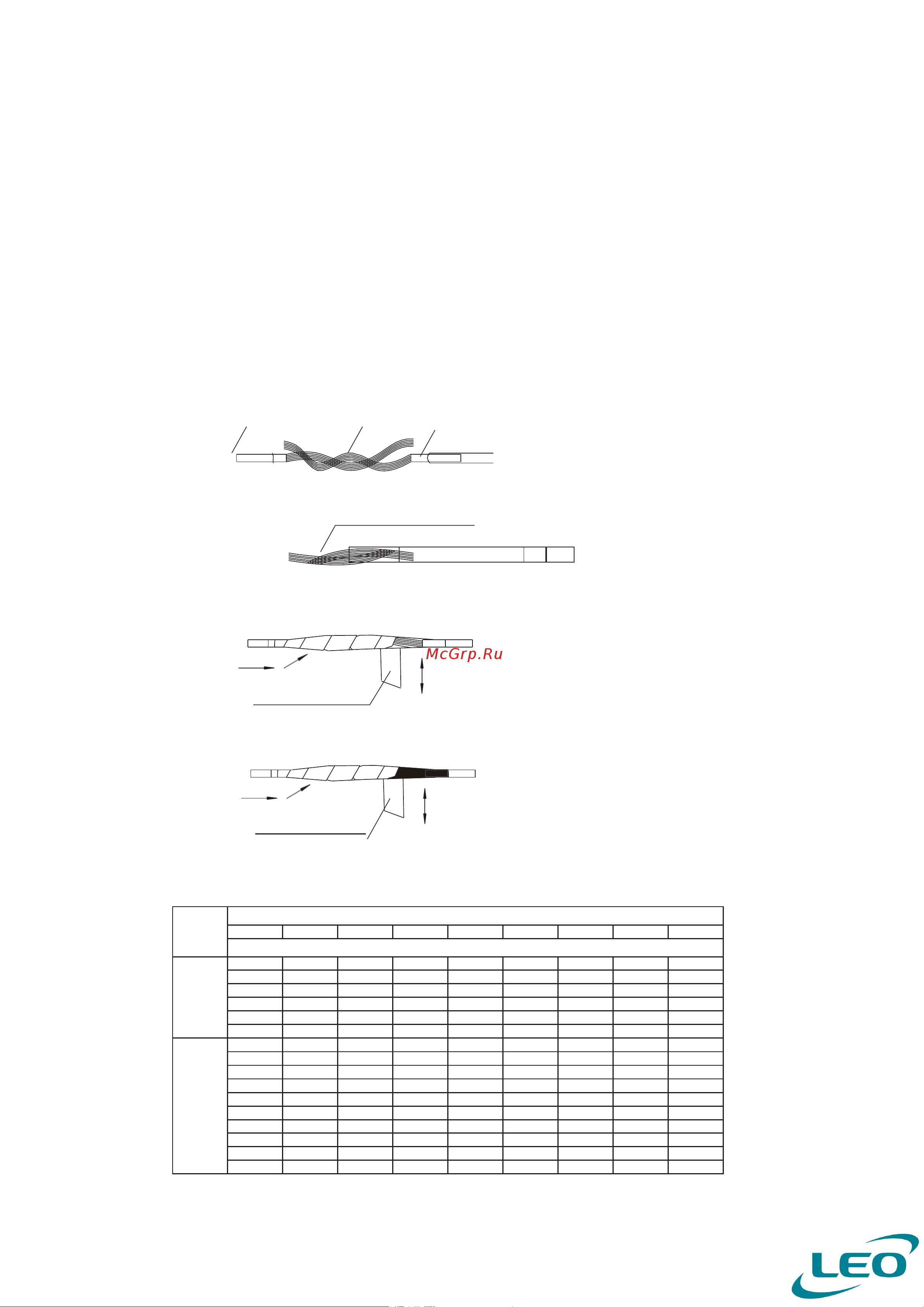

LEO 6XRSm17/5-3 [7/10] Attachment of the heat shrink tubing
![LEO 6XRP30/18-18,5 [7/10] Attachment of the heat shrink tubing](/views2/1819901/page7/bg7.png)
Acquaer Ltd. H-4900, Fehérgyarmat, Szatmári út 11.
waterproof tape should cover more than 10mm of the heat shrink tubing
on both the start and end sides. The waterproof tape should be
elongated by pulling in 200% before wrapping and apply as per normal
wrapping tape.
(5)
Use the waterproof tape to bind that three-wrapped wire core
together. The waterproof tape should be elongated by pulling in 200%
and should cover more than 50mm of the cable rubber coating on both
the start and end sides.
(6)
Cover the wrapped cable again with the electrical insulation tape,
which should cover the waterproof tape fully. As shown:
1.
Connection of the Copper Core Cable Heat
shrink tubing Copper Core Cable
2.
Attachment of the Heat-shrink Tubing
Heat-shrink Tubing
3.
Wrapping the Waterproof Tape
4.
Wrapping the Insulation Tape
1..5
Selection of cable
:
Motor Power
(kW)
Cable Standard
4×1
4×1.5
4×2.5
4×4
4×6
4×10
4×16
4×25
Cable length(m)
Single
-Phase
0.37
55
80
130
0.55
35
55
90
140
0.75
25
40
65
105
160
1.1
20
30
50
75
115
190
1.5
22
36
60
90
145
230
2.2
25
40
60
100
165
T h r e e
-Phase
0.37
280
0.55
210
315
0.75
165
240
1.1
120
180
285
1.5
90
135
225
360
2.2
65
400
165
255
390
3.0
45
65
110
180
255
420
4.0
35
50
85
135
195
330
520
5.5
42
70
110
165
270
430
7.5
80
130
200
320
585
Waterproof Tape
Insulation Tape
