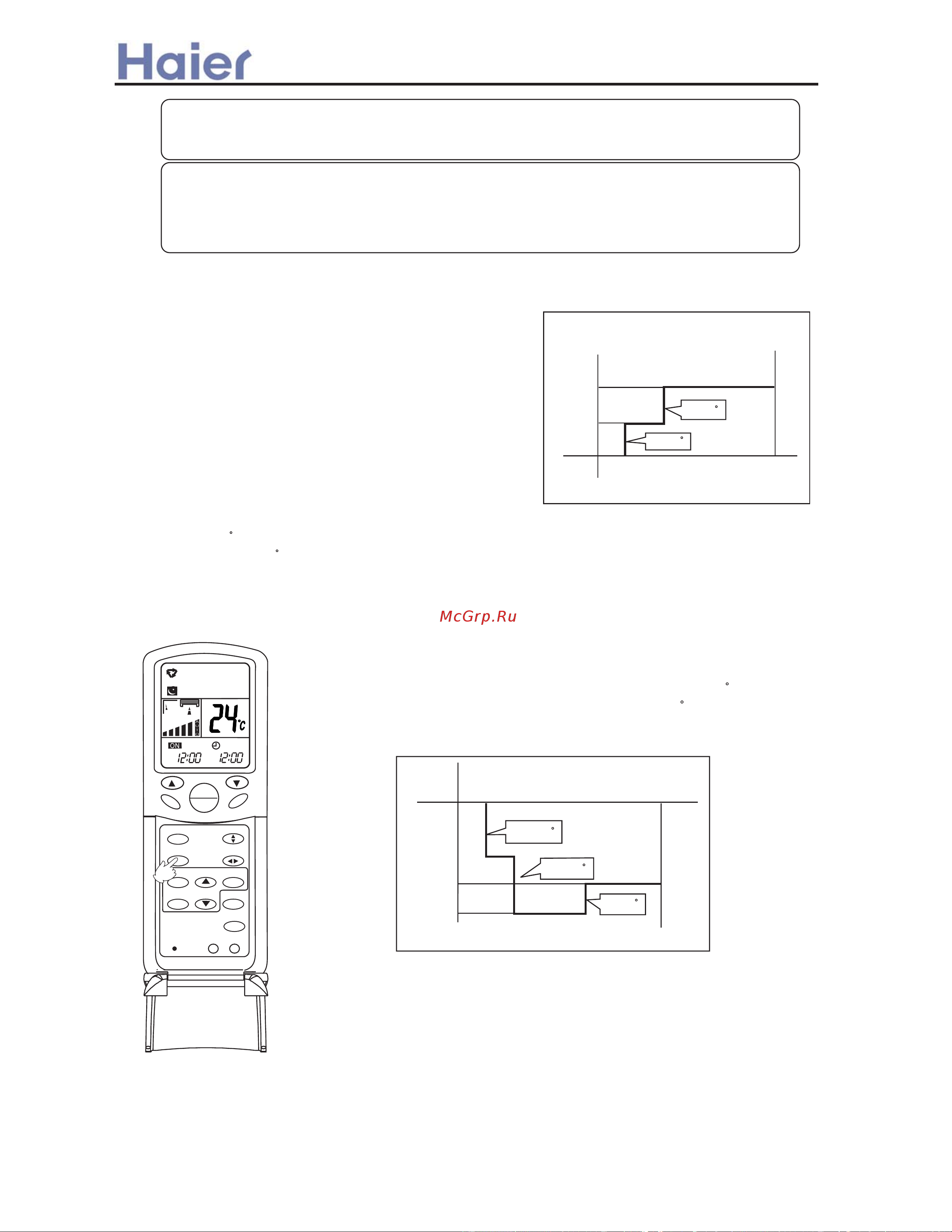

Sleep operation
Remote control unit
Usage of the Sleep function
After starting, set the Run mode and press the Sleep
button.
Run mode
1. In cooling and dry
After starting of the Sleep operation, the temperature will
be raised for 1 C higher than the set temperature 1 hour
later,and be raised for 1 C after another hour. It continues
under that condition for 6 hours, then the machine will
be switched off. The temperature is higher than the set
temperature so as to avoid catching cold in sleeping.
2. In heating ( the single-cooling conditioners do not have the function)
After the Sleep running starts, the temperature will drop for 2 C after
another one hour. The temperature will raise for 1 C after 3 hours running
under the above temperature, and the conditioner will be closed down
after running for 3 hours. The temperature is lower than the set
temperature so as to avoid uneasiness in sleeping.
3. In automatic running
The conditioner will run under automatically selected working mode of
sleeping.
4. In Fan running
The Sleep function is invalid.
Put louvers at up position in cooling and down position in heating mode.
This will be helpful to keep an even room temp.
Note:
In cooling or dry operation, don't put horizontal louvers at downward position for
a long time, or outlet grill might get frosted. Don't expose your skin to cool or warm
air for a long time.
Note:
Before going to bed, you can press the Sleep button,
then the air conditioner will operate in comfortable sleep
mode to make your sleep more comfortable.
About 6 hours
The Sleep running starts The Sleep running stops
Set the
temperature
Close down
the machine
In cooling and dry
1 hour
Raise 1 C
1 hour
Raise 1 C
ON
OFF
TEMP
HEALTH
FAN
MODE
SLEEP
SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
HEAT
POWER/SOFT
AM AM
Raise 1 C
Drop for 2 C
Drop for 2 C
About 3 hours
The Sleep running starts
The Sleep running stops
Set the
temperature
Close down
the machine
In heating
1 hour
1 hour
3 hours
>a__WcU[S^ <[c >a`V[e[a`Wc
-94-
