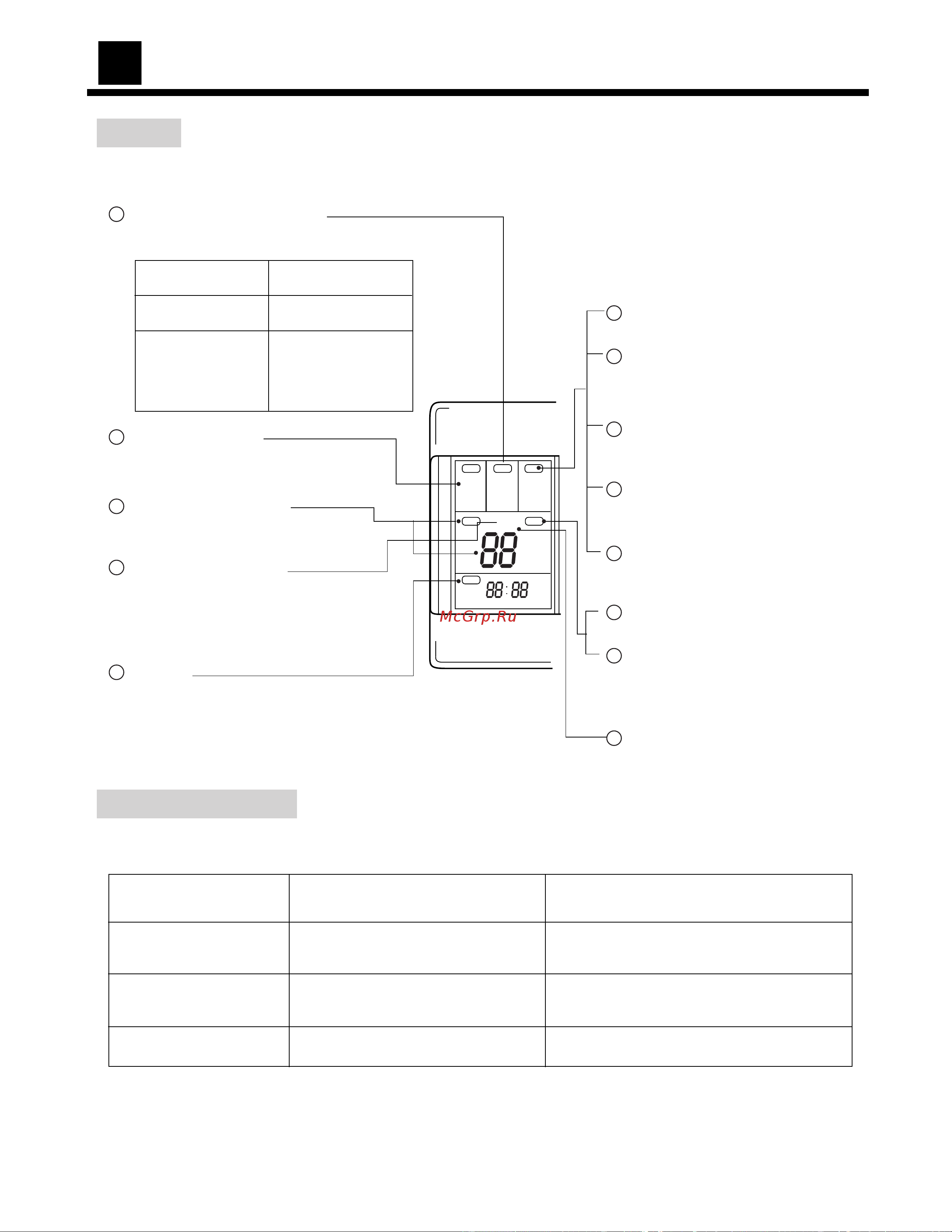

Operation Guide
10
MODE
FAN ONLY
COOL
HEAT
FAN
AUTO
HIGH
MED
LOW
FIX
CENTRAL
OPERATION
STANDBY
PREHEAT
DEFROST
FILTER
TEMP
UNIT
LOUVER
CHECK
DEMAND MANUAL
TEMER
AFITER
CONT.OFF ON ADDRESS
H M
Display
All content that can be shown on the display of remote controller are listed here to describe in details. In
practical use, only content selected can be shown.
Switch over of fan speed
Showing fan speed mode selected
Indoor unit Display of FAN
Duct type FIX
Types other than
of duct type
AUTO
HIGH
MED
LOW
Running mode
Showing selected running mode
Temperature setting
Showing selected temperature setting
check
Showing code of failure shooting
Showing number of indoor unit
with fault in display part of
temperature setting
TIMER
If timed running is set, display parts of ìpower
onî and ìpower offî will show ì TIME ON î and
ì TIME OFF î. If timed running is changed to
continuous, ì CONT î will display momentarily
then goes out.
Operation
Showing in operation.
Stand by
This is displayed when the machine can
not run as set mode while multiple in
door subassemblies are running
Preheating,defrost
This is displayed when preheating
or defrosting.
Filter
Clean air filter when this is displayed.
Central
This is displayed when using central
controller for central control mode.
Louver
Showing automatic swing.
Demand
This is displayed when unit recieved
demand instuction.
Manual
This is displayed if Louver button is
pressed while function of automatic
swing is unavailable.
Display of ìCENTRALî
Contents that can be operated with standard remote controller (YR-E02) and "CENTRAL"displays according
to setting of central controller during central management with centralized controller (YR-E01).
Besides this standard circuit controller, ìTIMERî and ìcentral controllerî can also be used to practical
control as seen from operation manuals attached with each remote controllers.
Setting of central controller "centralized" display of standard remote
controller
Contents that can be operated with remote controller
Normal control
Central control
Locked
No display
"central "
"central " flashes
Contents that can be operated with both standard
remote controller and central controller, the latest
setting works.
Only ìon/offî and "TIMED ON/OFF" can be operated.
Operation disabled.
