![Haier HC48A1VAR [15/45] Figure 7 heat pump refrigerant circuit](/img/pdf.png)
Haier HC48A1VAR [15/45] Figure 7 heat pump refrigerant circuit
![Haier HC48A1VAR [15/45] Figure 7 heat pump refrigerant circuit](/views2/1824590/page15/bgf.png)

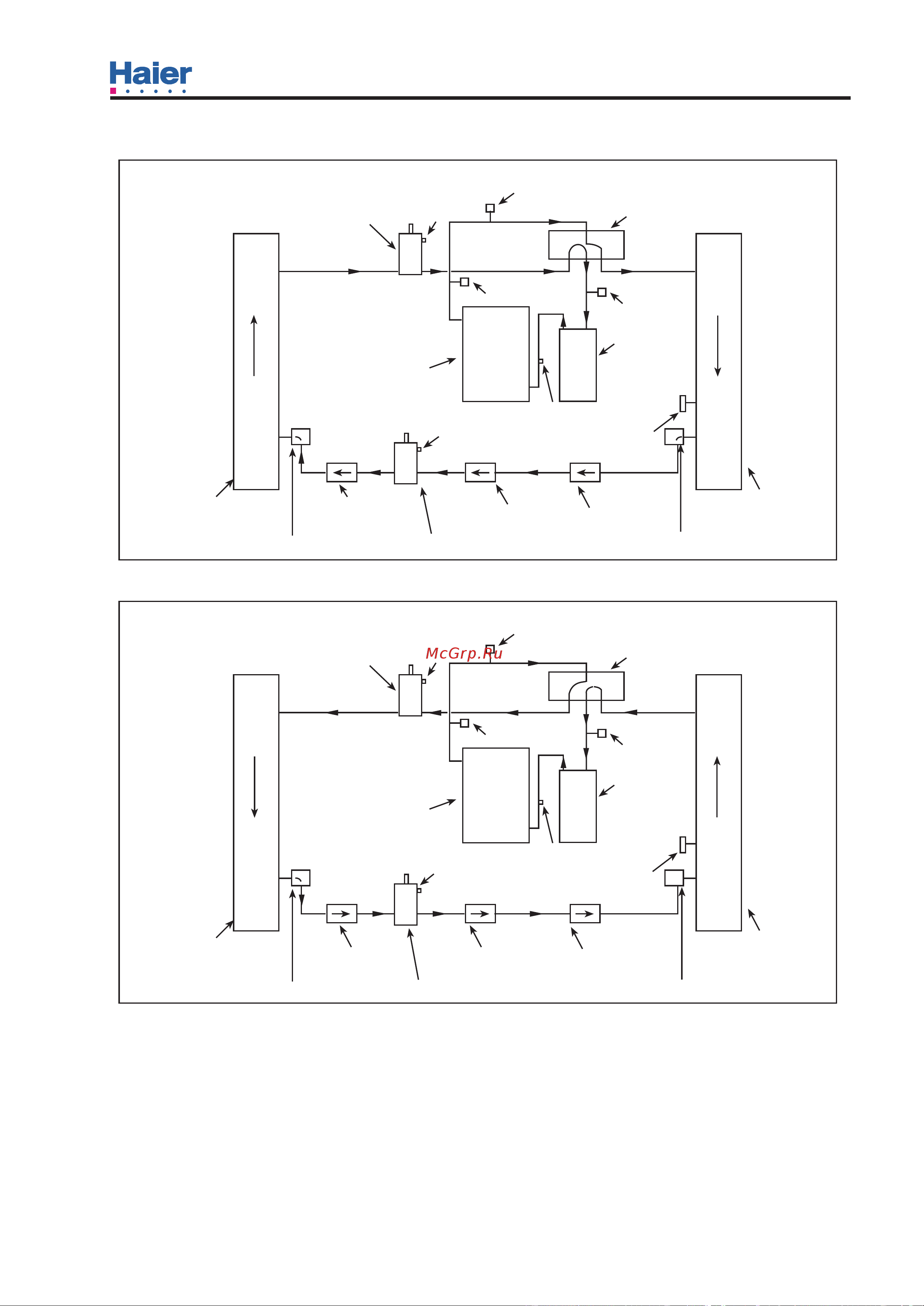

Figure 7
Heat Pump Refrigerant Circuit
SERVICE VALVE
SERVICE PORT
DISCHARGE TEMP. SENSOR
INDOOR COIL
DISTRIBUTOR
SERVICE VALVE
OUTDOOR COIL
COMPRESSOR
SERVICE PORT
ACCUMULATOR
HIGH PRESSOR
LOW PRESSOR
DEFROSED SENSOR
CHECK VALVE ORIFICE
DRYER
Cooling
SERVICE VALVE
SERVICE PORT
DISCHARGE TEMP. SENSOR
INDOOR COIL
DISTRIBUTOR
SERVICE VALVE
OUTDOOR COIL
COMPRESSOR
SERVICE PORT
ACCUMULATOR
HIGH PRESSOR
LOW PRESSOR
DEFROSED SENSOR
CHECK VALVE ORIFICE
DRYER
Heating
REVERSING VALVE
CONDENSER
EVAPORATOR
REVERSING VALVE
CONDENSER
EVAPORATOR
CHECK VALVE
ORIFICE
SERVICE PORT
SERVICE PORT
CHECK VALVE
ORIFICE
DISTRIBUTOR
DISTRIBUTOR
