Haier HB2400VA1M20 [3/15] 22 18 19 10 14 11 17 19 3 118 cm 55 cm 46 cm 50 cm 25 cm 36 cm 30 cm 43 cm 50 cm 8 cm

[2.54 cm]

PLASTIC BREAKER COVER

PRIMARY & SECONDARY

CONDENSATE DRAINS-

HORIZONTAL 3/4" NPT

[5.1 cm]

3.3"

[8.3 cm]

[5.1 cm]

TYPICAL

1.1"

[2.9 cm]

[12.7 cm]

2.4"

[ 6 cm]

1.2"

[3 cm]

INLET

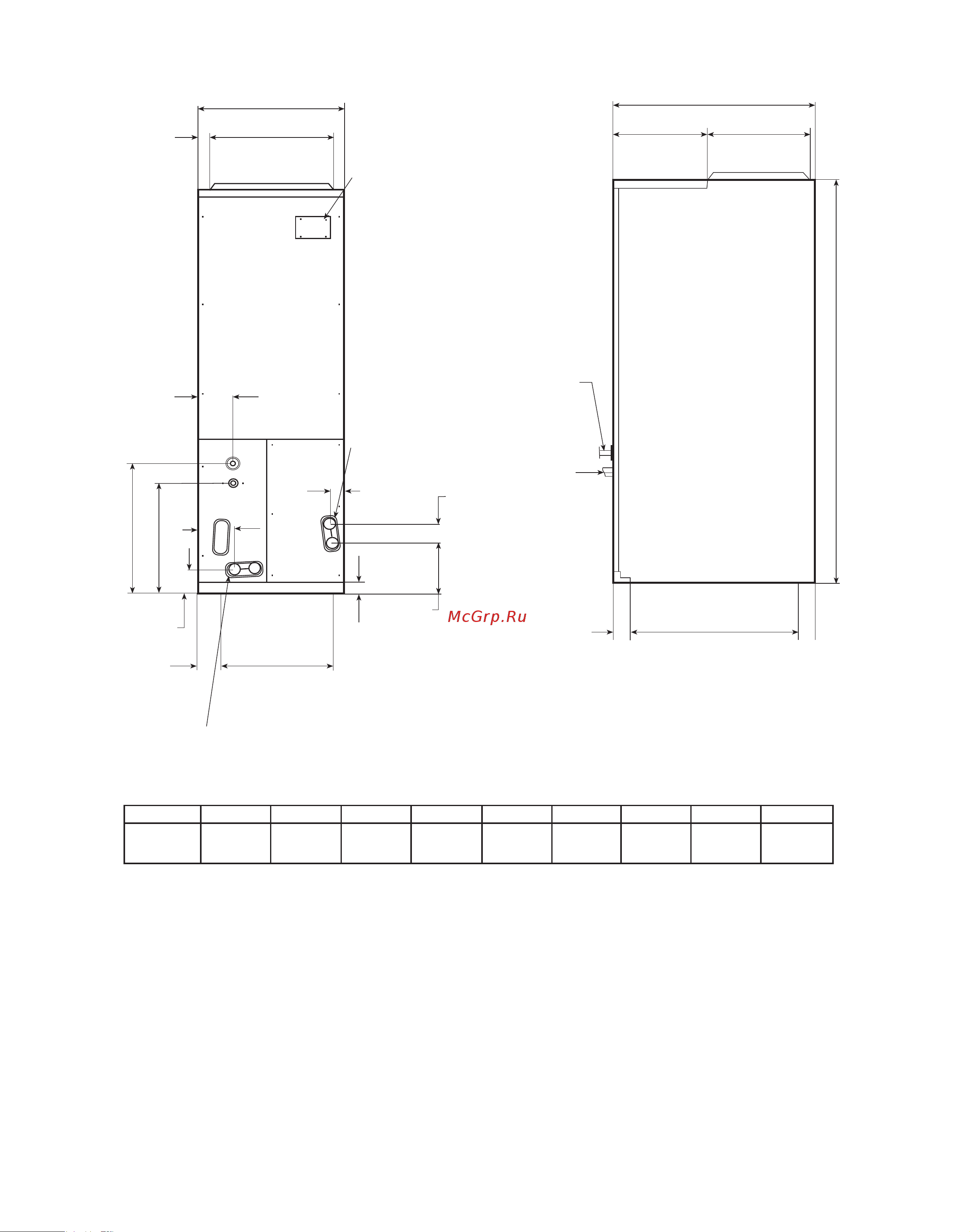

FRONT VIEW

PRIMARY & SECONDARY

CONDENSATE DRAINS-

UPFLOW 3/4" NPT-FEMALE

[2.54 cm]

INLET

RIGHT SIDE VIEW

LIQUID LINE

SUCTION LINE

11"

[29 cm]

PHYSICAL DIMENSIONS

A B C D E F G H J K

46.7 22 18.3 19.7 10 14.5 11.9 17.1 19.8 3.4

[118.7cm] [55.9cm] [46.4cm] [50.0cm] [25.4cm] [36.8cm] [30.3cm] [43.5cm] [50.3cm] [8.6cm]
