HORIZONTAL LEFT-HAND INSTRUCTIONS

Important: Read instructions below carefully.

WARNING: If incorrect knockouts are removed, flooding will occur.

5) Reinstall in the Airhandler, the "A" coil pan assembly with the horizontal drain pan on the

left-hand side.

Note: Push the assembly completely to the rear of the cavity and assure it slips into channel

bracket at the rear of the cavity.

6) Replace the J-shape metal bracket or brackets on the vertical drain pan and place the

plastic oval gasket on horizontal drain pan. Reinstall access panels and flowrator making

sure not to over torque screws. Snap in the drain cover on the right lower service panel.

7) The Airhandler can now be placed in its left horizontal position as shown in Fig.2. The

Airhandler must be leveled and then pitched 1/4" toward drain side. Important: Drain pan

must be tested for proper drainage by pouring water into the pan. Traps must be installed

on the primary drain and on the secondary drain if used.

8) In all cooling applications, a secondary drain pan must be provided by the installer and

placed under the entire unit with a separate drain line properly sloped and terminated in an

area visible to the user.

Before setting up flowrator assembly for field brazing see page 12 or read the Warning

label on the lower access panel.

10) Failure to follow this installation requirements will cancel product warranty.

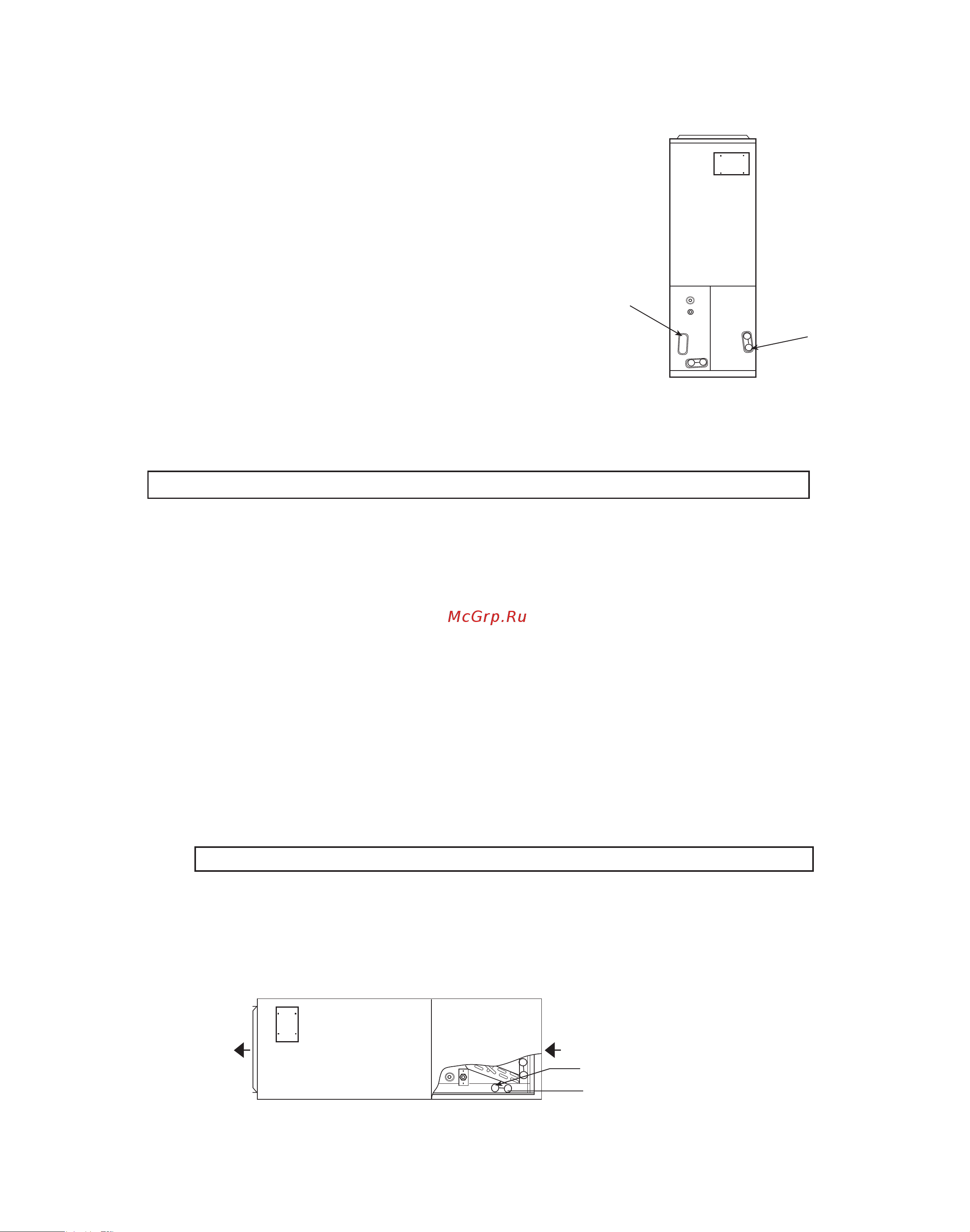

Fig.2

WARNING: The "A" coil contains 150 p.s.i.g. of air pressure.

Secondary Knockout

Primary Knockout

Air flow

oval

gasket

Plastic

Drain

cover

Fig.1
