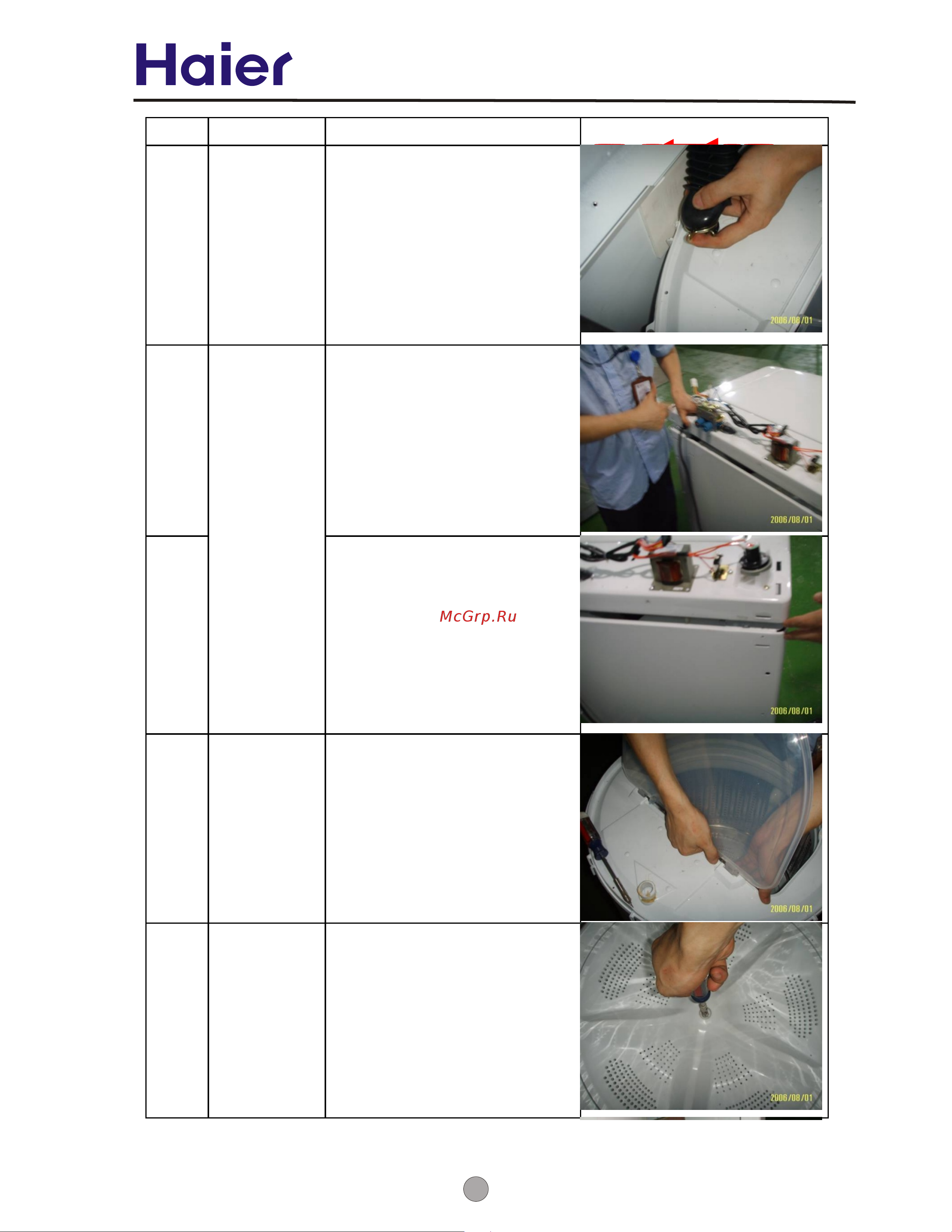

HOW TO DISASSEMBLE WASHING MACHINE
No Component Step Picture
13
the water filling
pipe
dismantle the water filling pipe
clamp
14 pull the control panel seat
15 take off the control panel seat
16
dismantle the
inner cover
pull the inner cover to dismantle
the inner cover
17
dismantle the
pulsator
unfasten the pulsator screw and
take off the pulsator
dismantle the
control panel
seat
22
