Duvet
Drum Clean Hygiene
DelayTemp.
Spin
Power
Start/
Pause
Cotton
Program
Shirts
Kids
Wear
Mix
Quick 15
Sport
Spin
Rinse+Spin
Soft
Strong
Middle
Spin speed
1000
capacity
7kg
ABT
99%
HWM70-FD10829
Hijab
Bedding
Disinfection

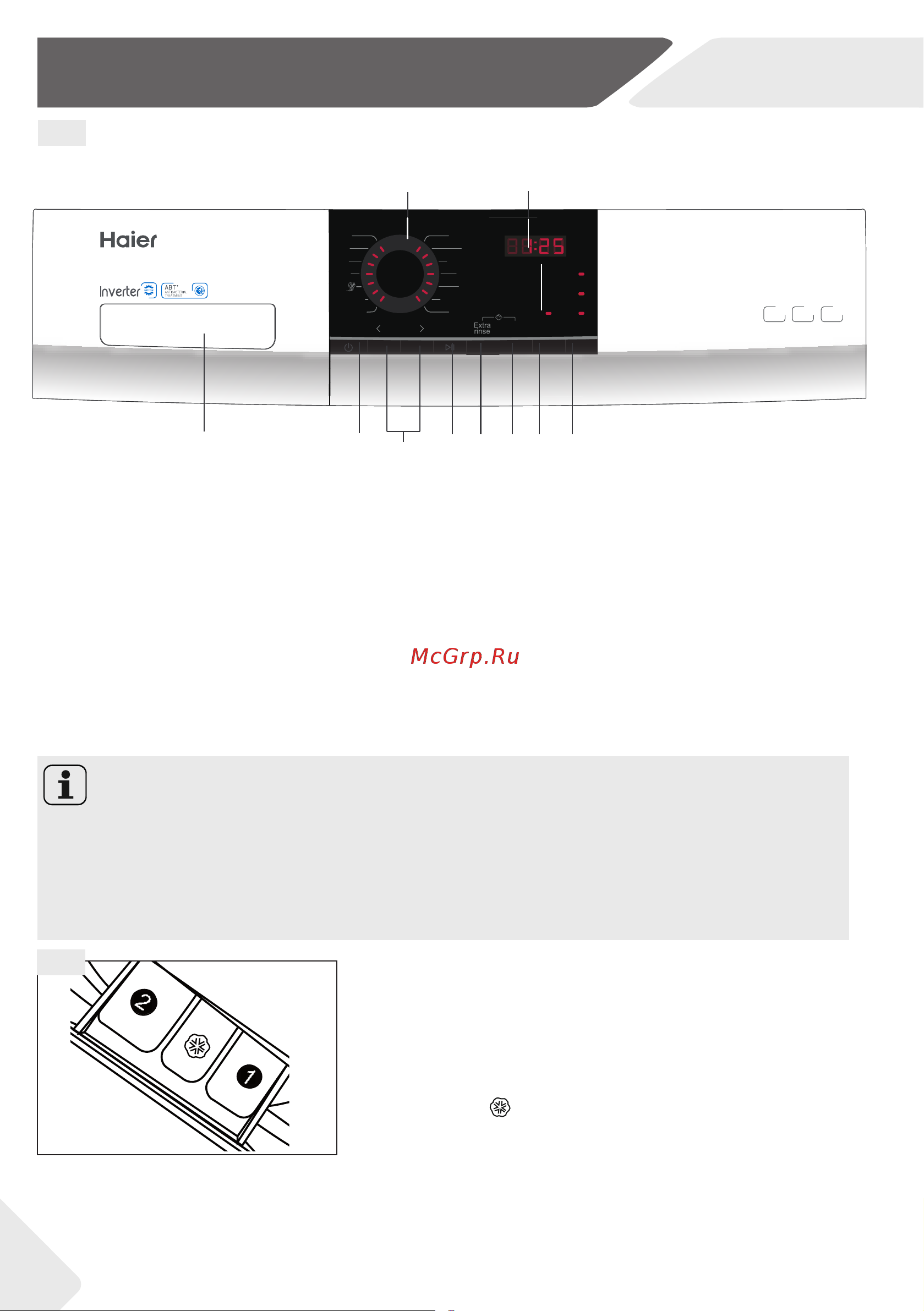

3-Control panel
8
1 Detergent /Softener drawer
2 “Power“ button
3 Programme selector
4 “Start/Pause“ button
5
“Temp.”
6
“Spin”
7 “Delay”
8
“Extra rinse”
3.1 Detergent drawer
Open the drawer, three compartments can be
seen (Fig. 3-1):
Compartment 1 : Water inlet only, no detergent
Compartment 2 : Detergent for programme
Compartment
: Softener, Conditioning agent etc.
The recommendation on the type of detergents is
suitable for the various washing temperatures, please
refer to the manual of detergent.
3-1
9 Extra rinse indicator
10 Delay indicator
11 Display
12 Programme indicator
Note : Acoustic signal
In following cases an acoustic signal sounds:
▶ when pressing a button
▶ at the end of programme
▶ in case of failures
The acoustic signal can be deselected if necessary ; see DAILY USE.
3-0
Function buttons: Indicator
1
2
3
4 5
6
7 8
12
11
