Kentatsu KSTT280HFAN1 [4/20] Accessories indoor unit

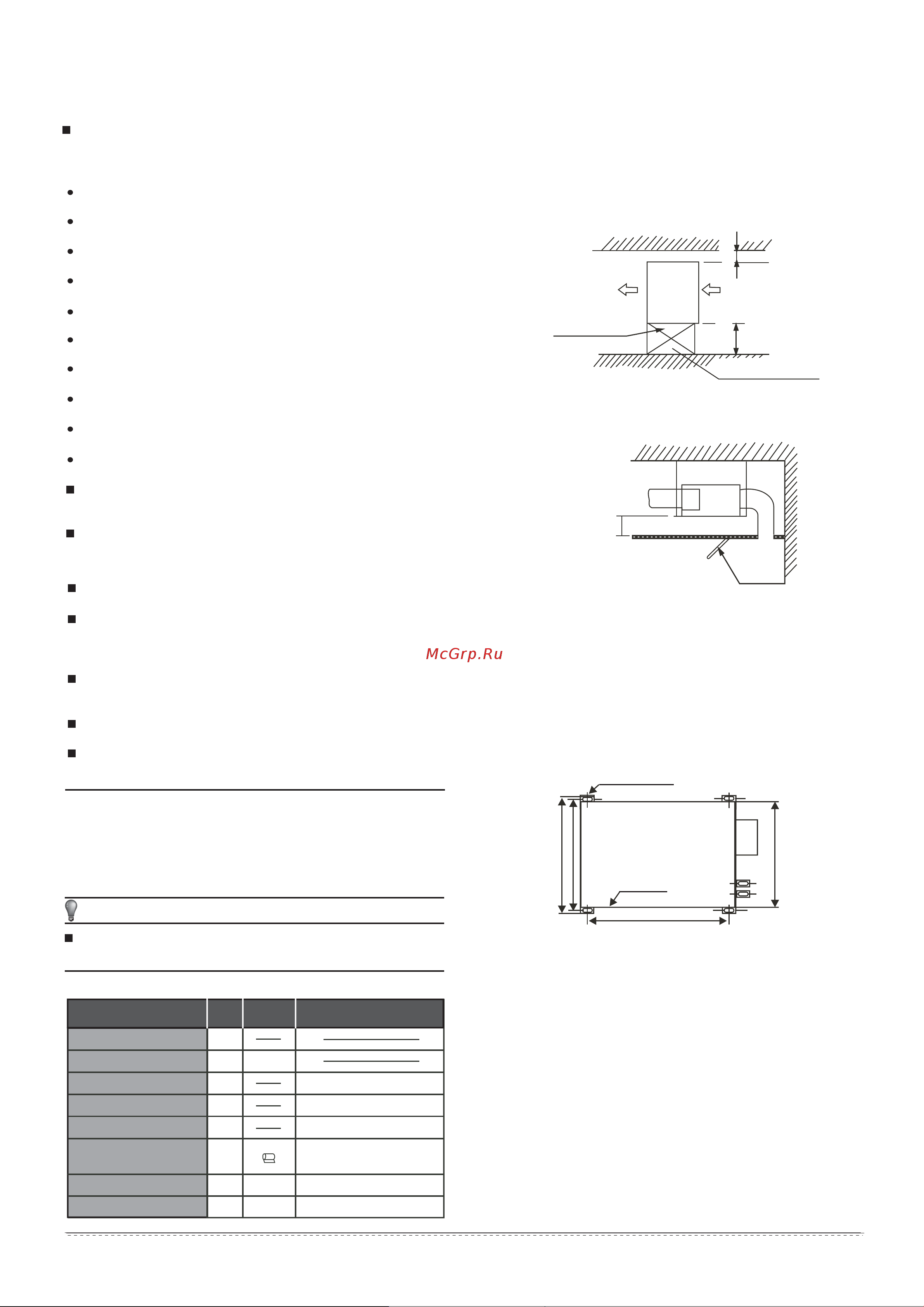

![Kentatsu KSTT280HFAN1 [4/20] Accessories indoor unit](/views2/1829790/page4/bg4.png)
2. ACCESSORIES (INDOOR UNIT)
3. INSTALLATING INDOOR UNIT
Installing the equipment in any of the following places may lead
to faults of the equipment (if that is inevitable, consult the
supplier):
The site contains mineral oils such as cutting lubricant.
Seaside where the air contains much salt.
Hotpring area where corrosive gases exist, e.g., sulfide gas.
Factories where the supply voltage fluctuates seriously.
Inside a car or cabin.
Place like kitchen where oil permeates.
Place where strong electromagnetic waves exist.
Place where flammable ga ses or materials exist.
Place where acid or alkali gases evaporate.
Other special environments.
Install the unit where enough space of installation and mainte-
nance is available.
Install the unit where the air inlet and air outlet are free from
obstacles and strong wind.
Install the unit in a dry and well ventilated place.
Install the unit where the bearing surface is level and can bear
weight of the unit, and is suitable for installing the unit horizon-
tally without increasing noise or vibration.
Install the unit where the operation noise and the expelling of air
do not affect neighbours.
Install the unit where no flammable gas is leaked.
Install the unit where it is convenient for pipe connection and
electric connection.
NOTE
If in the wire control mode, the accessories do not include
display panel assembly remote controller or mounting bracket.
1
1
1
1
1
2
1
2
Accessory name
Qty.
Purpose
Owner’s manual
Shape
Installation manual
Restriction assembly
D isplay board subassembly
Protective sleeve for refrigerant
inlet and outlet pipes
Remove controller
AAA battery
Water connective pipe
This manual
Connect to system
Connect to water drainage pipe
Connect to control signal
Table.2-1
2
Installation Manual
Inspection orifice
Note: Ensure that the minimum
drain gradient is over 1/100.
Fig.3-1
Fig.3-2
Maintenance space
Inspection orifice
600mmX600mm
Over 600 mm
Over 500 mm
3.1 Installation Space
Ensure enough space required for installation and maintenance.
3.2 Install Φ10 Pendant Bolts Or Ground Bolts
Pendant bolt hole
Air inlet side
Fig.3-3
KSTT240/280H(C)FAN1 (Unit:mm)
118 0
840
800
760
4-12×72
