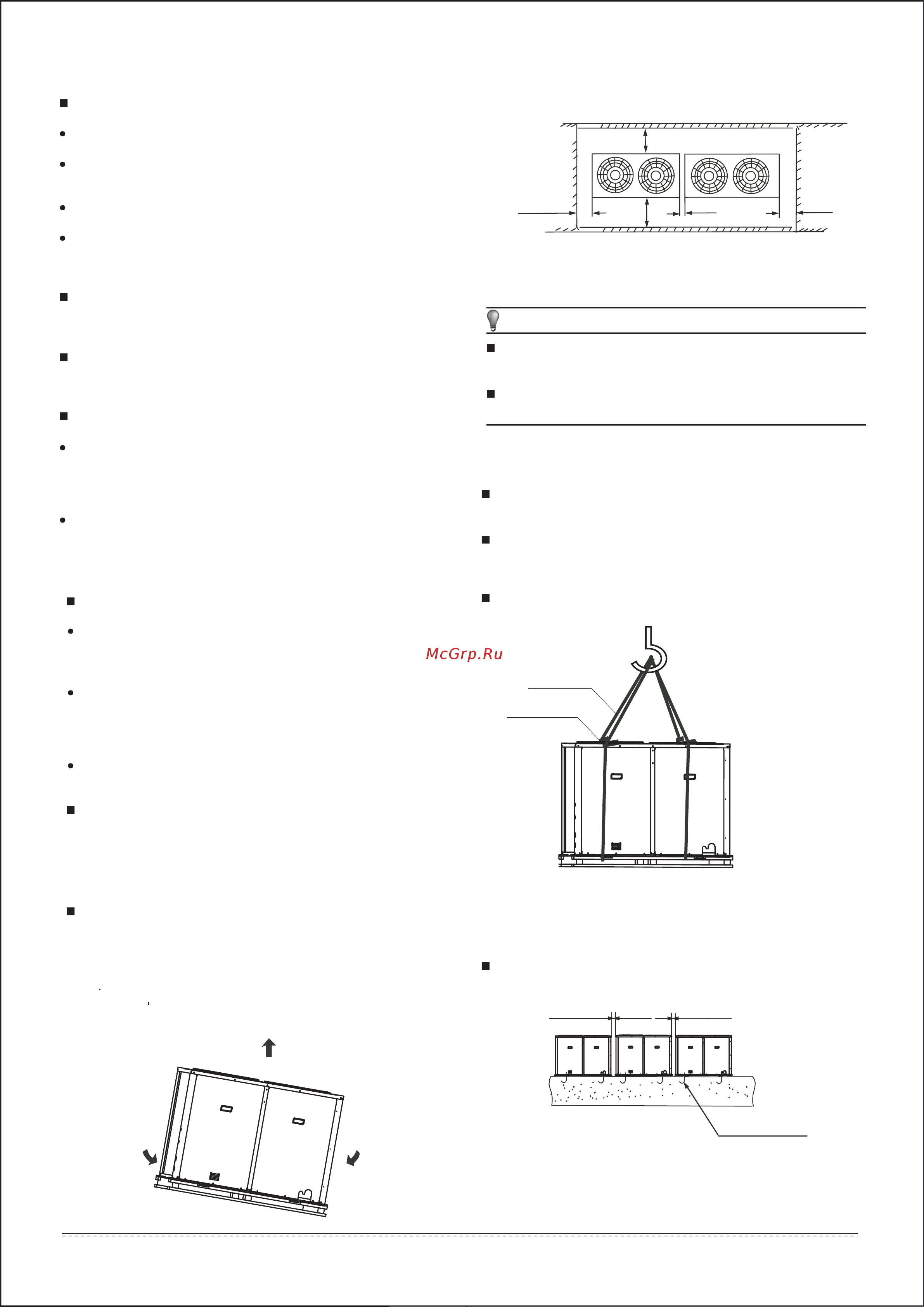

Installation Manual
Refrigerant pipe
The refrigerant pipes must have the specified diameter.
Nitrogen of a certain pressure must be filled into the refrigerant
pipe before welding.
The refrigerant pipe must undergo heat insulation treatment.
After the refrigerant pipe is installed completely, the indoor unit
cannot be powered on before performing the airtight test and
creating a vacuum.
Refrigerant pipe
The refrigerant pipe must undergo the airtight test [with
2.94MPa (30kgf/cm
2
G) nitrogen].
Creating a vacuum
Be sure to use the vacuum pump to create a vacuum of the
connective pipe at both air side and liquid side concurrently.
Refrigerant replenishment
If the pipe is longer than the reference pipe, the refrigerant
replenishment quantity for each outdoor unit should be
calculated through the formula obtained according to the actual
length of the pipe.
Record the refrigerant replenishment quantity, actual length of
pipe and the height difference of the indoor & outdoor units onto
the operation confirmation table (on the electric control box) of
the outdoor unit in advance for future reference.
Fig.4-3
Fig.4-4
4.3 Convey Outdoor Unit
4.4 Installing The Outdoor Unit
Steel wire
Guard board
≥200 mm
≥200 mm
M12 foundation bolt
4 screws for 1 unit
Use 4 steel ropes of a f6mm or bigger size to hoist the outdoor
unit and convey it into the room.
In order to prevent scratch and deformity the outdoor unit, apply
a guard board to the surface of contact between the steel wire
and the air conditioner.
Remove the cushion for use in the transport after finishing the
transport.
As shown in Fig.4-4, leave an interval of 100mm between the
outdoor units.
The distance of the foundation bolt is shown in Fig.4-5.
NOTE
In case any obstacles exist above the outdoor unit, such
obstacles must be 2000mm above the outdoor unit.
If miscellaneous articles are piled around the outdoor unit, such
articles must be 400mm below the top of the outdoor unit.
Fig.4-1
Fig.4-2
When installing the unit, leave a space for maintenance shown
in the following figure. Install the power supply at the side of the
outdoor unit. For installation procedure, see the relevant
installation manual.
Ensure enough space for installation and maintenance.(see
Fig.4-1 and Fig.4-2)
4.2 Installation Space
Installation & maintenance surface
Air outlet
Air inlet
Air outlet
Top view of the outdoor unit (multiple units installed)
≥1000 mm
≥1000 mm
≥200 mm
≥1000 mm
≥1000 mm
Electric wiring
Select the power supply capacity and wire size according to the
design manual. The power wire size of the air conditioner should
be greater than that of ordinary motors.
In order to prevent misoperation of the air conditioner, do not
interleave or entwine the power cable (380V-415V 3N~ 50Hz)
with the connection wires (low-voltage wires) of the
indoor/outdoor unit.
Power on the indoor unit after performing the airtight test and
making a vacuum.
Trial run
Perform the trial run only after the outdoor unit has been
powered on for over 12 hours.
