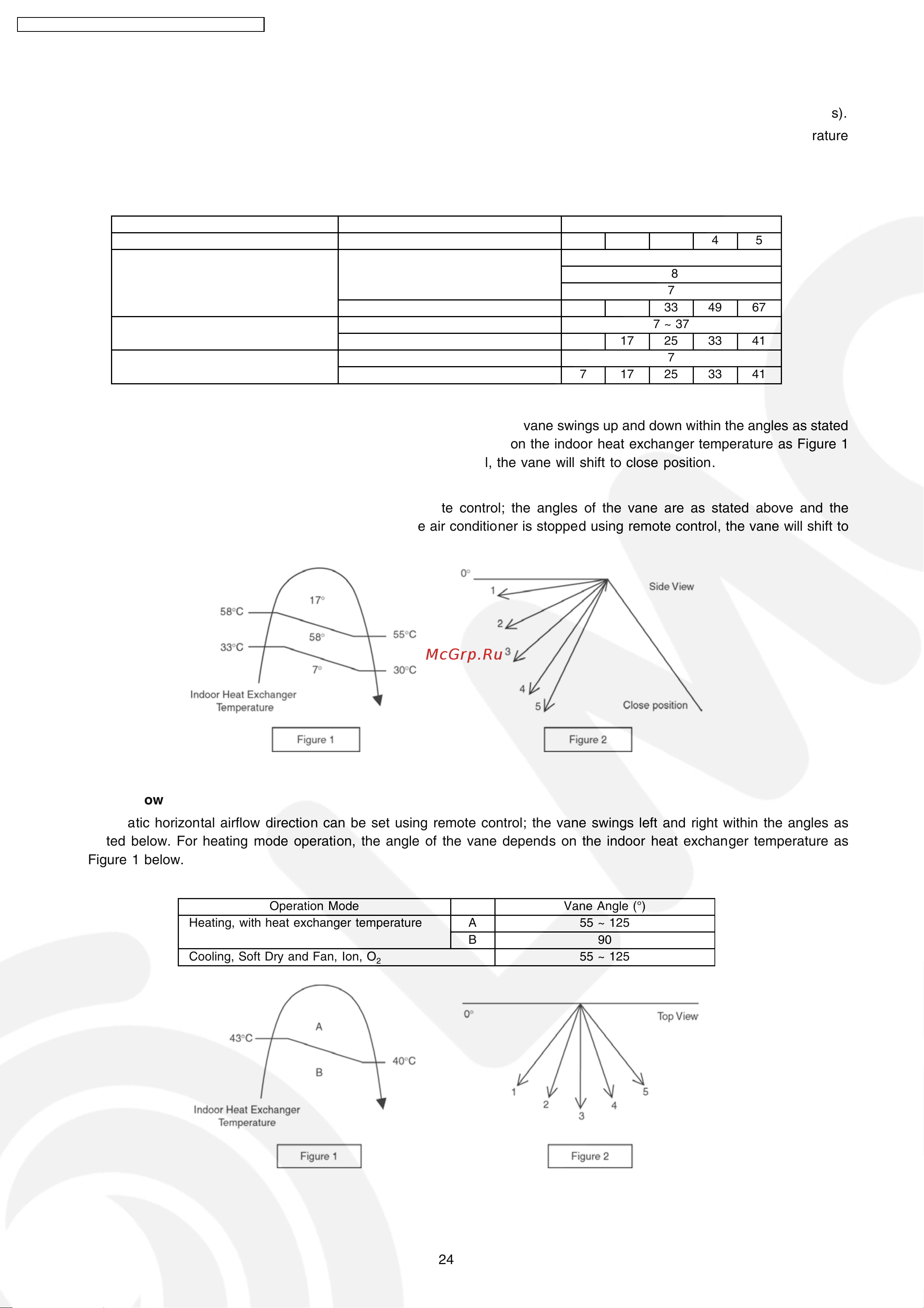

8.1.9. Airflow Direction

1. There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by vertical vanes).

2. Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat exchanger temperature

and intake air temperature) and manual (angles of direction can be adjusted using remote control).

Vertical Airflow

Operation Mode Airflow Direction Vane Angle (°)

1 2 3 4 5

Heating Auto with Heat Exchanger 17

1. Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the angles as stated

above. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Figure 1

below. When the air conditioner is stopped using remote control, the vane will shift to close position.

2. Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above and the

positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control, the vane will shift to

close position.

Horizontal Airflow

1. Automatic horizontal airflow direction can be set using remote control; the vane swings left and right within the angles as

stated below. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as
