Panasonic CS-XE9DKE [35/108] Protection control for heating operation

8.2.3. Protection Control For Heating Operation

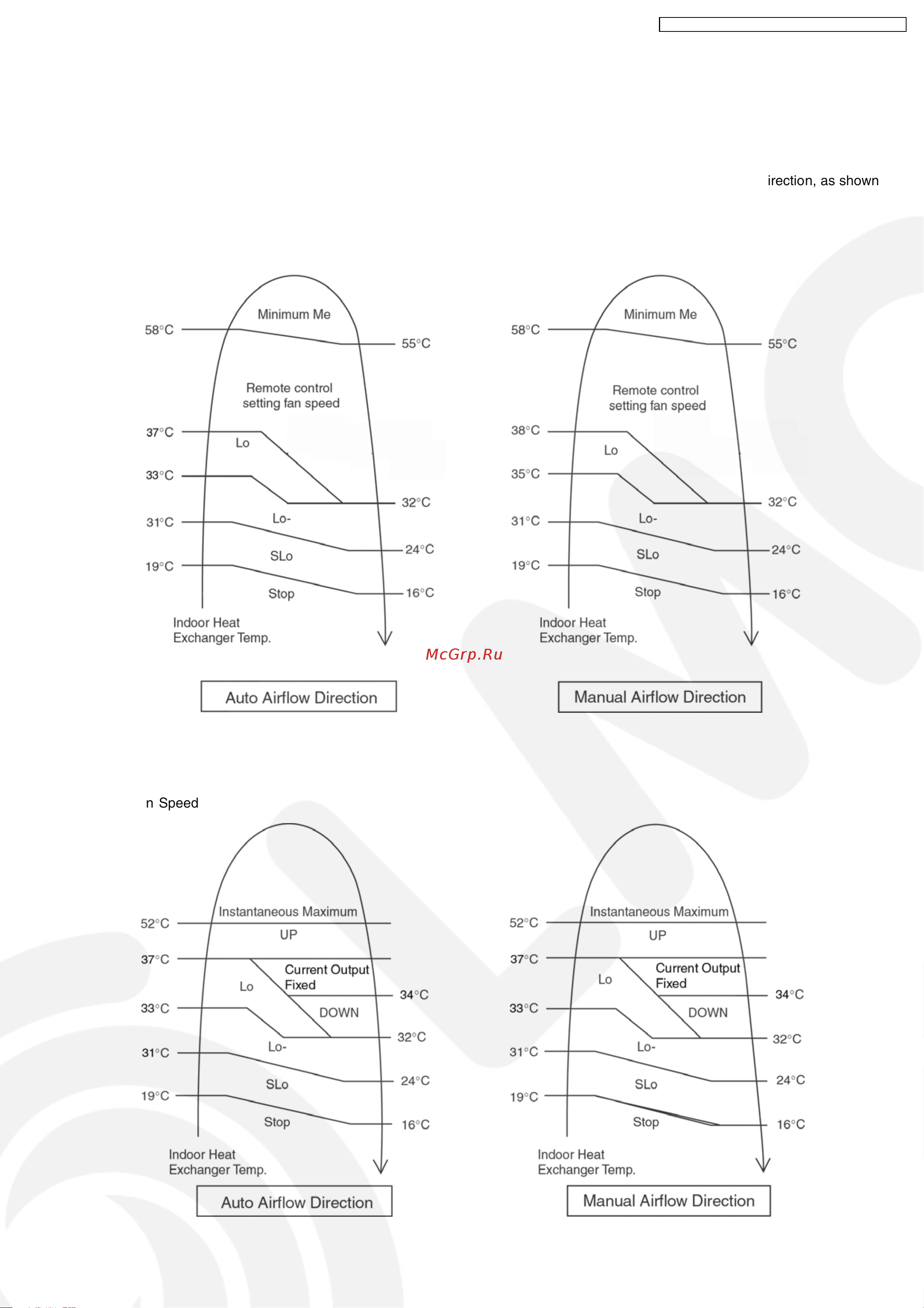

8.2.3.1. Anti Cold Draft Control

Indoor fan speed varies in accordance to indoor heat exchanger temperature, based on type of air volume and direction, as shown

below.

1. Manual Fan Speed

2. Auto Fan Speed

CS-XE9DKE CU-XE9DKE / CS-XE12DKE CU-XE12DKE
