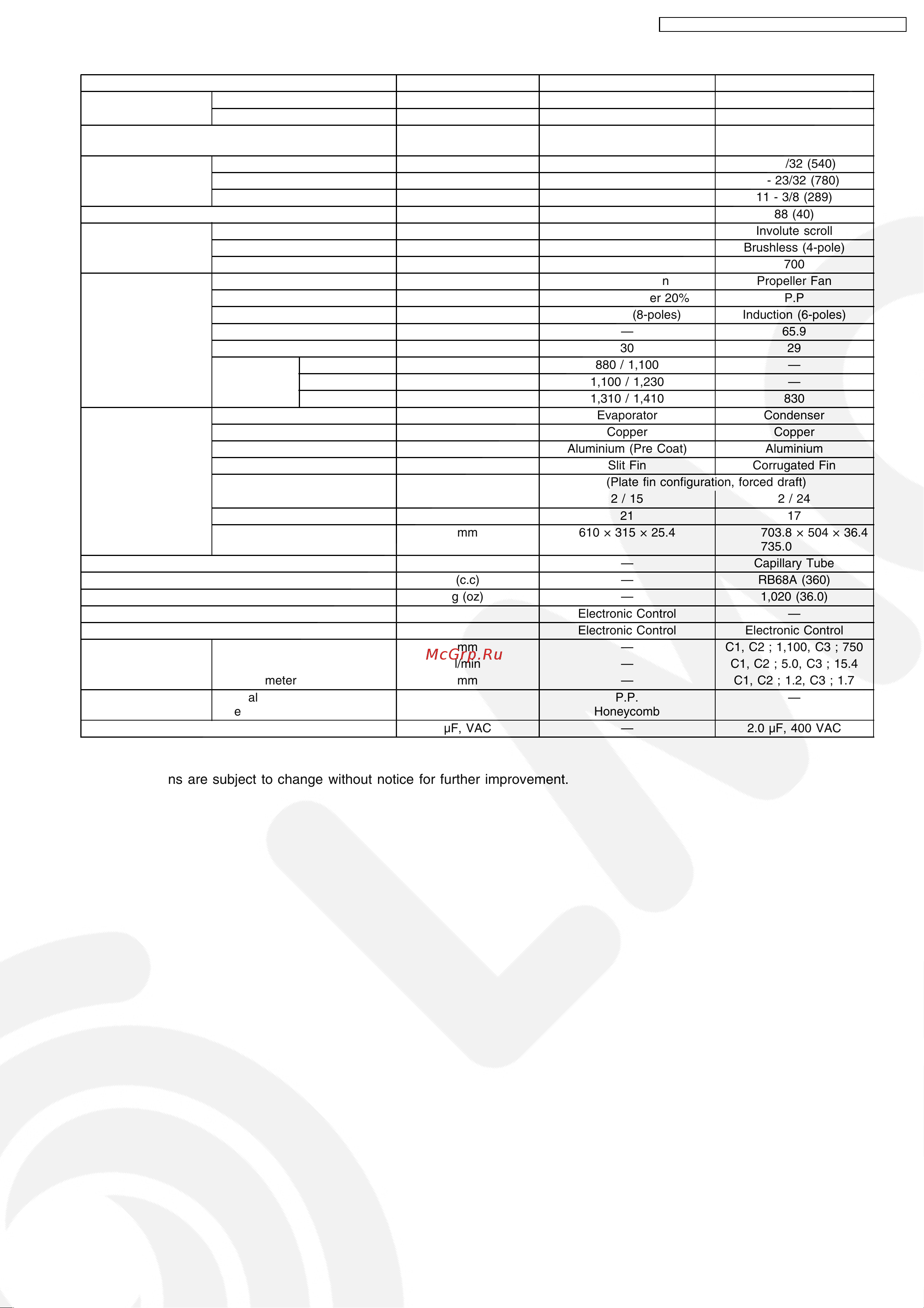

Unit CS-XE12DKE CU-XE12DKE
Drain
Hose
Inner diameter mm 16 —
Length m 0.65 —
Power Cord Length
Number of core-wire
2.1 m
3 core wires × 1.0 mm
2
—
—
Dimensions Height inch (mm) 10 - 26/32 (275) 21 - 9/32 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 9 - 9/32 (236) 11 - 3/8 (289)
Net Weight lb (kg) 22 (10.0) 88 (40)
Compressor Type — Involute scroll
Motor Type — Brushless (4-pole)
Rated Output W — 700
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% P.P
Motor Type Transistor (8-poles) Induction (6-poles)
Input W — 65.9
Rate Output W 30 29
Fan Speed Lo (Cool/Heat) rpm 880 / 1,100 —
Me (Cool/Heat) rpm 1,100 / 1,230 —
Hi (Cool/Heat) rpm 1,310 / 1,410 830
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium
Fin Type Slit Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2/15 2/24
FPI 21 17
Size (W × H × L) mm 610 × 315 × 25.4 703.8
735.0
× 504 × 36.4
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — RB68A (360)
Refrigerant (R410A) g (oz) — 1,020 (36.0)
Thermostat Electronic Control —
Protection Device Electronic Control Electronic Control
Length mm — C1, C2 ; 1,100, C3 ; 750
Capillary Tube Flow Rate l/min — C1, C2 ; 5.0, C3 ; 15.4
Inner Diameter mm — C1, C2 ; 1.2, C3 ; 1.7
Air Filter Material
Style
P.P.
Honeycomb
—
Fan Motor Capacitor µF, VAC — 2.0 µF, 400 VAC
•
Specifications are subject to change without notice for further improvement.
9
CS-XE9DKE CU-XE9DKE / CS-XE12DKE CU-XE12DKE
