Panasonic CS-F50DB4E5 [43/110] Installation of decorative panel

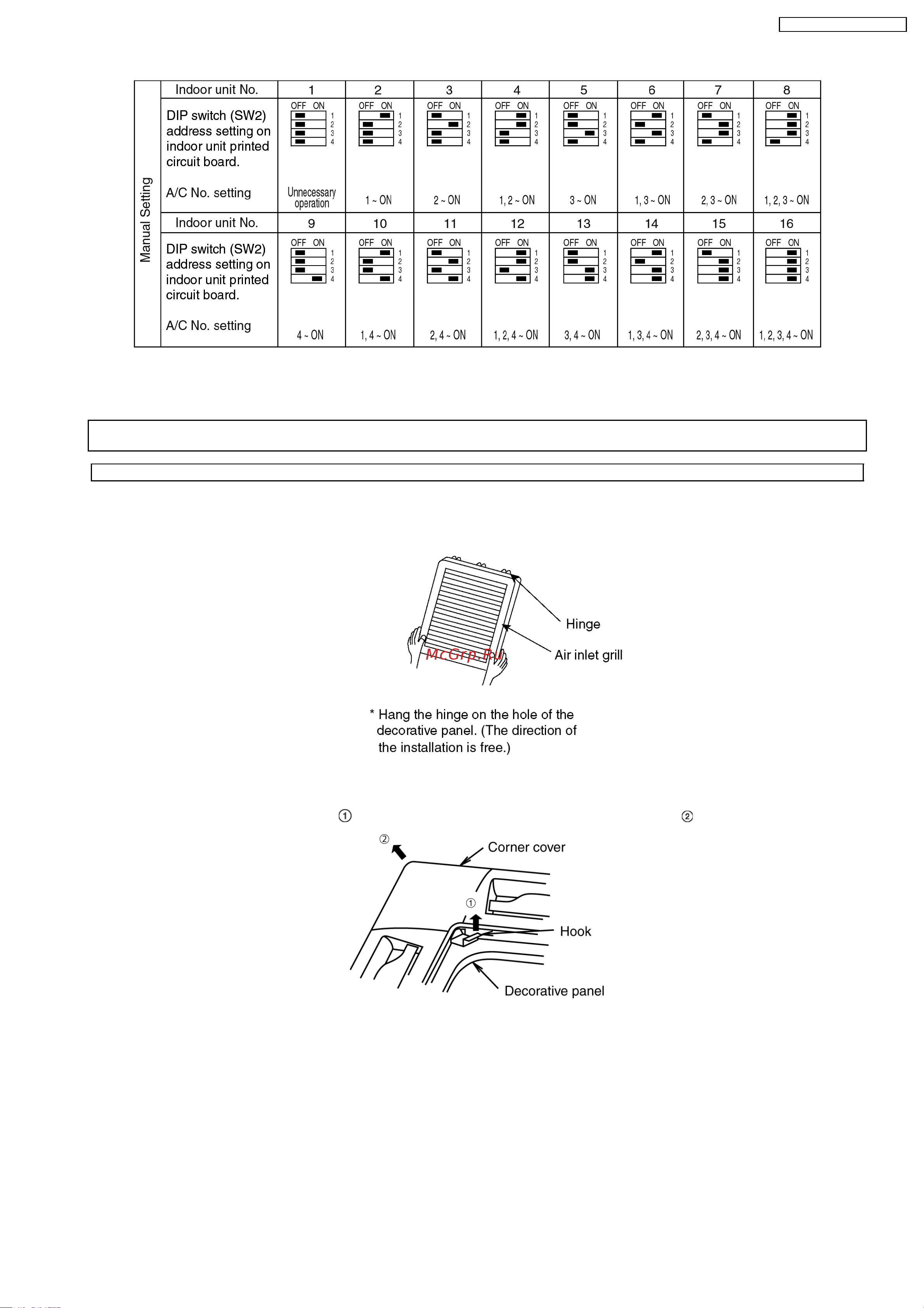

10.4.9. Installation of decorative panel

The decorative panel has its installation direction.

Confirm the direction by displaying of the piping side.

Before installing the decorative panel, always remove the paper template.

1. Remove the air inlet grill from the decorative panel.

2. Remove the corner cover in 4 corner places.

Pull hook of corner cover as direction

, at same time remove it by sliding out in direction .

3. Fix the hanger (2 pieces) of the decorative panel to the indoor unit.

There is direction information at decorative panel [PIPING SIDE] indication meaning the direction of piping side.
