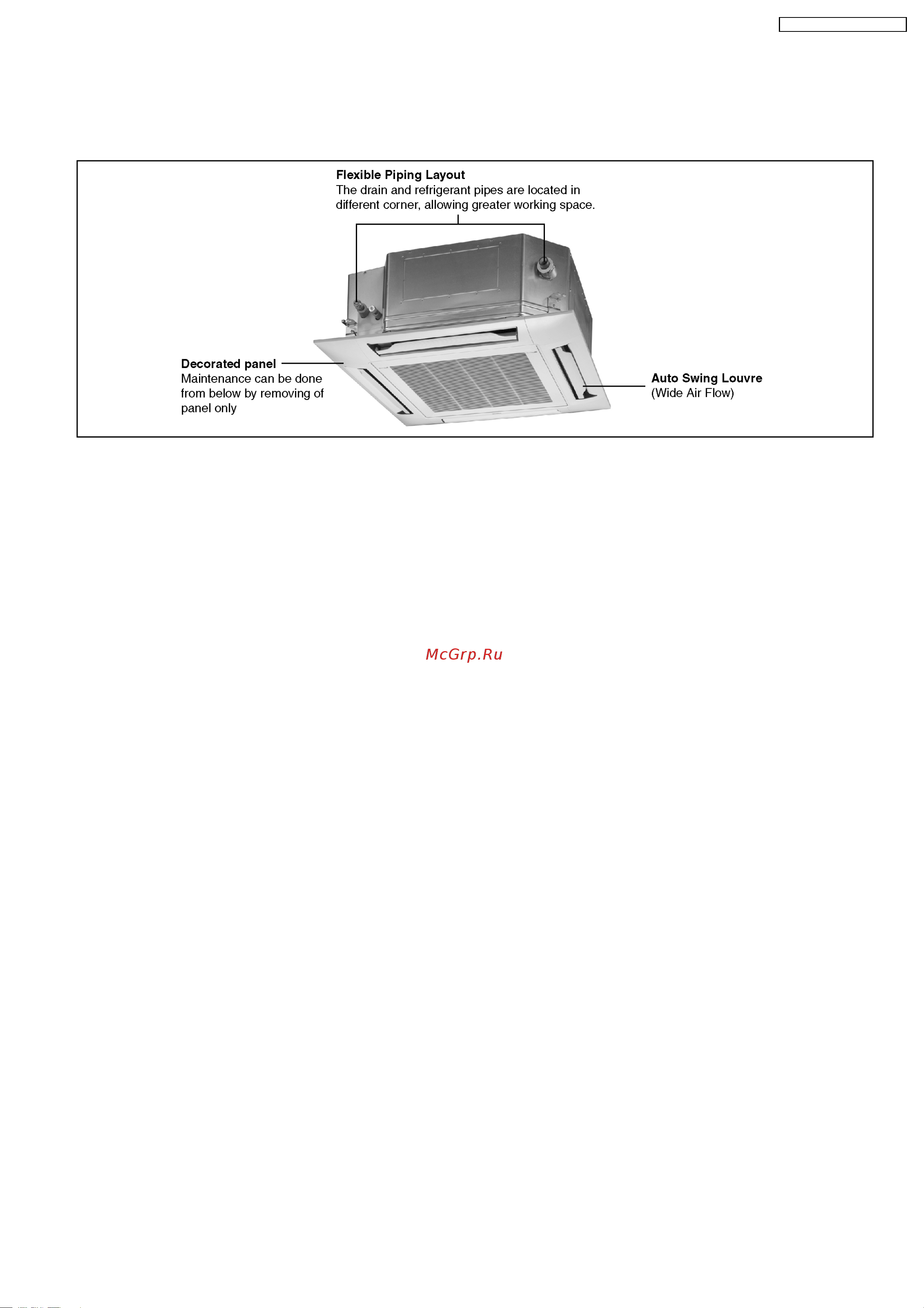

2.1. Variety of excellent features
2 Features
2.1.1. Compact design
•
• •
•
The height is only 288 mm and can be installed even where the space is limited.
2.1.2. Automatic restart function
•
• •
•
When the electric power comes back after a power failure, the unit itself automatically restarts the operation in the pre-failure
mode.
2.1.3. Auto fan mode (indoor unit)
•
• •
•
Auto fan mode is added besides Hi, Me and Lo.
It automatically adjusts the fan speed according to the indoor temperature.
2.1.4. Dry mode function
•
• •
•
Dry mode can make a comfortable indoor environment during wet season.
2.1.5. Quiet operation
•
• •
•
The sound level is as low as 42 dB (A) for model CS-F50DB4E5 and suitable for offices, shops, homes etc., where quiet
operation is essential.
2.1.6. Auto Swing Louvre
•
• •
•
The air flow angle can be changed automatically (or manually) to an angle between 10° to 70° using the remote control.
2.1.7. Low ambient cooling operation
•
• •
•
Cooling operation is possible at outdoor temperature of -5°C.
