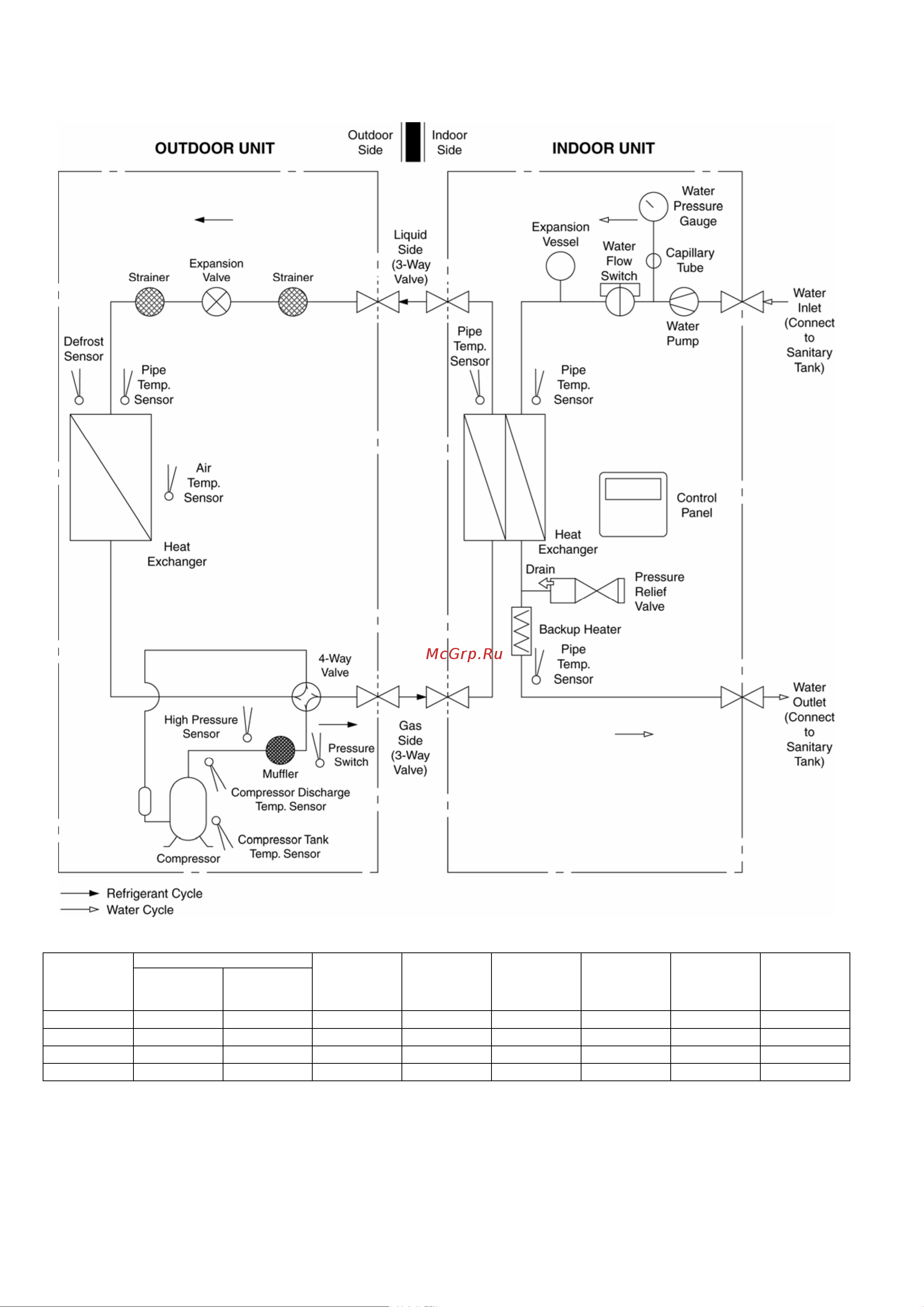

6. Refrigeration and Water Cycle Diagram
Piping size
Model
Gas Liquid
Rated
Length
(m)
Common
Length
(m)
Max
Elevation
(m)
Min.
Piping
Length
(m)
Max.
Piping
Length
(m)
Additional
Refrigerant
(g/m)
UD09CE8 5/8” 3/8” 7 30 30 3 40 50
UD12CE8 5/8” 3/8” 7 30 30 3 40 50
UD14CE8 5/8” 3/8” 7 30 30 3 40 50
UD16CE8 5/8” 3/8” 7 30 30 3 40 50
* If piping length is over common length, additional refrigerant should be added as shown in the table.
