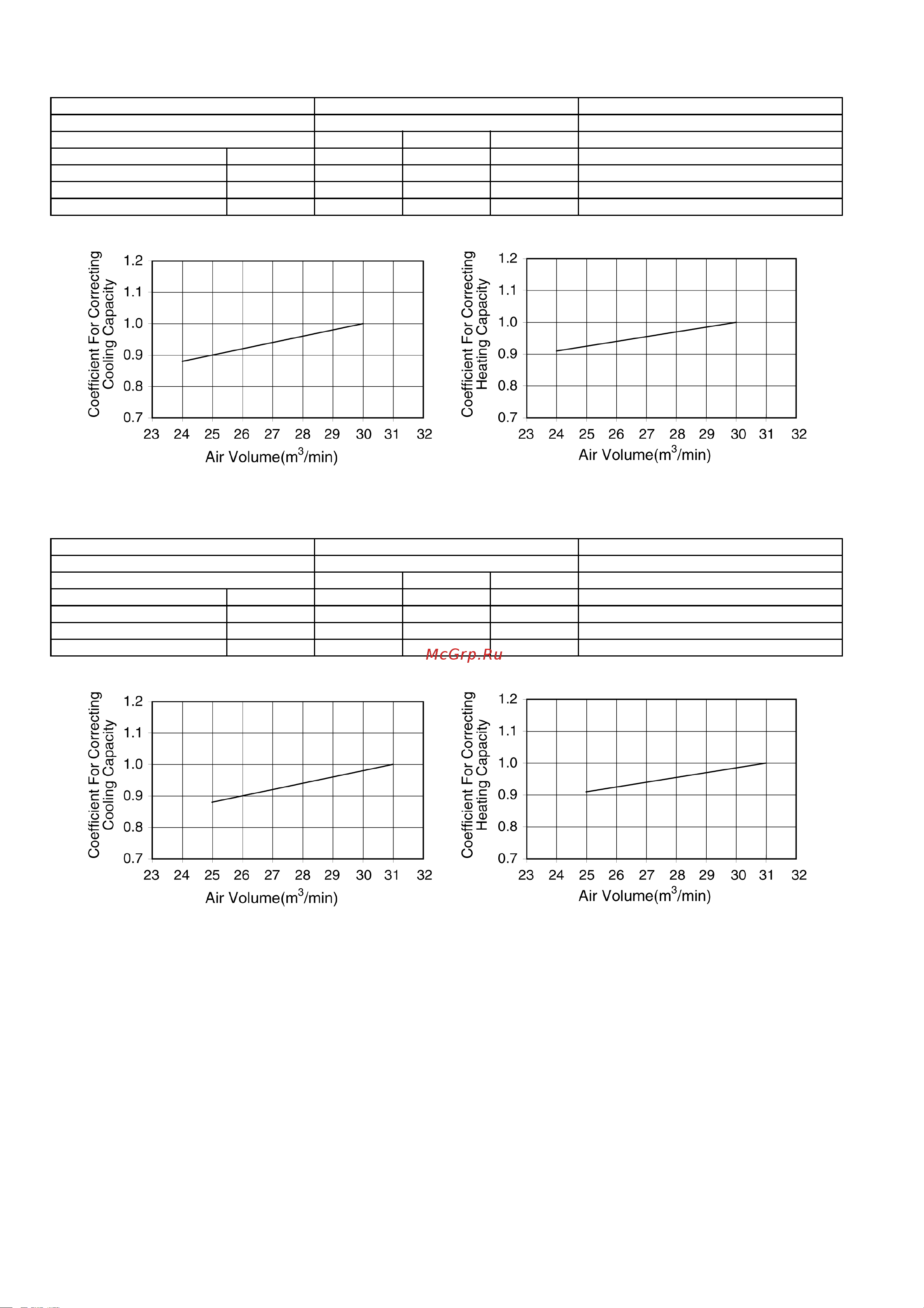

Panasonic CS-F50DTE5 / CU-B50DBE8 [128/150] Cs f34dte5

CS-F34DTE5

ITEM/MODEL Indoor Unit Outdoor Unit

CS-F34DTE5 CU-B34DBE5/8

MODE Hi Me Lo Hi

Air Volume m

/min 30 27 24 90

Running Current A 0.620 0.520 0.440 1.03

Power Consumption kW 0.153 0.123 0.098 223.30

Fan Speed r/min 1125 1000 900 781/774

CS-F43DTE5

ITEM/MODEL Indoor Unit Outdoor Unit

CS-F43DTE5 CU-B43DBE8

MODE Hi Me Lo Hi

Air Volume m

/min 31 28 25 96

Running Current A 0.778 0.521 0.414 1.06

Power Consumption kW 0.164 0.123 0.880 228.79

Fan Speed r/min 1200 1120 1000 769/763

128
