9.8.9. Valve Error Detection Control
• This control is to protect the compressor.
• Valve error is detected if comply with condition below:
− Power is on for the first time and within 5 minutes from compressor starts (However, the unit is considered power on for first
time when compressor starts operating continuously for 7 minutes).
− Indoor heat exchanger temperature at compressor start -3°C < current heat exchanger temperature for 1 minutes.
• During this error, four-way valve error is displayed; compressor is shutdown.
9.8.10. High-pressure Switch Disconnection Error Detection Control
• High-pressure switch disconnection is detected when high-pressure switch input continuously open for 1 minutes while the
compressor shutdown.
• During this error, high-pressure switch error is displayed.
9.8.11. Low-pressure Switch Disconnection Error Detection Control
• Low-pressure switch disconnection is detected when low-pressure switch input continuously open for 1 minutes while
compressor shutdown.
• During this error, low-pressure switch error is displayed.
9.9. Test Run
• Test run is necessary after installation is completed.

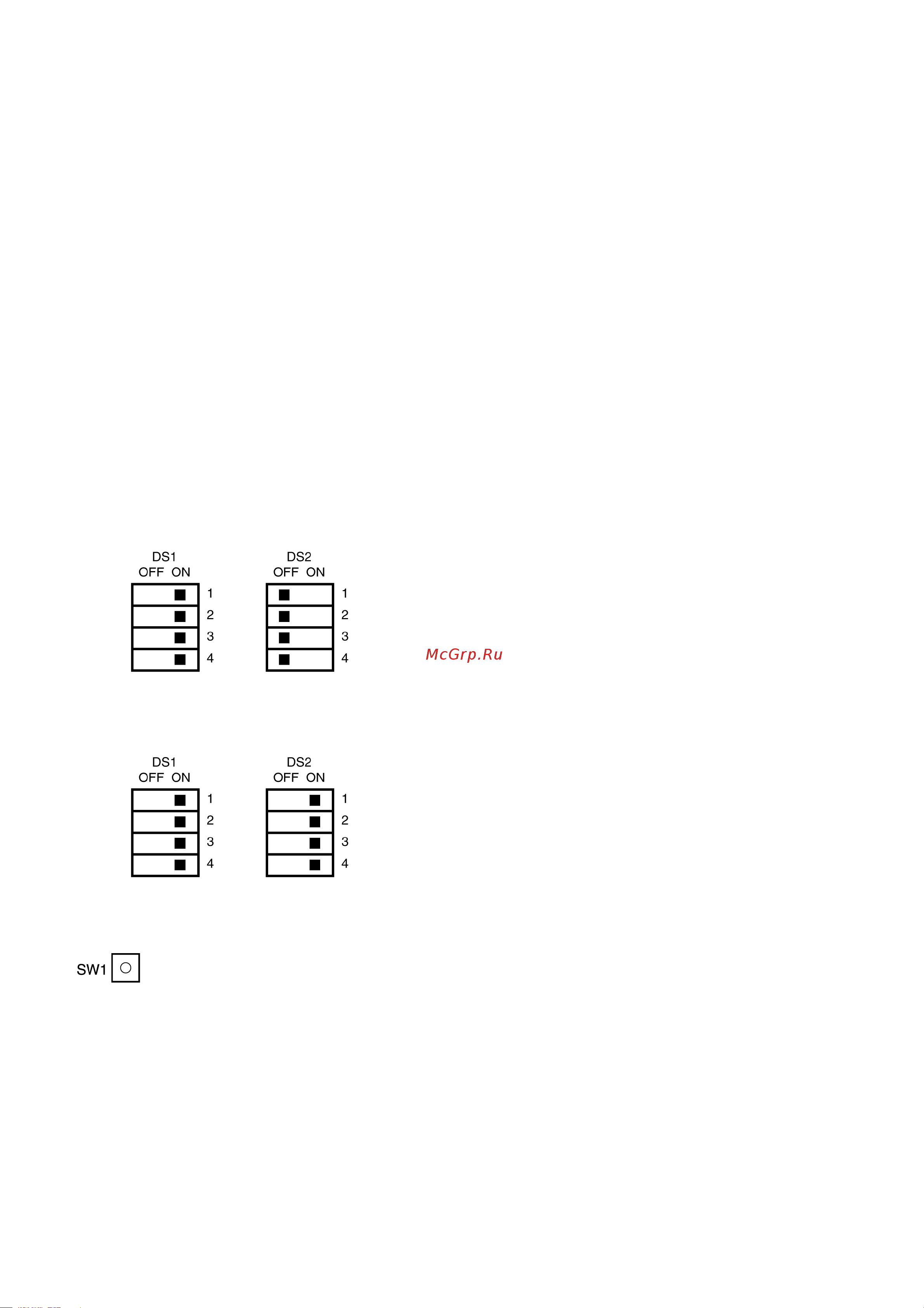

• To enable forced cooling test run, at outdoor PCB, set the DS1 to ON position and DS2 to OFF position.
• To enable forced heating test run, at outdoor PCB, set the DS1 to ON position and DS2 to ON position.
• Press Test Run button at outdoor pcb for 1 second.
42
