9.7.4. Hot Start Operation Control
• Hot start control operates at the starting of heating operation, where [PREHEAT] displayed at wired remote control / [POWER
LED] blinking at control panel of indoor unit.
• Indoor fan stops and louver angle fixed at upper limit in spite of any setting of remote control until hot start control ends (indoor
heat exchanger temperature increases or 4 minutes past heating operation starts), fan and louver control resume.
9.7.5. Energy Saving
• During Operation, press "Economy" button at remote control to enable Energy Saving Operation.
• The air conditioner judges the stable condition, where the different between indoor suction temperature and setting temperature
is 1°C for 30 minutes and moderately shifts the set temperature in 0.5°C steps (Maximum 2°C) to control energy saving
operation.
• If temperature different is out of range, energy save operation will not start.
• Energy Save Operation is canceled by pressing the "Economy" button again.

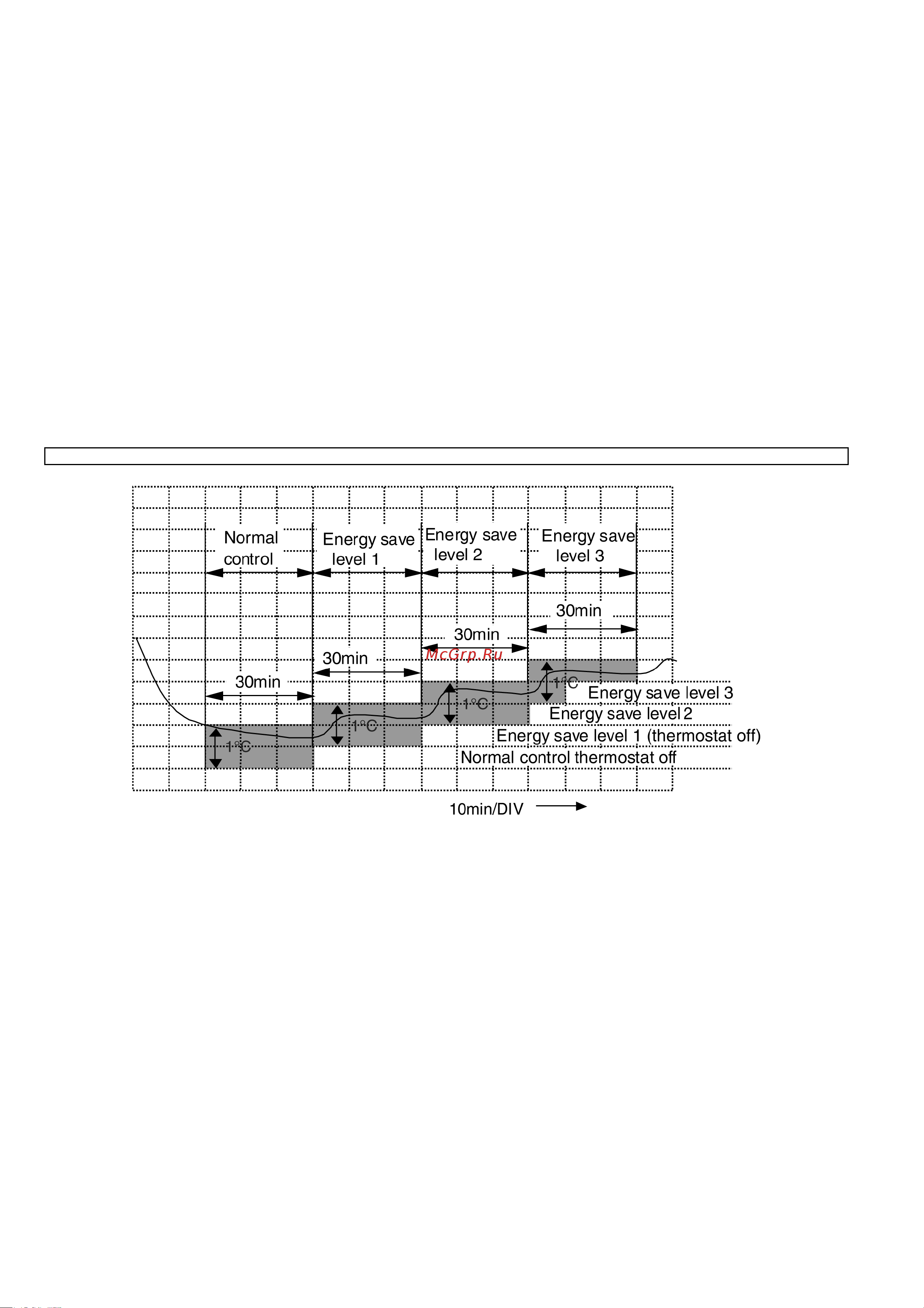

Energy save control time chart
9.7.6. Dew Form Prevention Control
• During Cooling or Soft Dry operation, if outdoor temperature is less than 30ºC, and indoor fan speed is low or auto setting,
indoor heat exchanger temperature become lower, dew form prevention control start to prevention dew form at indoor discharge
grille.
• When indoor pipe temperature decrease, the cooling capacity will be reduced and the louver angle will be fixed at certain angle.
9.7.7. Freeze Prevention Control
• After compressor starts operation for 4 minutes, the outdoor unit will stop its operation if indoor pipe temperature falls below
0ºC for 6 minutes.
• After 3 minutes stops, compressor restarts operation if indoor pipe temperature is 6ºC or more.
• This phenomenon is to protect the indoor heat exchanger from freezing and to prevent higher volume of refrigerant in liquid
from returning to the compressor.
9.7.8. Deice Control
• During heating operation at outdoor low outdoor temperature, deice operation start timely to melt the ice formed on outdoor
heat exchanger.
• During deice operation, in spite of any changes of remote control, indoor fan stop and louver angle fixed at upper side. (for
louver control: cassette and ceiling model only)
