-10-
5. Cut position

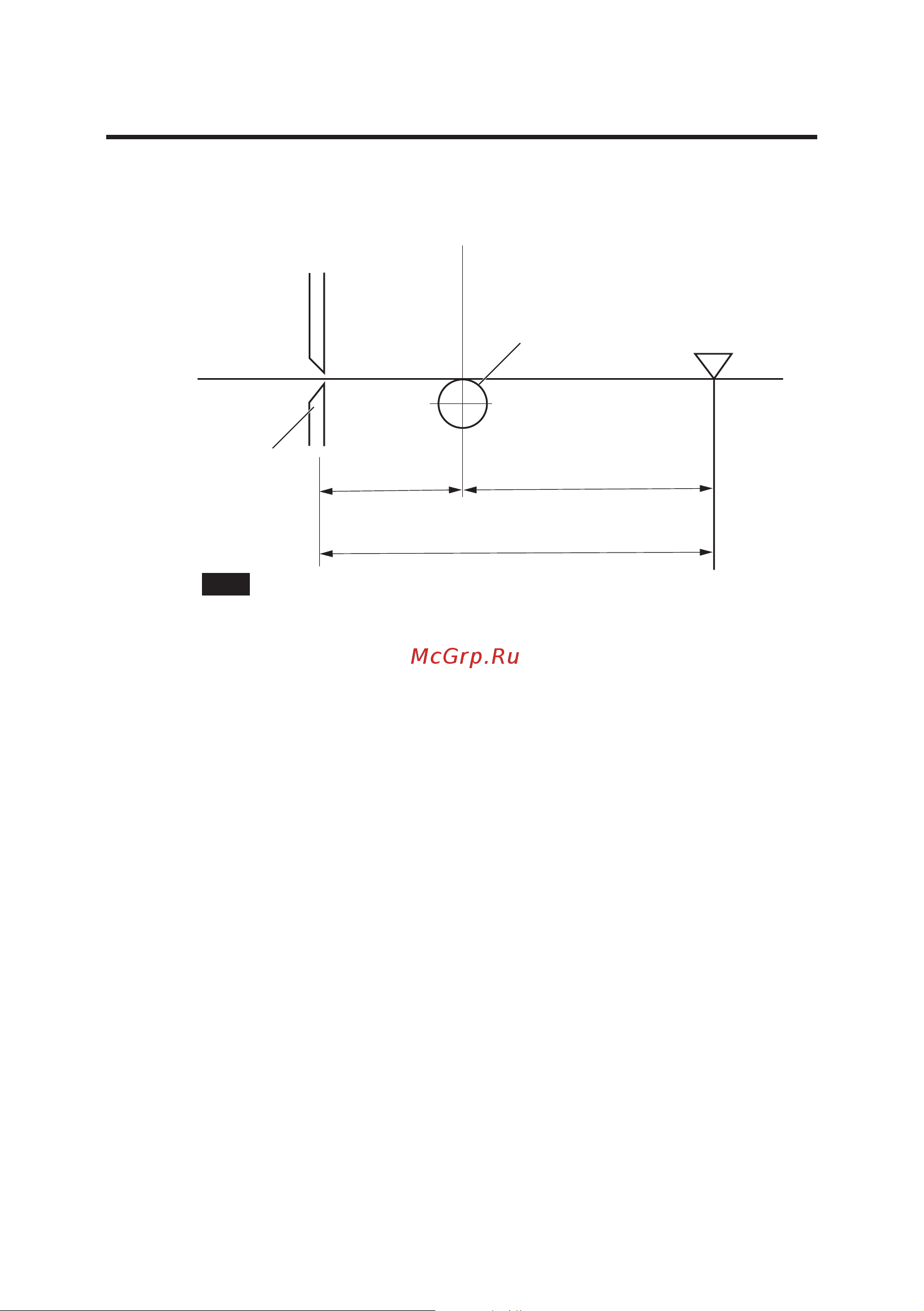

The following diagram gives the distance from the media sensor and the
thermal printhead to the cutter blade.
25.7 mm (1.01")*
24.0 mm (0.94")**
51.1 mm (2.01")*
49.4 mm (1.94")**
25.4 mm (1.00")
Platen
Media cut position
Cutter blade
Printhead position
Sensor position
Note
The measurements shown here are approximate.
* CL-S52X/53X/62X/63X/E720/E730/E720DT
** CL-S400DT
