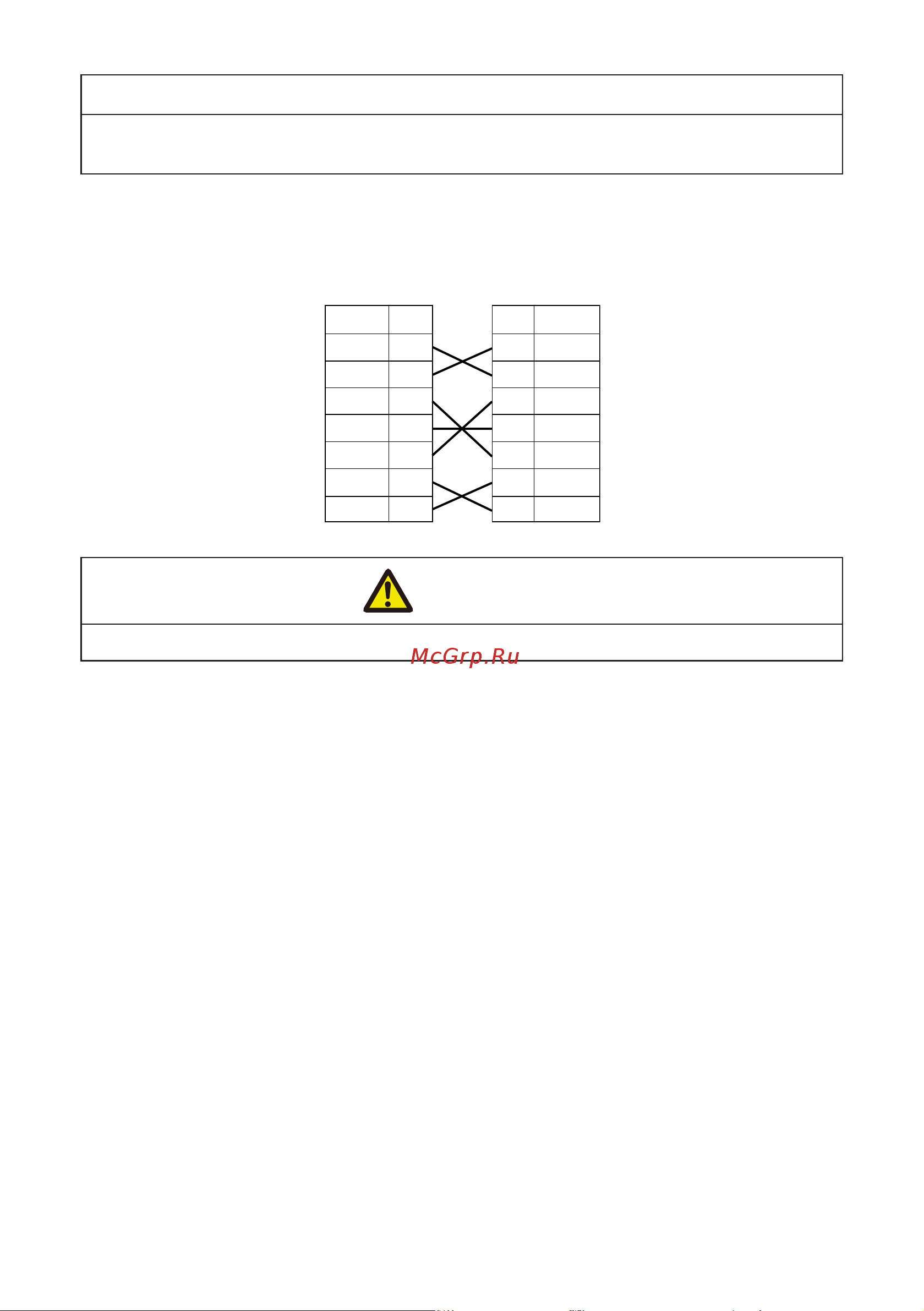

Citizen CT-E301 [31/58] Caution

Notes

To connect more than one printer to a single computer by USB, you must change the serial

number of the USB interface.

Use a serial cable with the connection layout shown below.

9-pin (female) - 9-pin (female) cable

PrinterPC

Signal Pin Pin Signal

RXD 2 2 RXD

TXD 3 3 TXD

DTR 4 4 DTR

SG 5 5 SG

DSR 6 6 DSR

RTS 7 7 RTS

CTS 8 8 CTS

CAUTION

Place the interface cable so that people do not trip on it.

– 31 –
