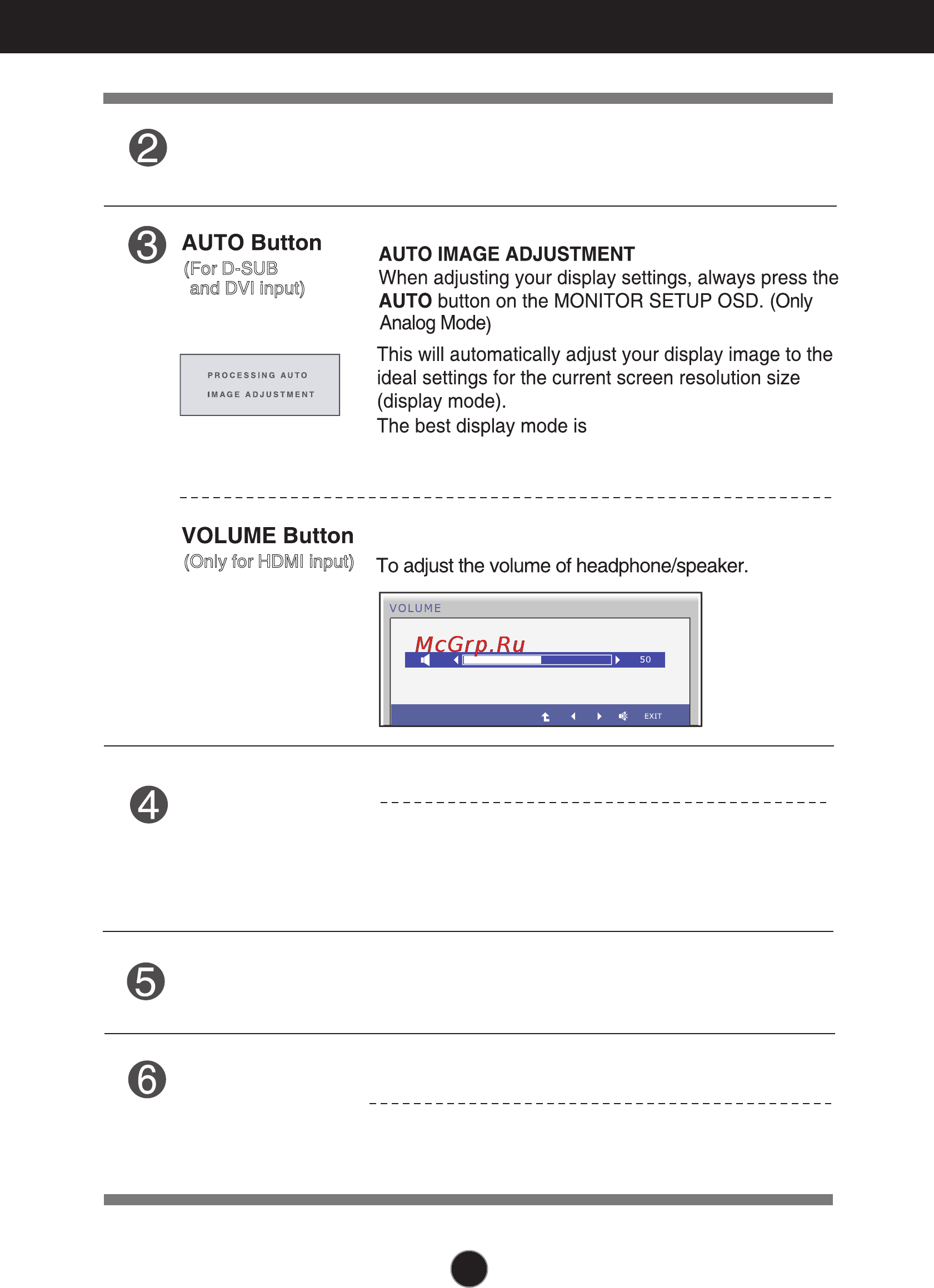

Control Panel Functions
INPUT Button
Use
this button to turn the display on or off.
The power indicator stays blue if the display is running
properly (On Mode). If the display is in Sleep Mode
blue.
Power Button &
Power Indicator
(SOURCE Hot key)
E
xit the OSD(On Screen Display).
EXIT Button
SUPER ENERGY
SAVING Button
Use this button to enter SUPER ENERGY SAVING
menus.For more information, refer to page 15 .
, t
he
power indicator is blink
ing
(For D-SUB
and DVI input)
(Only for HDMI input)
E2241V/E2341V/E2341VG/E2441V:1920 x 1080
When two input signals at least are connected, you can
select the input signal (D-SUB/DVI/HDMI) you want. When
only one signal is connected, it is automatically detected.
The default setting is D-Sub.
Use this button to select source from input.
