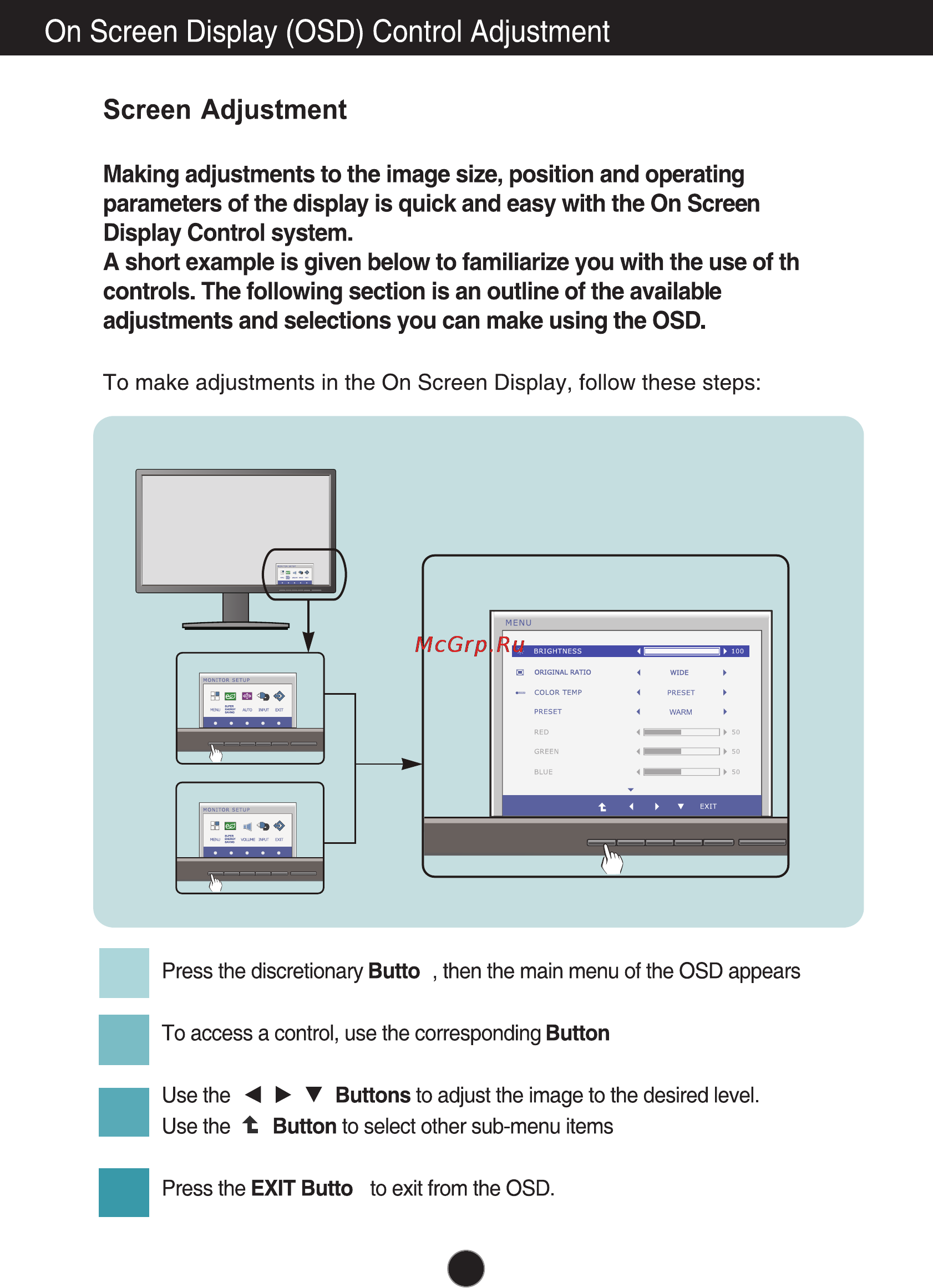

On Screen Display OSD Control Adjustment Screen Adjustment Making adjustments to the image size position and operating parameters of the display is quick and easy with the On Screen Display Control system A short example is given below to familiarize you with the use of the controls The following section is an outline of the available adjustments and selections you can make using the OSD To make adjustments in the On Screen Display follow these steps Press the discretionary Button then the main menu of the OSD appears 2 3 4 To access a control use the corresponding Buttons Use the Buttons to adjust the image to the desired level Use the t Button to select other sub menu items Press the EXIT Button to exit from the OSD
