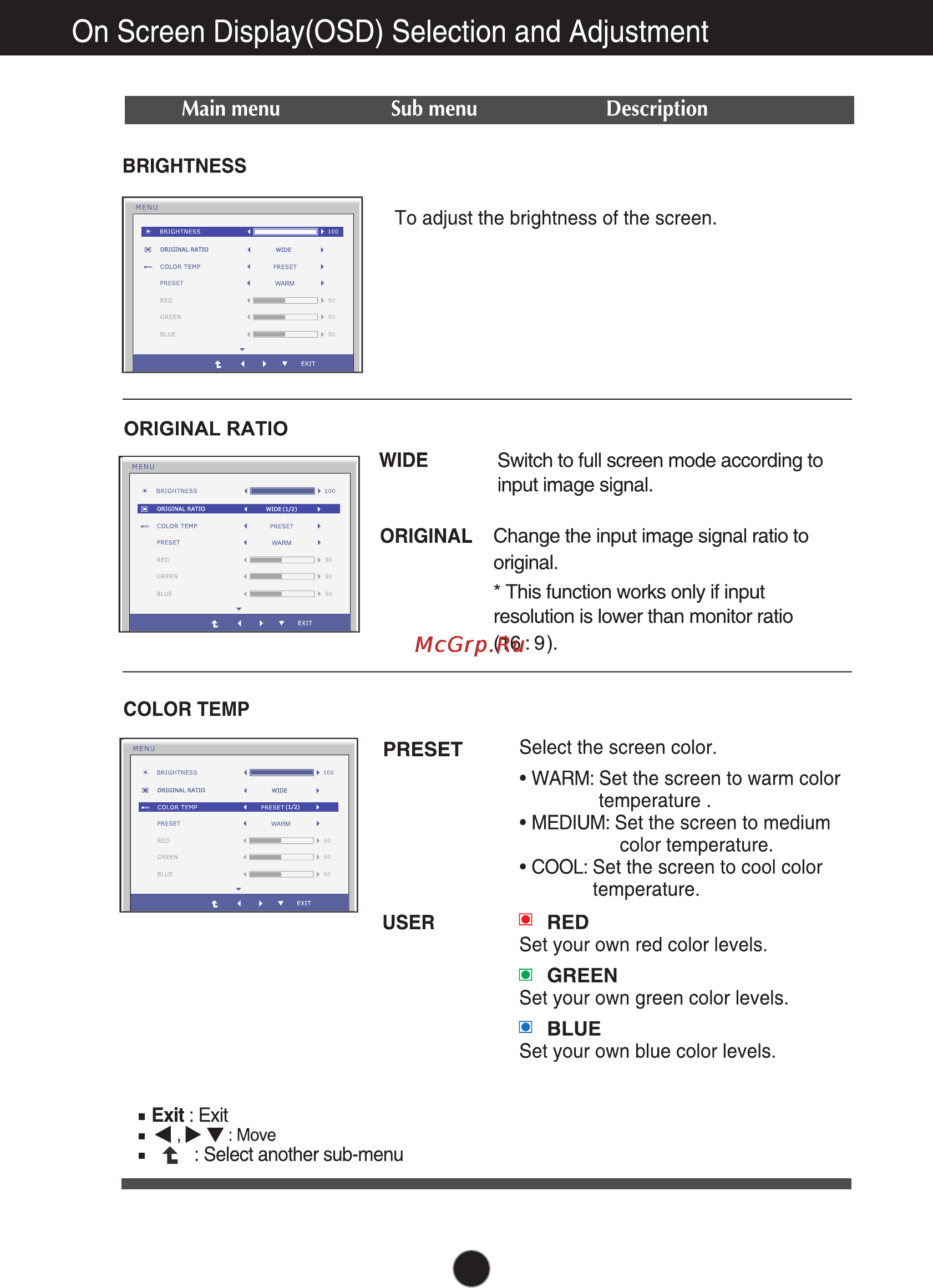

On Screen Display OSD Selection and Adjustment Main menu Description Sub menu BRIGHTNESS To adjust the brightness of the screen ORIGINAL RATIO WIDE Switch to full screen mode according to input image signal ORIGINAL Change the input image signal ratio to original This function works only if input resolution is lower than monitor ratio 16 9 COLOR TEMP PRESET Select the screen color WARM Set the screen to warm color temperature MEDIUM Set the screen to medium color temperature COOL Set the screen to cool color temperature USER RED Set your own red color levels ffl GREEN Set your own green color levels BLUE Set your own blue color levels Exit Exit Move t Select another sub menu
