Turning on/off and cleaning modes
1. Turning on/off
Press and hold the Power button, the Power button indicator is ON and the main unit enters
Standby mode. When the main unit is in Idle mode, press and hold the Power button, the indicator
slowly turns off and the cleaning cycle is done.
When the main unit is running, press any button to pause the appliance. Press the Power button
again to resume the cleaning cycle.
Press the Dock button, the main unit automatically docks and the cleaning cycle will end. Press
the Spot button to clean a localized area.
2. Charging
When a cleaning cycle is complete, th
e main unit automatically docks and charges itself. If an
error occurs, resolve the problem and press the Dock button after troubleshooting, the main unit
automatically docks.
When the main unit is charging, the Power button indicator is always ON; when fully charged, the
indicator breathes (breathe = dim and brighten at a certain rate).
If a cleaning cycle does not start from the charging dock or dust collector, the robot may fail to
dock. When the cleaning cycle is complete, the main unit automatically returns to where it started.
To return it to the charging dock or the dust collector, press the Dock button.
3. Clean mode
After the main unit is
turned on, it scans and intelligently maps out a series of areas. Then it
cleans along the wall and then in small arcs until the area is complete. When the cleaning cycle is
complete, the main unit automatically returns to the charging dock or the dust collector.

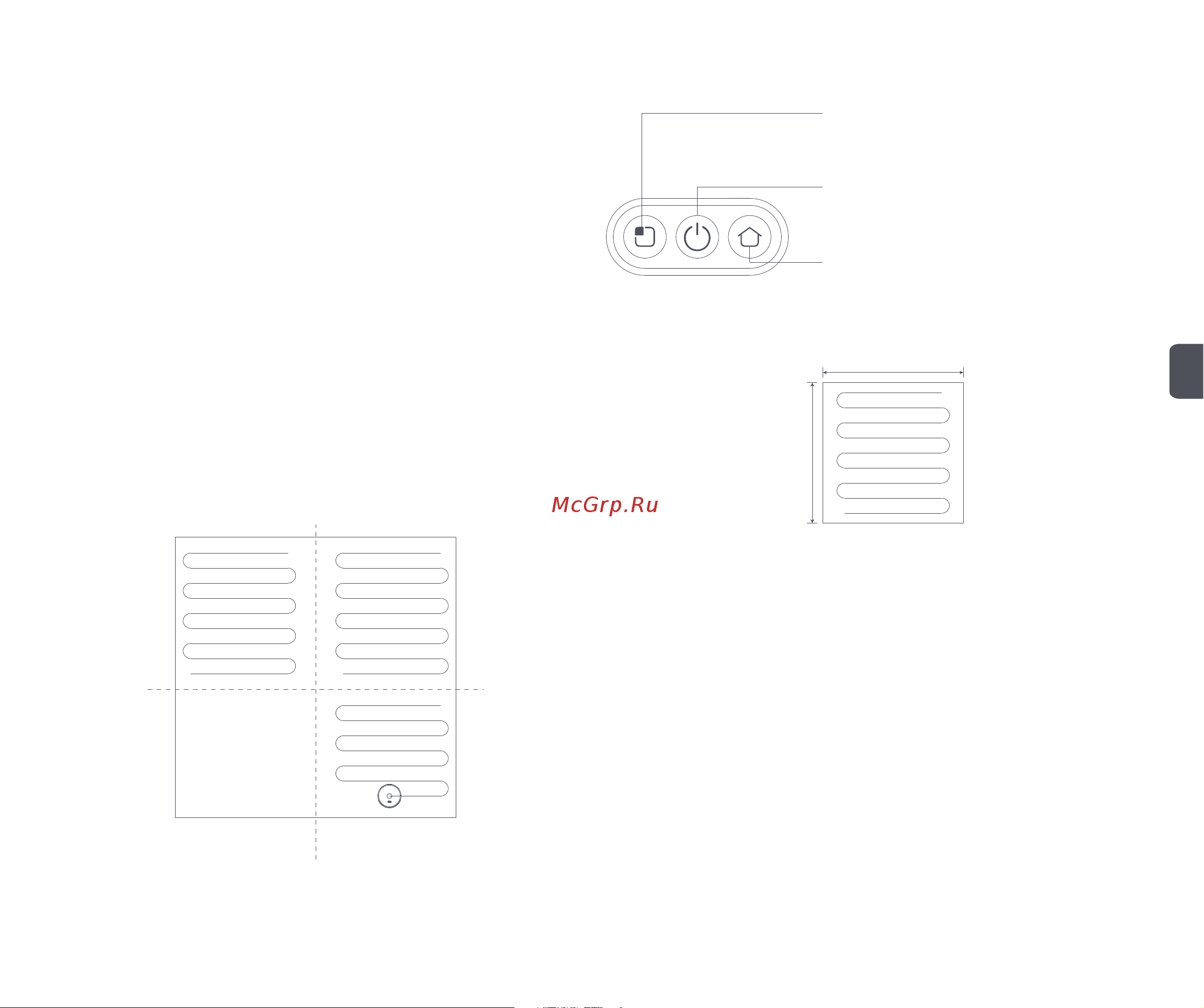

Press the Power button to start a cleaning cycle. The cleaning path is as shown in the figure below.
Press any button to pause the cleaning.
Area 1 Area 2
Area 4 Area 3
Spot button
• Short press to clean a localized area. The robot automatically docks
after cleaning.
• Short press while operating to pause
Power button
• Short press to start a cleaning cycle. The robot automatically docks
after cleaning.
• Press and hold to turn the robot on or off
• Short press while operating to pause
Dock button
• Short press to dock
4. Cleaning a localized area
When the main unit is in Standby mode or paused, press the Spot button to start cleaning a localized
area. The cleaning area is a 1.6 m x 1.6 m square centered on the main unit. After cleaning, the main
unit automatically docks.
1.6 m
1.6 m
Cleaning a localized area
5. Room mode
If a room has been set in map management, select the room and press the Spot button to clean it. If
not set, firstly set the room boundaries on the APP.
6. Adding water or cleaning the mop while operating
In Operating mode, to add water or clean the mop, press the Power button to pause the main unit,
remove the dust box + water tank (2 in 1) and the mopping module. When finished, reinstall them back,
and press the Power button to resume the cleaning cycle.
7. Error symptom
When an error occurs while the main unit is operating, the Power button indicator flashes quickly
and a voice prompt will be heard. Refer to the “Troubl
eshooting” section in this manual to resolve the
problem.
8. Sleep mode
After 20 minutes of no operation, the main unit automatically enters Sleep mode. Press any key to
wake it up.
9. WiFi reset
When resetting the password or when your phone is unable to connect to the main unit for other
reasons, reset the WiFi according to the instructions in “APP downloads” section of this manual.
10. Automatic dust collection (only applicable to robot vacuum and mop cleaner supplied with a dust
collector)
When a cleaning cycle is complete, the robot automatically returns to the dust collector for charging
and dust collection.
11. Reset button
When the button does not respond or cannot be turned on, please t
ry to reset the system; after reset,
the timing cleaning setting and cleaning mode setting of the host will be cleared. Set WiFi.
