OSD MENU

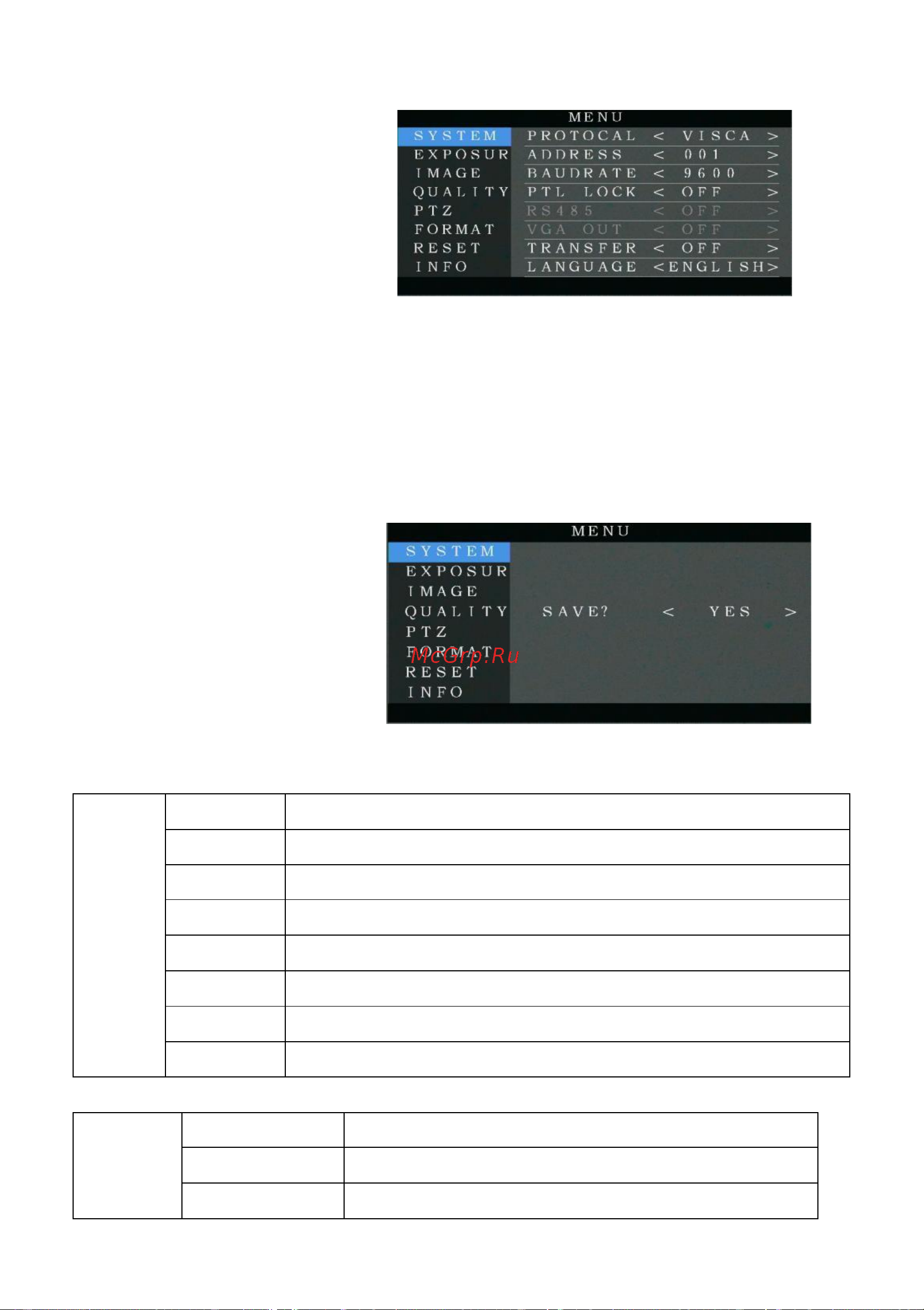

1. Under working mode, press the MENU

key on the IR remote controller, to enter the

OSD menu as bellow:

2. After enter the main menu, use the

navigate UP/DOWN key to select the main menu. Once been selected, the main menu will change to blue

background, and the right side will show all sub menu options .

3. Press the navigate RIGHT key to enter sub menu; use UP/DONW key to select the sub menu;use LEFT/RIGHT

key to select parameter.

4. Press the MENU key again to return to previous menu. Press the MENU key continuously to exit the OSD

menu. Before exiting, will show up a window to select whether need to save all settings(useLEFT/RIGHT key to

set). As bellow:

5. OSD Menu Setting List

SYSTEM

PROTOCOL

VISCA,PELCO-P,PELCO-D

ADDRESS

VISCA:1~7 PELCO-P/D:1~255

BAUD RATE

2400,4800,9600,115200

PTL LOCK

Protocol lock: once set, above protocol setting will be locked, to avoid changes

RS485

RS485 ON/OFF ( RS485 function is customized)

VGA OUT

VGA output can be YPbPr or VGA output (customized)

TRANSFER

IR Transfer/IR Pass function

LANGUAGE

Chinese, English, Spanish, Russian

EXPOSURE

EXPOSURE MODE

AUTO、MANUAL、BRIGHT

SHUTTER

Shutter speed:1/8~1/10000, only valid under manual mode

IRIS

Iris setting:CLOSE~F1.8, only valid under manual mode
