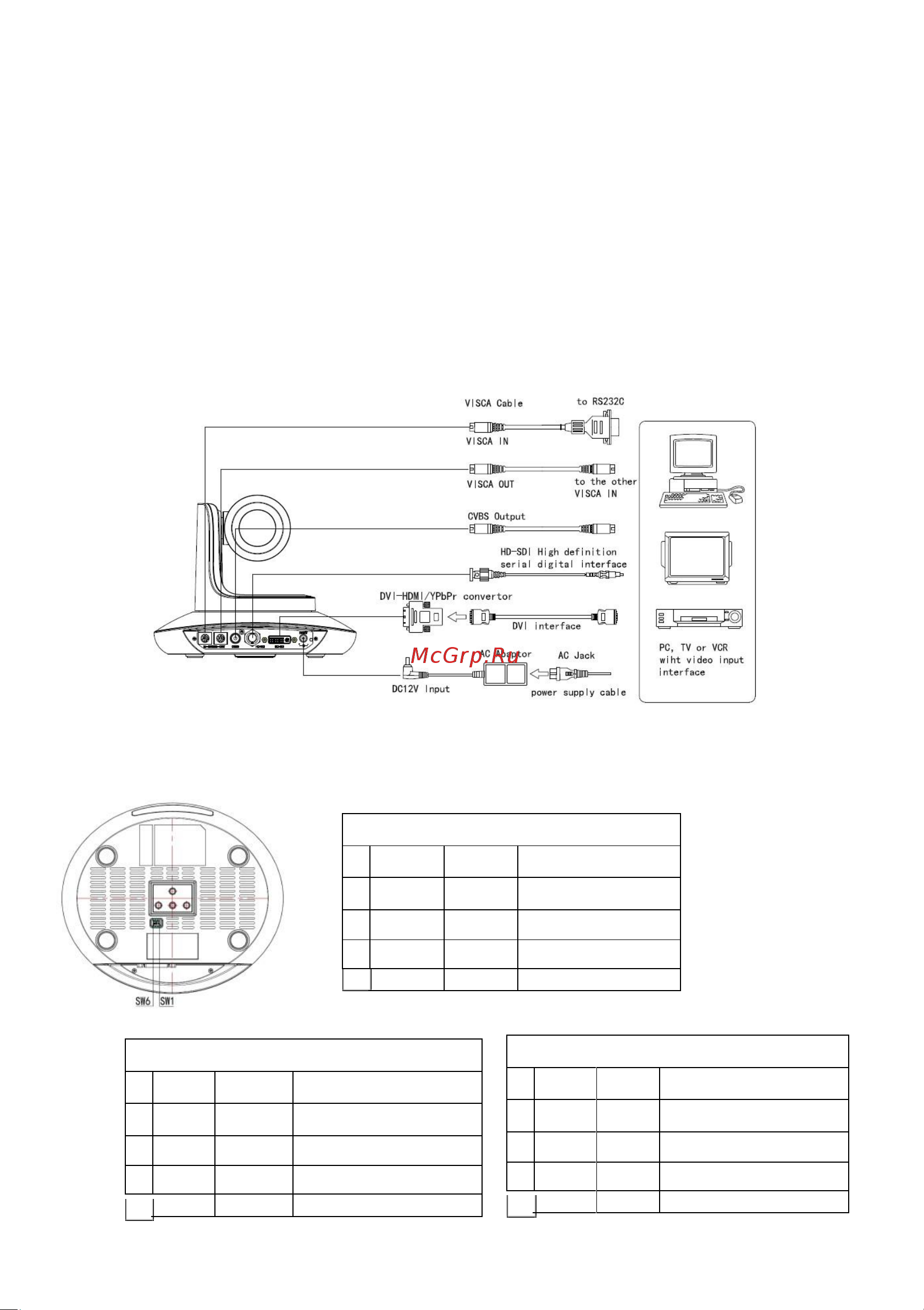

ACCESSORIES
Check all bellow items when open the package:
Camera ··········································································· 1
Power Adapter ································ ······························· 1
Power Cable ···································································· 1
RS232 Control Cable ································ ······················· 1
Remote Controller ································ ··························· 1
User Manual ···································································· 1
Double-sided Adhesive ································ ····················· 1
QUICK START
1. Check all cable connections before power on.
2. Dial Switch Setting (at the bottom of the camera):
Dial Switch（ARM）
SW-1
SW-2
Instruction
1
OFF
OFF
Updating mode
2
ON
OFF
Debugging mode
3
OFF
ON
Undefined
4
ON
ON
Working mode
Dial Switch（IR CODE TYPE）
SW-3
SW-4
Instruction
1
OFF
OFF
Off(Close IR receiver)
2
ON
OFF
Undefined
3
OFF
ON
SEJIN 4PPM CODE
4
ON
ON
NEC CODE(standard)
Dial Switch（IR CODE TYPE）
SW-5
SW-6
Instruction
1
OFF
OFF
Undefined
2
ON
OFF
Working mode
3
OFF
ON
Updating mode
4
ON
ON
Undefined
