ECO16TOUCH COMBINATION THERMOSTAT

INSTALLATION AND OPERATING INSTRUCTION

ECO16TOUCH electronic combination thermostat is mounted as the cover of a 1-component mounting

box or as a part of a multiple-component instrument panel. The thermostat is suitable for use with Elko

range of accessories.

1. SAFETY INSTRUCTIONS

• Installation must only be carried out by an electrician with the appropriate qualications.

• Read the installation instructions carefully before starting the installation work.

• The instruction manual must be stored in a safe location and be available for future installation and

service.

2. CONNECTION

See the wiring diagram on page 40.

Disconnect the power supply before carrying out any installation or maintenance work on this

thermostat and associated components.

2.1. A residual current switch according to local regulations must be used in installations.

3. BEFORE INSTALLATION

3.1. Check that all the parts and tools needed for the installation are available. This package contains a

thermostat, a cover, a frame, an additional connector for earthing wires (PE), a sensor cable and this instal-

lation instruction.

3.2. Check that the heating load is equivalent to the thermostat power rating.

3.3. Check the insulation resistance and the circuit resistance of the heating load controlled by the ther-

mostat. For more information, please see the heating load instructions.

4. INSTALLATION

4.1. Place the sensor cable in a dry protective tube between heating cables (oor heating solutions).

NOTE! Make sure that there is not water in the protective tube.

4.2. Connect the earthing wires (PE) to the separate connector.

4.3. Install the thermostat in the mounting box with a screw on each of sides, see the gure below.

ENG

(1)

(2)

(3)

(4)

(5)

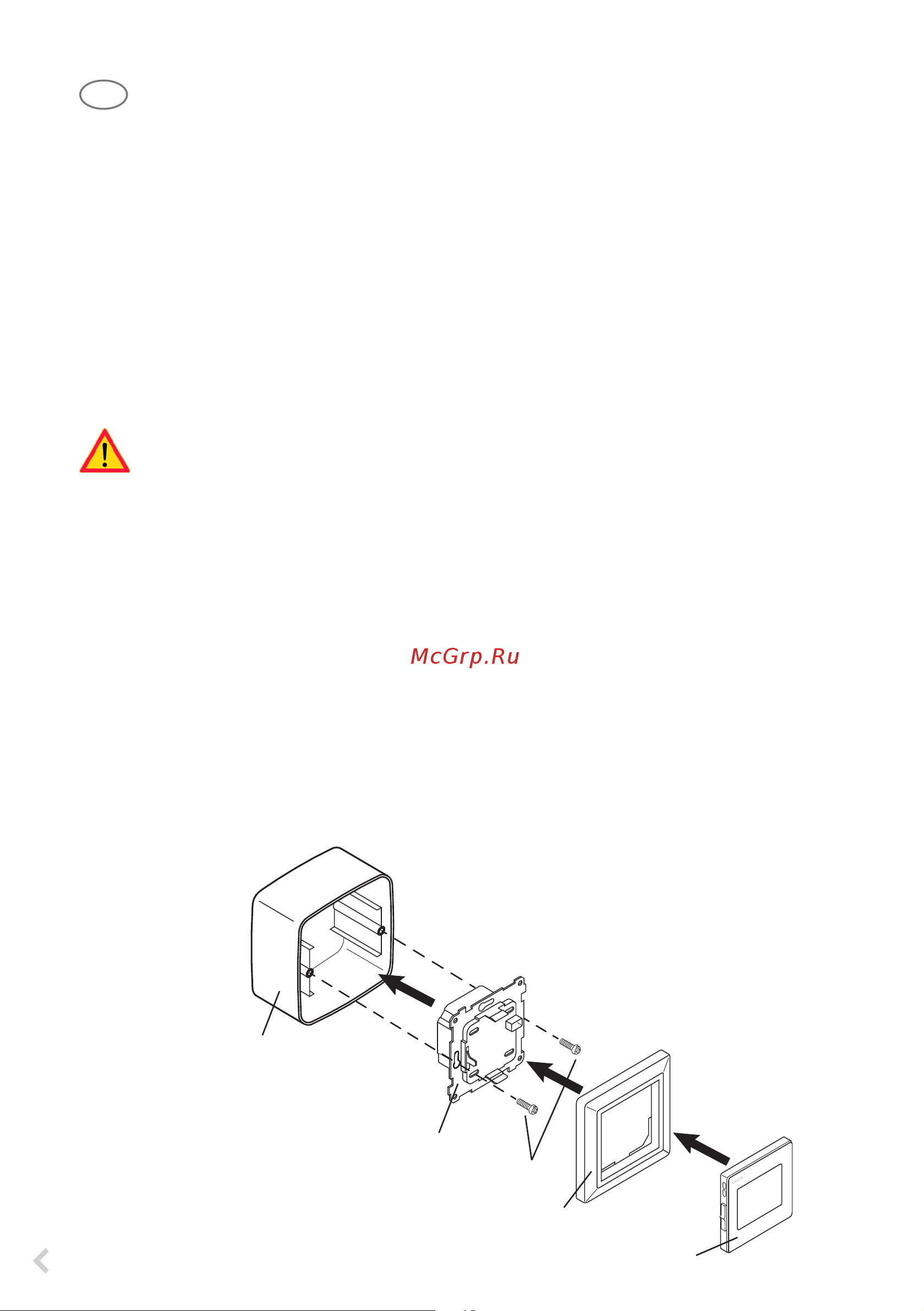

Assembling thermostat:

(1) Mounting box

(2) Thermostat

(3) Screws

(4) Frame

(5) Cover
