9
ENGLISH
(Original instructions)

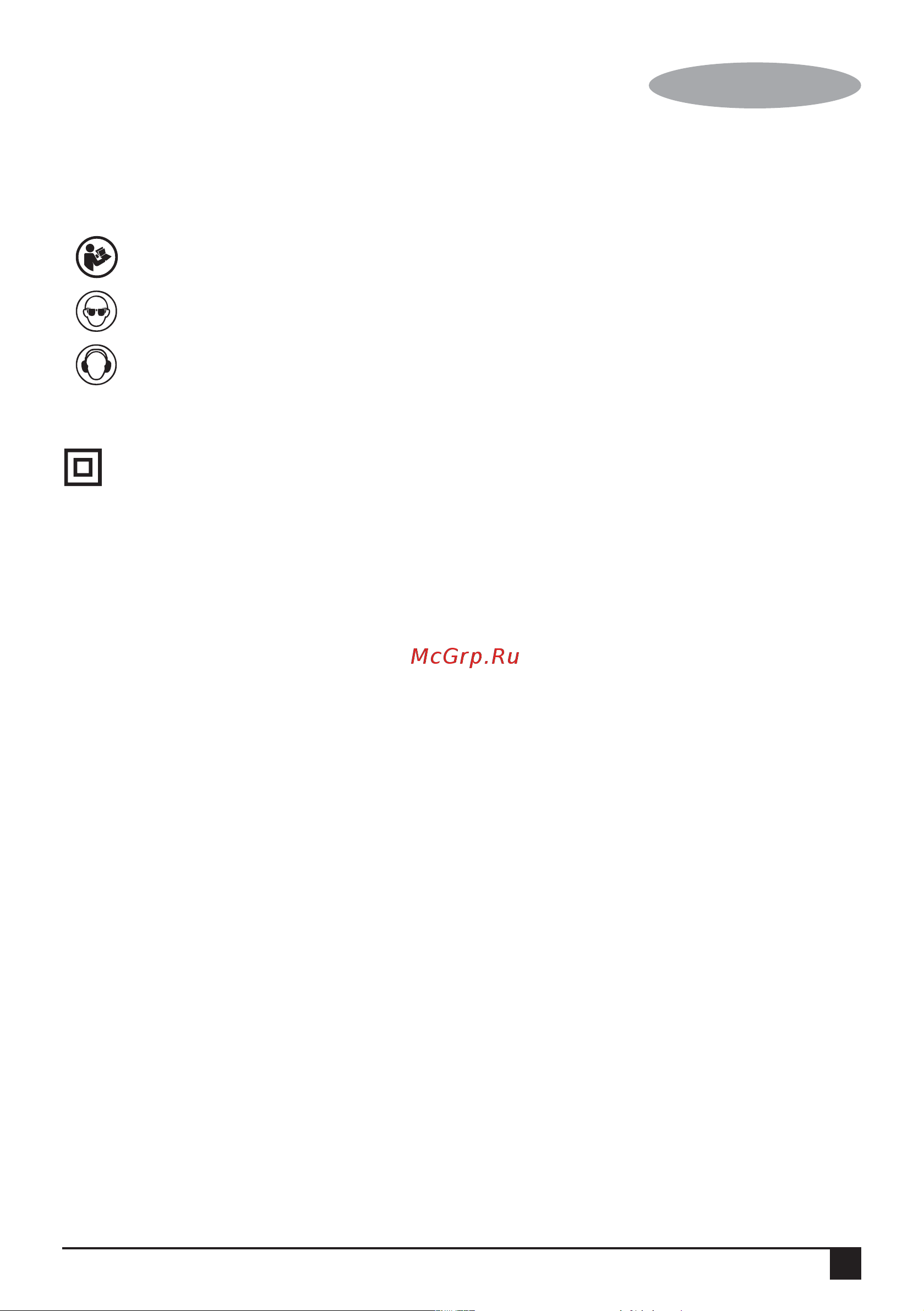

Labels on tool
The following pictograms are shown on the
tool:
Warning! To reduce the risk of
injury, the user must read the
instruction manual.
Wear safety glasses or goggles
when operating this tool.
Wear ear protection when operating
this tool.
Electrical safety
This tool is double insulated;
therefore no earth wire is required.
Always check that the power supply
corresponds to the voltage on the
rating plate.
• If the supply cord is damaged, it must be
replaced by the manufacturer or an
authorised BLACK+DECKER Service
Centre in order to avoid a hazard.
Features (Fig. A)
1. Slider switch
2. Cable
3. Tool free guard
4. Body grip
5. Side handle (2 positions)
6. Spindle lock button
Operation
Operating your angle grinder (Fig. A)
To switch on, push the slider switch forward
(1). To switch o, press the rear of the slider
switch.
Fittingthe discs (Fig. B and C)
Proceed as follows:
• Disconnect the plug from the electricity
supply.
• Ensure the guard is fitted. Place the inner
flange (7) on the spindle. Ensure it is
located on the two flats.
• Place the abrasive disc on the spindle and
inner flange (8). Ensure it is correctly
located.
• Fit the threaded outer flange (9), making
sure it is facing in the correct direction for
the type of disc fitted. For grinding discs,
the flange (9) is fitted with the raised
portion facing towards the disc. For
cutting discs, the flange (9) is fitted with
the inner portion facing away from the
disc.
• Hold the spanner on the flats of the
spindle to prevent rotation of the disc
and tighten the outer flange with the
spanner provided.
• Press in the spindle lock button and
rotate the spindle until it locks (Fig. C).
Keeping the lock button pressed in,
tighten the outer flange with the spanner
provided.
Fitting sanding discs (fig. D)
• Use a sanding disc with the backing pad
for sanding with your angle grinder.
• Disconnect the plug from the electricity
supply.
• Remove the guard.
• Place the flange on the spindle. Place the
backing pad on the spindle and inner
flange, ensuring it is correctly located.
• Mount the fibre backed abrasive disc on
the backing pad.
• Fit the threaded outer flange and tighten
as explained in ‘Fitting the discs’.
Handy hints (Fig. E)
Hold your angle grinder firmly with one hand
around the side handle and the other around
the body of your angle grinder.
• Always position the guard so that as
much of the exposed disc as possible is
pointing away from you.
• Be prepared for a stream of sparks when
the disc touches the metal.
