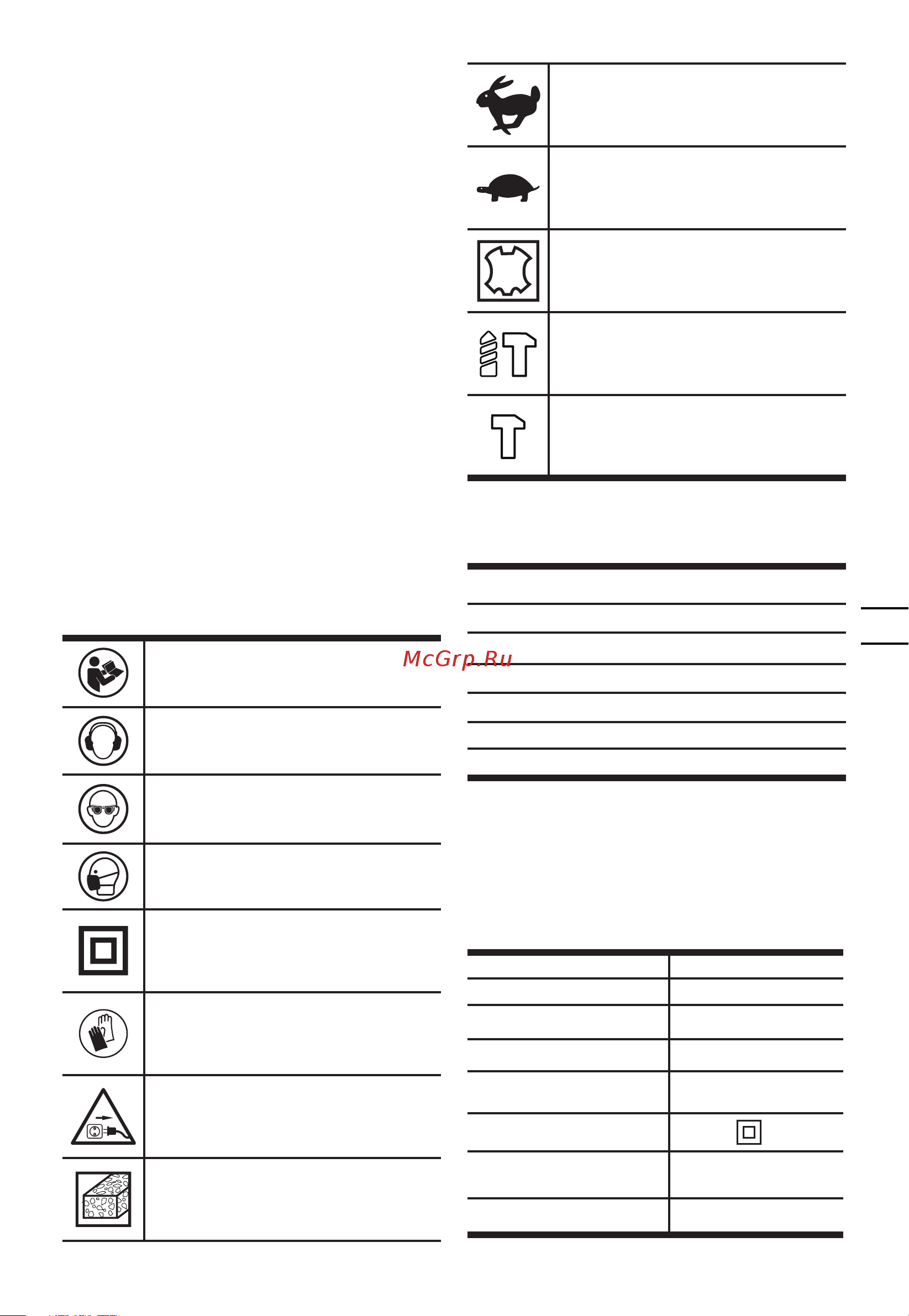

7
EN
5) Service
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
HAMMER SAFETY
WARNINGS
1. Wear ear protectors. Exposure to noise can
cause hearing loss.
2. Use auxiliary handle(s), if supplied with the
tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make
exposed metal parts of the power tool “live” and
could give the operator an electric shock.
ADDITIONAL SAFETY
RULES FOR HAMMER
1. Always wear a dust mask.
SYMBOL
To reduce the risk of injury, user must
read instruction manual
Wear ear protection
Wear eye protection
Wear dust mask
Double insulation
Wear protective gloves
Before any work on the machine itself,
pull the power plug from the outlet.
Concrete
High speed
Low speed
Tool Holder
Drilling
Chiseling
COMPONENT LIST
1.
CHUCK
2.
DEPTH GAUGE
3.
FUNCTION MODE SELECTION SWITCH
4.
GREASE BOX COVER
5. ANTI-VIBRATION HANDLE
6. ON / OFF SWITCH
7. AUXILIARY HANDLE
* Not all the accessories illustrated or described
are included in standard delivery.
TECHNICAL DATA
Type KU334 (3-designation of machinery,
representative of Rotary Hammer drill)
Voltage 220V~50Hz
Power input 1050 W
No load speed 0-580/min
Impact rate 3950/min
Impact energy 7.5J
Protection class
/ll
Drilling capacity max.
(Concrete)
38 mm
Machine weight
5.3 kg
