Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The product may only be used for bathing, hygienic
and body cleaning purposes.
The hot and cold supplies must be of equal pres-
sures.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be observed.
• The drain valve must only be used as intended. It is not
allowed to attach other objects to the drain valve, for
example a semi-pedestal.
• If the instantaneous water heater causes problems or
if you wish to increase the water flow, the EcoSmart
®
(flow limiter) located behind the aerator can be
removed.
Technical Data
This mixer series-produced with EcoSmart
®
(flow
limiter)
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 - 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Recommended hot water temp.: 60°C
Thermal disinfection: max. 70°C / 4 min
The product is exclusively designed for drinking water!
English
Cleaning (see page 39)
Operation (see page 35)
Hansgrohe recommends not to use as drink-
ing water the first half liter of water drawn
in the morning or after a prolonged period
of non-use.
After periods of prolonged non-use, but at
least every third day, the fittings must be
opened with the handle in hot and cold
position to prevent stagnation in the connect-
ing lines. Let the water run until the water
temperature is constant.
Spare parts (see page 36)
Dimensions (see page 38)
Adjustment (see page 34)
To adjust the hot water limiter. Using a hot
water limiter in combination with a continu-
ous flow water heater is not recommended.
special tool #58085000
(see page 31)
Installation putty (see page 32)
Do not use silicone containing acetic acid!

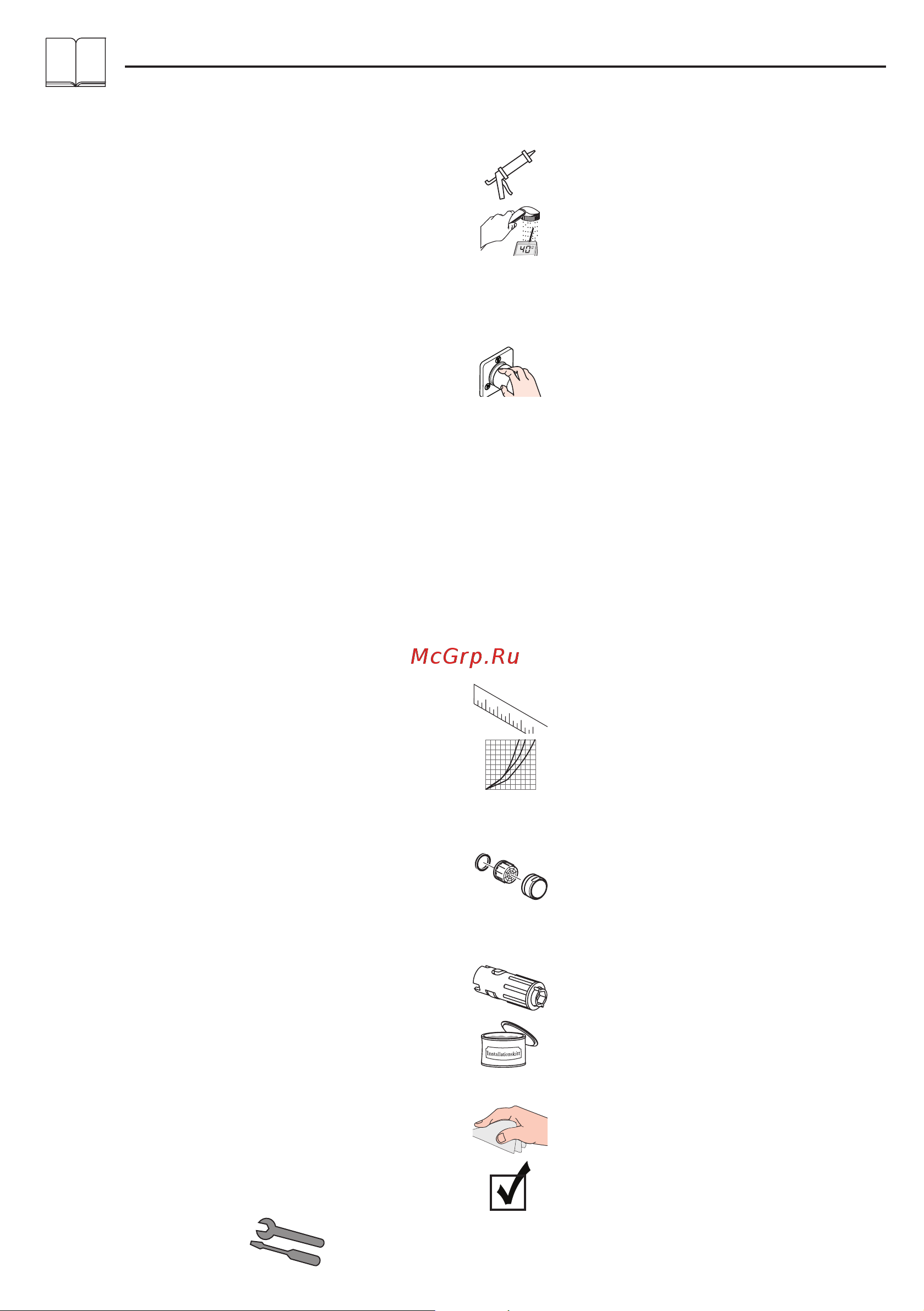

Symbol description
Flow diagram
(see page 38)
with EcoSmart
®
without EcoSmart
®
Special accessories (order as an
extra)
Test certificate (see page 40)
