VTS VENTUS PRO PVS PO 50 EC [6/16] Description of terminals
![VTS VENTUS PRO PVS PO 50 EC [6/16] Description of terminals](/views2/1893541/page6/bg6.png)
VTS reserves the right to implement changes without prior notice.
www.vtsgroup.com Page 6 of 16 ver. 2.0 (11.2021)

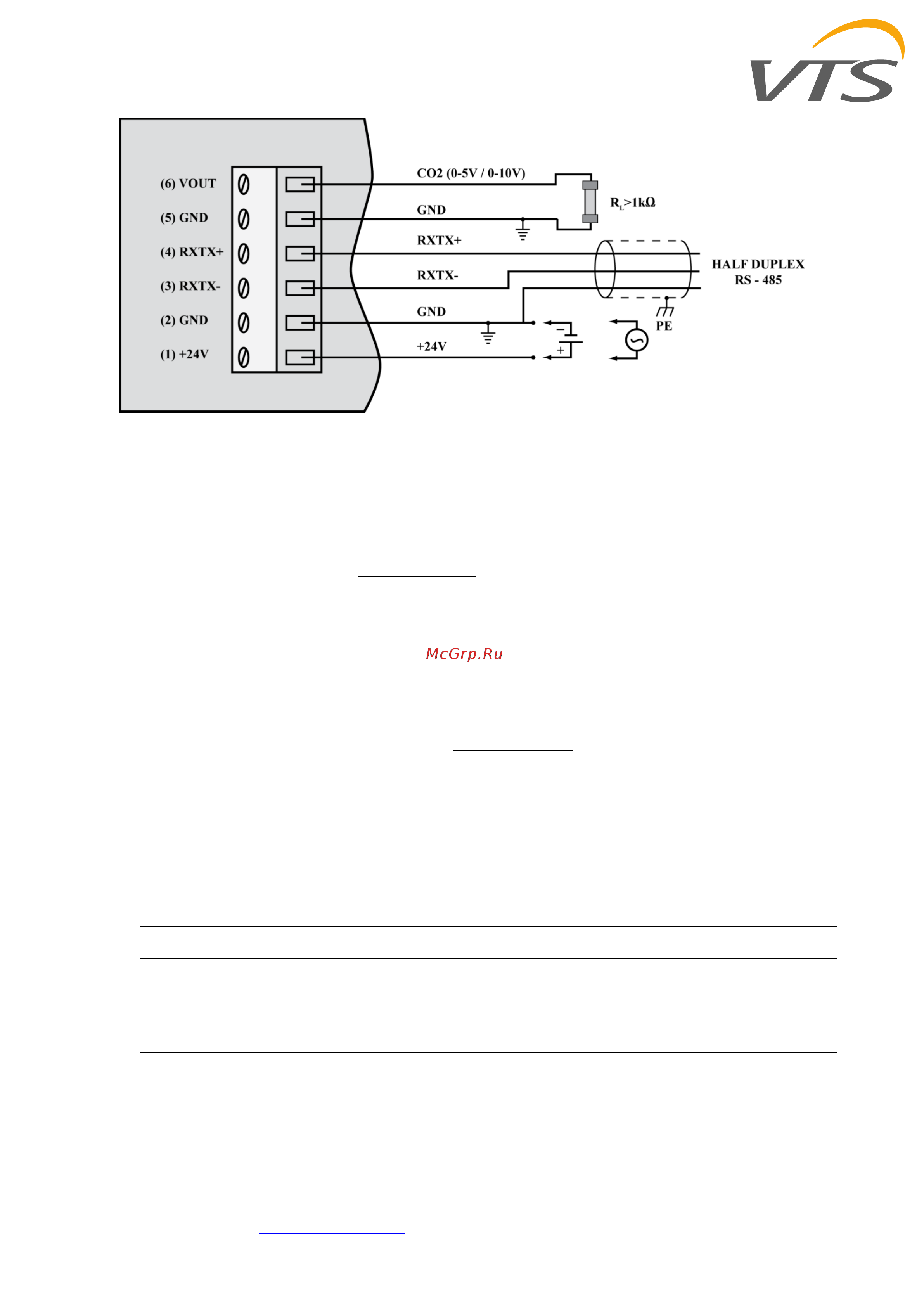

3.3. Description of terminals
Notes:
1. The RXTX+ and RXTX- signals must be connected to the A and B lines of the MODBUS bus
respectively.
2. The analogue output returns following voltage values:
IONCONCENTRAT
RANGE
out
CO
ppm
VOLTAGE
V 2
2000
whereas the concentration value can be calculated basing on the voltage value form using
the following formula:
OUT
RAN GE
IONCONCENTRAT
V
VOLTAGE
ppm
CO
2000
2
where:
VOLTAGERANGE = 5V or 10V (0-5V or 0-10V set on the configuration DIP-switch 2 –
see section 3.4)
Exemplary values are shown in the table below:
CO2 concentration [ppm]
Voltage range = 5 V
Voltage range = 10V
0
0.0V
0.0V
400
1.0V
2.0V
1000
2.5V
5.0V
2000
5.0V
10.0V
POWER SUPPLY
OR
