VTS VENTUS PRO PVS PO 50 EC [9/16] Recommendations for installation
![VTS VENTUS PRO PVS PO 50 EC [9/16] Recommendations for installation](/views2/1893541/page9/bg9.png)
VTS reserves the right to implement changes without prior notice.
www.vtsgroup.com Page 9 of 16 ver. 2.0 (11.2021)
3.6. Recommendations for installation

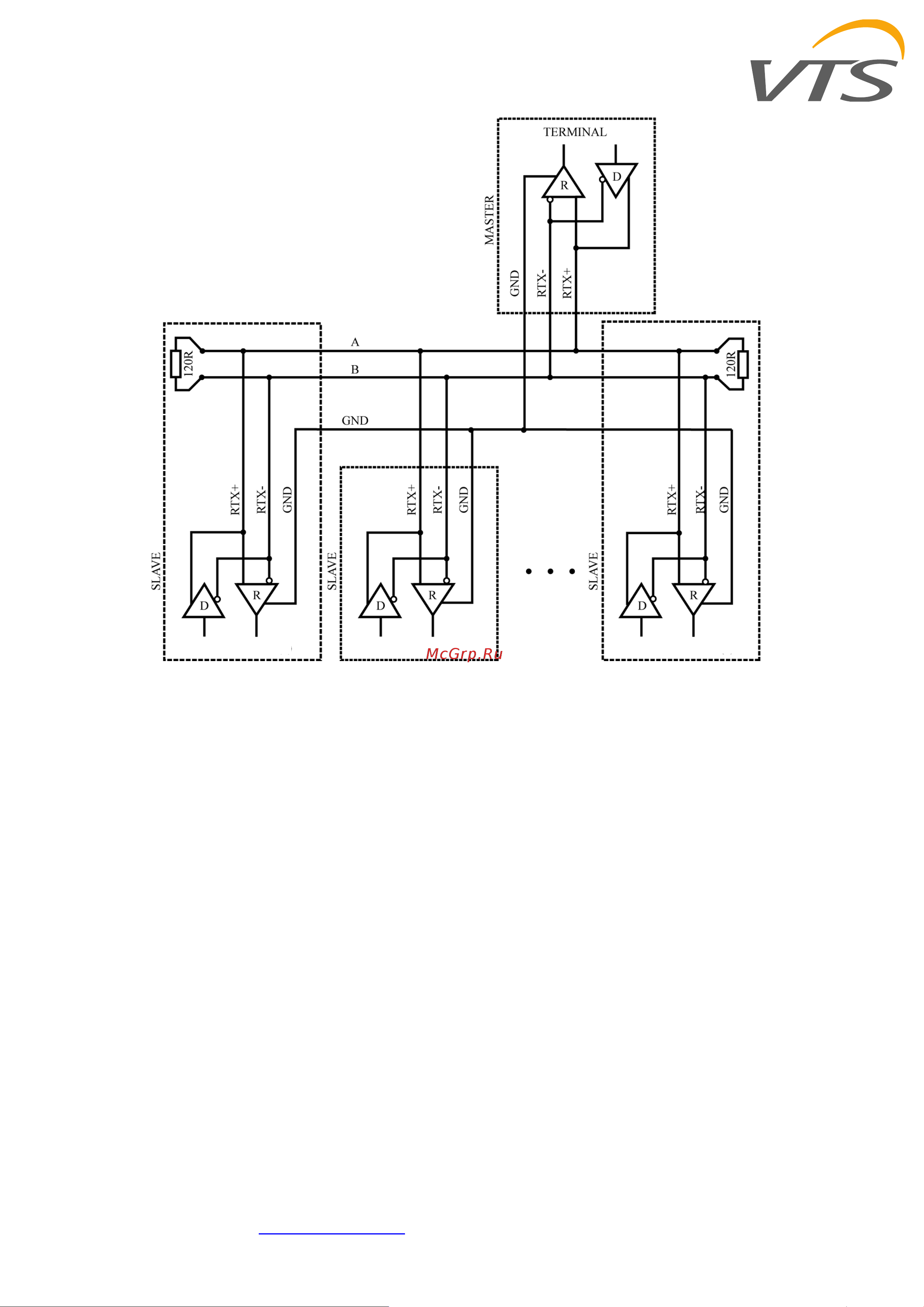

It is recommended that devices on the MODBUS (RS485) are connected in a daisy-chain
configuration, whereby 120R terminating resistors should be connected between A and B
lines of the bus at both ends of the chain (close to the outer devices). This resistor is built-
in in the CO2-SENS-D-MODBRTU transducer and can be switched on using the no. 1 switch
on the configuration DIP-switch (see section 3.4).
Moreover, shielded cables should be used when the device is operated in high interference
environments and the shield should be connected to the nearest PE point on the power
supply side.
3.7. The automatic zero calibration (ABClogic function)
It is assumed that CO2 concentration in the outdoor air amounts to 400 – 500 ppm. The
CO2 concentration inside buildings is higher, mainly due to the presence of people. When
there are no people in the building and the ventilation systems works properly, the CO2
concentration inside the building decreases to a level close to those of outdoor air.
TRANSDUCER (1)
TRANSDUCER (2)
TRANSDUCER (n)
