Page 5
Rev . 13 - 1 2/ 03 / 201 9
SL 350

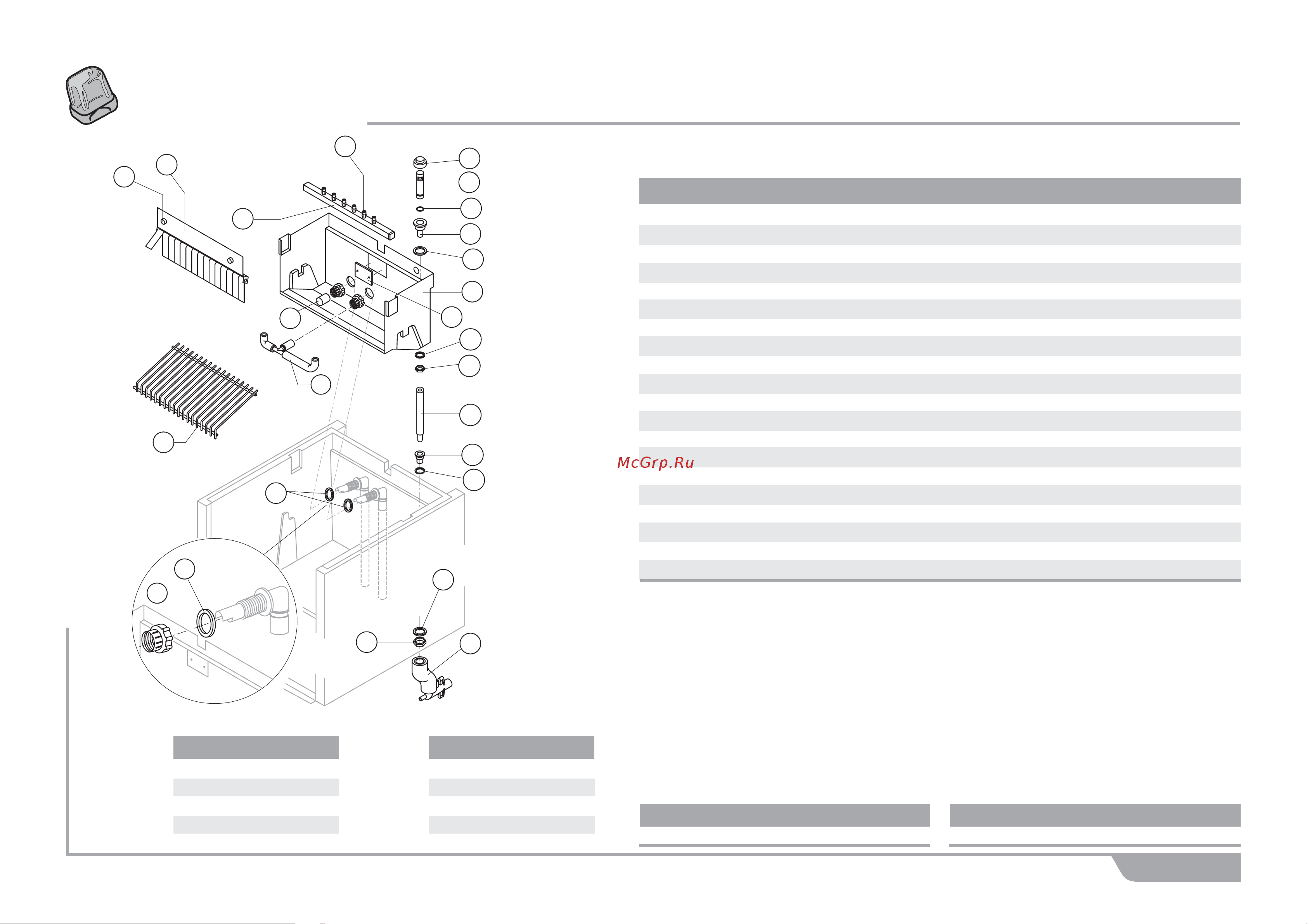

HYDRAULIC CIRCUIT
SL 350A / SL 350W
Ref.
Spare Description Code
Parts for Water Cooled Version Only
21 Discharges Manifold C26452
Ref.
Spare Description Code
Parts for Air Cooled Version Only
21 Discharges Manifold C10006
Common Parts
Ref. Spare Description Code
1 Ice Cube Slides See Table
3 Flags Support Assy C22134
4* Sprayers Bar Assembly See Table
5 Sprayer D20002
7* Overflow Cap 10305
8* Overflow Pipe 10133
9* OR Gasket for Overflow Pipe 20233
10 Overflow Pipe Nipple 10471
11 Silicone Gasket 13219
12 Inner Basin 10759
13 Semirigid Polyethylene Gasket 13007
14 Bin Discharge Nut 10096
15* Overflow Pipe Assembly 13155
17 Water Outlet Nipple 10472
18 Slide Keep Plate Till s/n. 233769 10009
19 Sprayers Bar Pipe Connection Assy C13036
20* Pump Suction Filter 20005
22 Fitting Locking Ring 10405
25 Gasket for Pump Suction/Delivery Pipes 13220
28 Fixing Screw 20009
Ref. 1 - Ice Cube Slide
18 g. (Standard) D12022
33 g. D12033
13 g. D12040
42 g. D12033
60 g. D12084
Kind of Cube Code
Ref. 4* - Sprayers Bar Ass.
18 g. (Standard) C20144
33 g. C20157
13 g. C20200
42 g. C20157
60 g. C20941
Kind of Cube Code
20
20
1
1
4
4
18
18
14
14
13
13
21
21
25
25
22
22
3
3
12
12
25
25
7
7
10
10
11
11
19
19
17
17
11
11
14
14
13
13
15
15
28
28
8
8
9
9
5
5
