Apach ACB155.65B (A) [6/7] Hydraulic circuit

Page 6

Rev . 13 - 1 2/ 03 / 201 9

SL 350

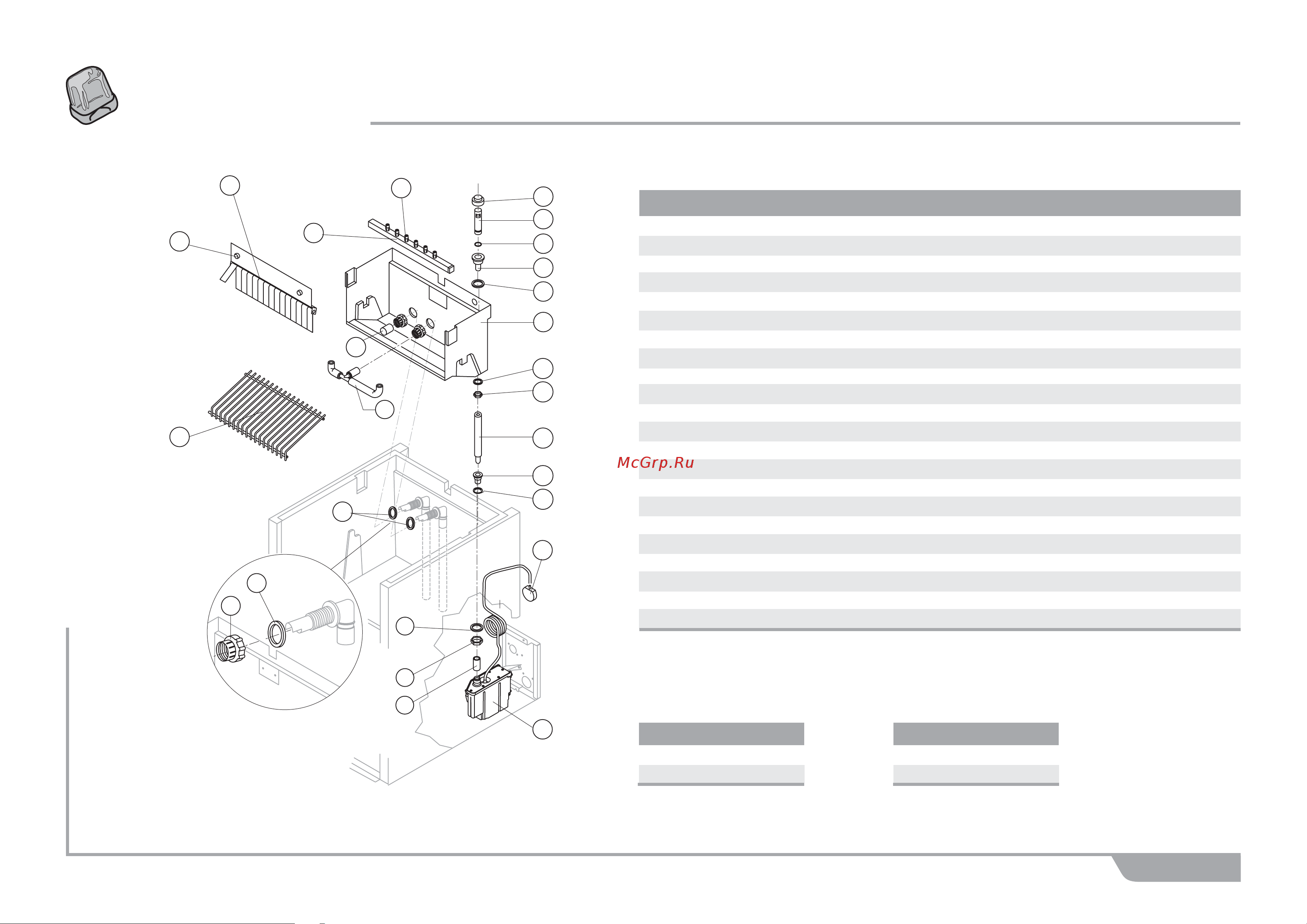

HYDRAULIC CIRCUIT

SL 350A DP

Ref. Spare Description Code

Common Parts

1* Sprayers Bar Assembly See Table

3 Sprayer D20002

4* Overflow Cap 10305

5* Overflow Pipe 10133

6* OR Gasket for Overflow Pipe 20233

7 Overflow Pipe Nipple 10471

8 Silicone Gasket 13219

9 Inner Basin 10759

10 Semirigid Polyethylene Gasket 13007

11 Bin Discharge Nut 10096

12* Overflow Pipe Assembly 13155

13 Water Outlet Nipple 10472

14 Drain Pump Pressure Switch C231230

15 Drain Pump RC231225

16 Bin Discharge-Drain Pump Connection C13175200

17 Fitting Locking Ring 10405

18 Gasket for Pump Suction/Delivery Pipes 13220

19 Ice Cubes Slide See Table

20 Flags Support Assy C22134

21 Fixing Screw 20009

22* Pump Suction Filter 20005

23 Sprayers Bar Pipe Connection Assy C13036

Ref. 19 - Ice Cube Slide

18 g. (Standard) D12022

13 g. D12040

Kind of Cube Code

Ref. 1 - Sprayers Bar Ass.

18 g. (Standard) C20144

13 g. C20200

Kind of Cube Code
