![Apach SQ SA20s [30/39] 85 divisions knife group cod tg000032](/img/pdf.png)
Apach SQ SA20s [30/39] 85 divisions knife group cod tg000032

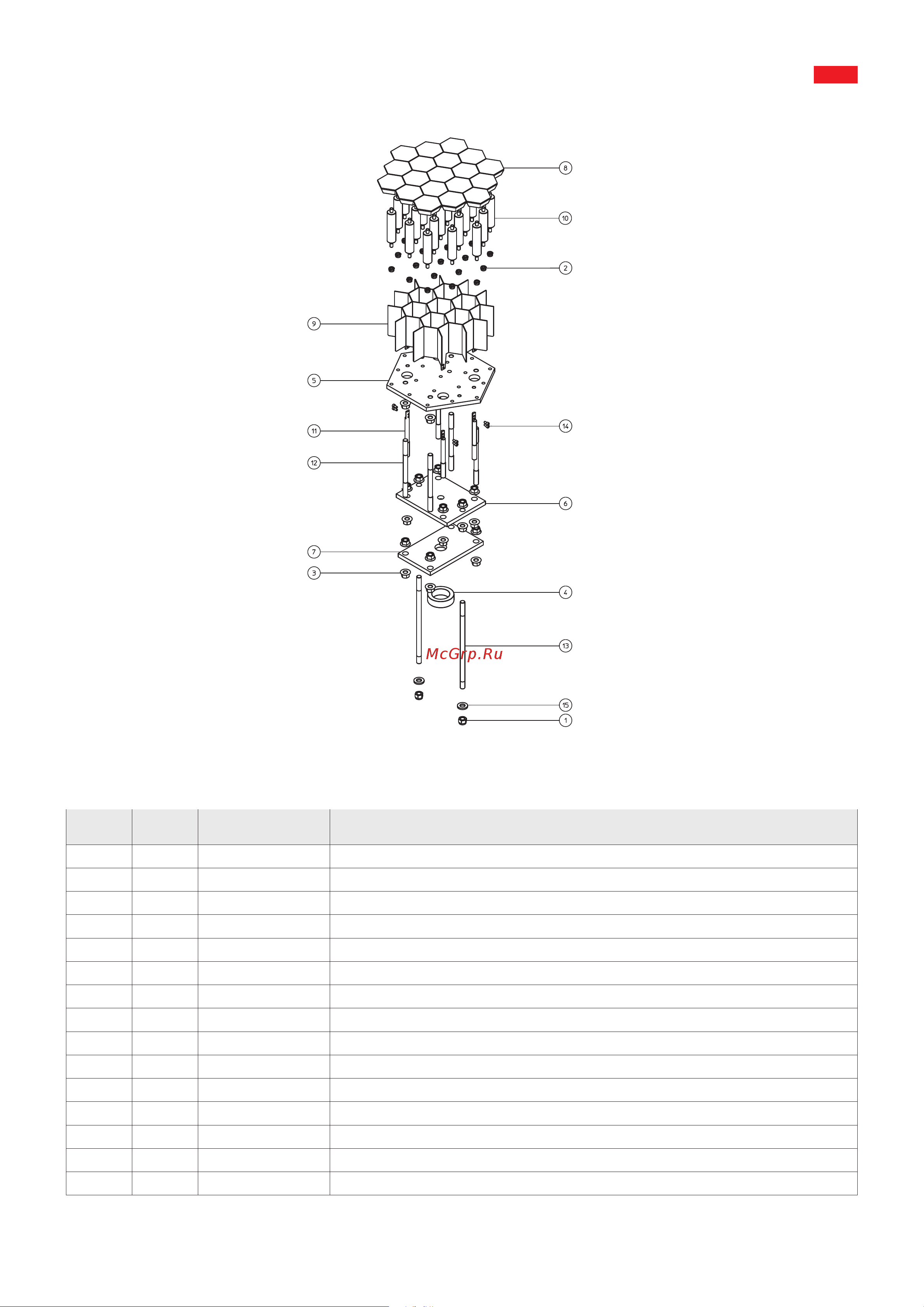

![Apach SQ SA20s [30/39] 85 divisions knife group cod tg000032](/views2/1897349/page30/bg1e.png)
33
POSITION QUANTITY CODE DESCRIPTION
1 2 30081601 SELFLOCKING NUT M16 ZINC.
2 19 30091001 NUT M10 ZINC.
3 24 30191601 NUT M16 ZINC.
4 1 30860007 CYLINDER RACING SPACER
5 1 49420149 PRESS SUPPORT PLATE
6 1 49420150 KNIFE SUPPORT PLATE
7 1 49420151 PRESS SUPPORT GUIDE ROD PLATE
8 19 52600040 PRESS PLATES AC85
9 1 60040159 KNIFE
10 19 62000005 PRESS PLATE SUPPORT
11 4 65810010 CUTTING KNIFE SUPPORT SHAFTS
12 4 65810011 PRESS SUPPORT PLATE GUIDE RODS
13 2 65810012 FIXED LIMIT ROD
14 8 69280612 SCREW TCEI M6X12 INOX
15 2 59091635 WASHER D.16X35 SP. 45 ZINC.
19/85 DIVISIONS KNIFE GROUP COD. TG000032
